Manifold block
CPE18-3/2-PRS-3/8-3-NPT
550620
GTIN 4052568094515
Vendor Festo
Regular price
$77.71
Unit price
CPE18-3/2-PRS-3/8-3-NPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPE18-3/2-PRS-3/8-3-NPT
Regular price
$77.71
Unit price
CPE18-3/2-PRS-3/8-3-NPT is backordered and will ship as soon as it is back in stock.

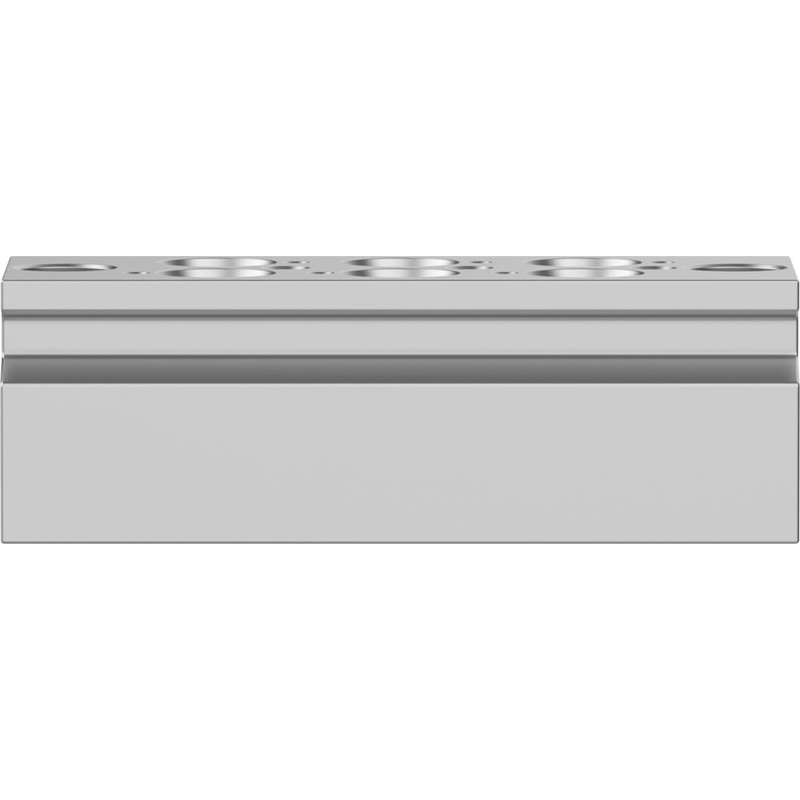

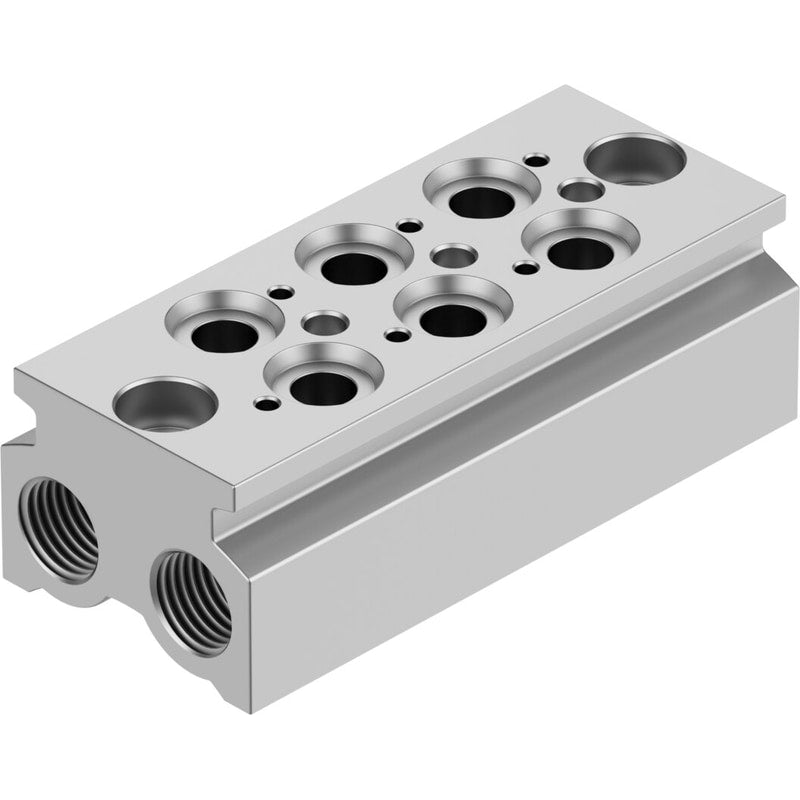

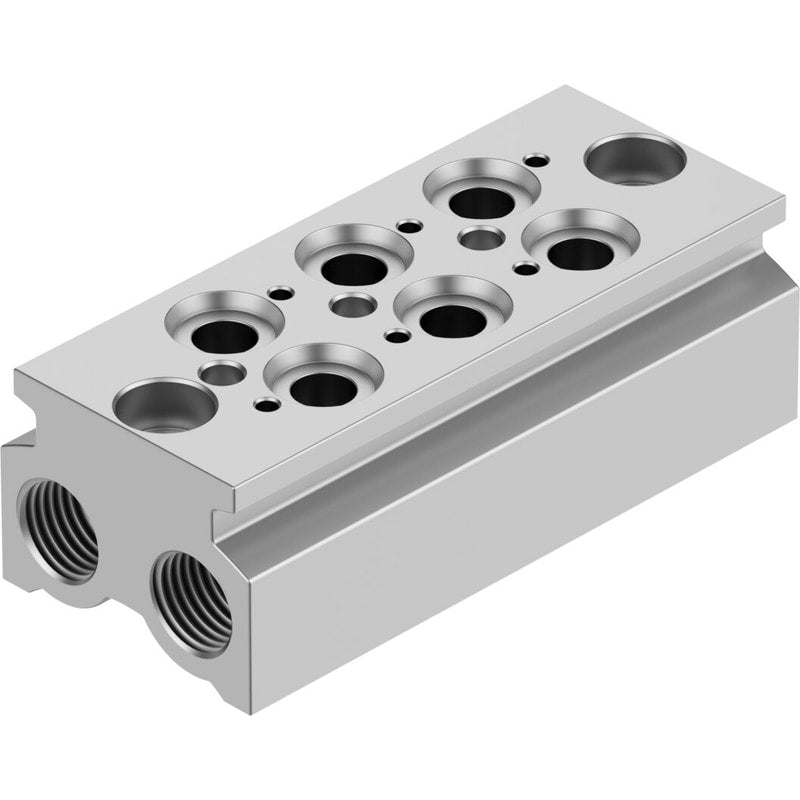

manifold block CPE18-3/2-PRS-3/8-3-NPT For CPE valves. Grid dimension=26 mm, Assembly position=Any, Max. number of valve positions=3, Max. no. of pressure zones=2, Operating pressure=-13 - 145 Psi
| Grid dimension | 26 mm |
|---|---|
| Assembly position | Any |
| Max. number of valve positions | 3 |
| Max. no. of pressure zones | 2 |
| Operating pressure | '-13 ... 145 Psi |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Medium temperature | 23 ... 122 °F |
| Ambient temperature | 23 ... 122 °F |
| Max. tightening torque, valve mounting | 1.5 ft-lbf |
| Product weight | 12.11 oz |
| Type of mounting in-line valve manifold | with through hole |
| Mounting method for valve | with internal (female) thread |
| Pneumatic connection, port 1 | NPT3/8-18 |
