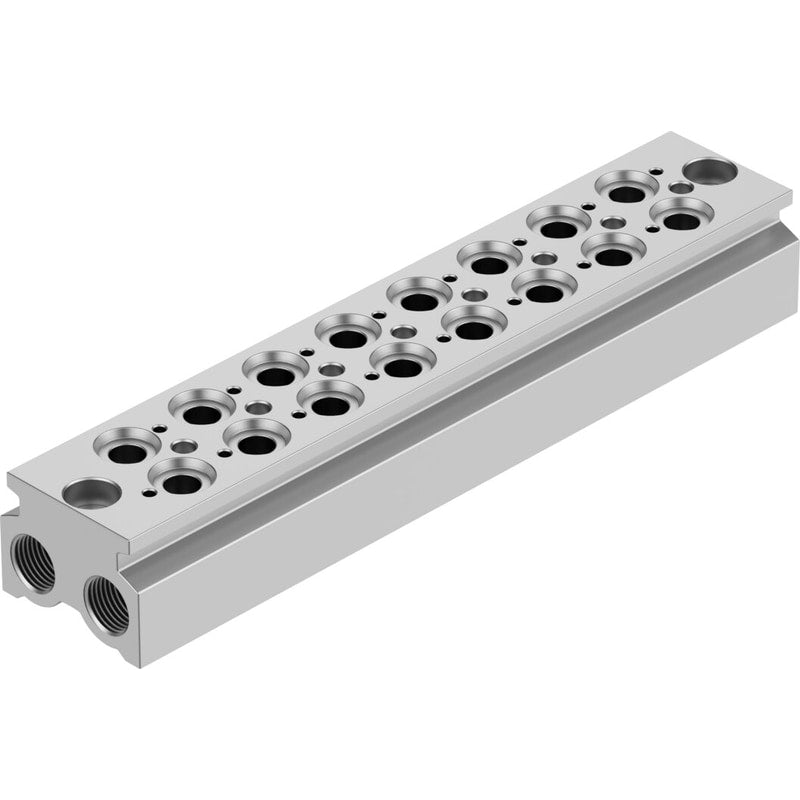

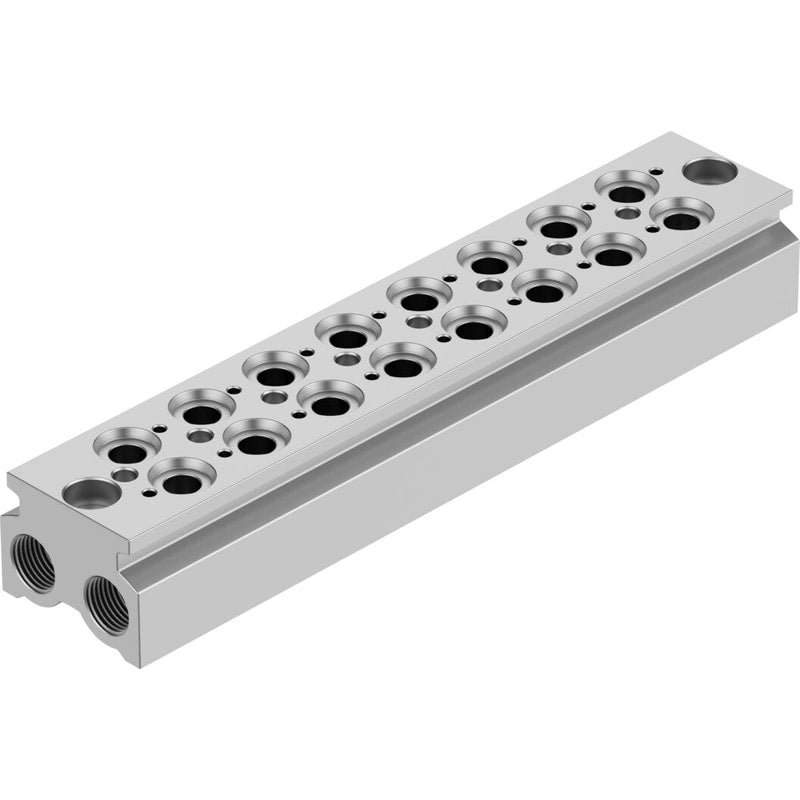

Manifold block
CPE18-3/2-PRS-3/8-8
550574
GTIN 4052568094317
Vendor Festo
Regular price
$148.57
Unit price
CPE18-3/2-PRS-3/8-8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPE18-3/2-PRS-3/8-8
Regular price
$148.57
Unit price
CPE18-3/2-PRS-3/8-8 is backordered and will ship as soon as it is back in stock.
| Width dimension | 26mm |
|---|---|
| Mounting position | Any |
| Max. no. of valve positions | 8 |
| Max. no. of pressure zones | 2 |
| Burst pressure | 5MPa |
| Burst pressure | 50bar |
| Burst pressure | 725psi |
| Operating pressure | -0.09MPa |
| Operating pressure | -0.9bar |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C |
| Ambient temperature | -5°C |
| Max. tightening torque for valve mounting | 2Nm |
| Product weight | 748g |
| Manifold block type of mounting | With through-hole |
| Pneumatic valve mounting type | With internal thread |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 3 | G3/8 |
| Pneumatic connection 5 | G3/8 |
| Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy |
