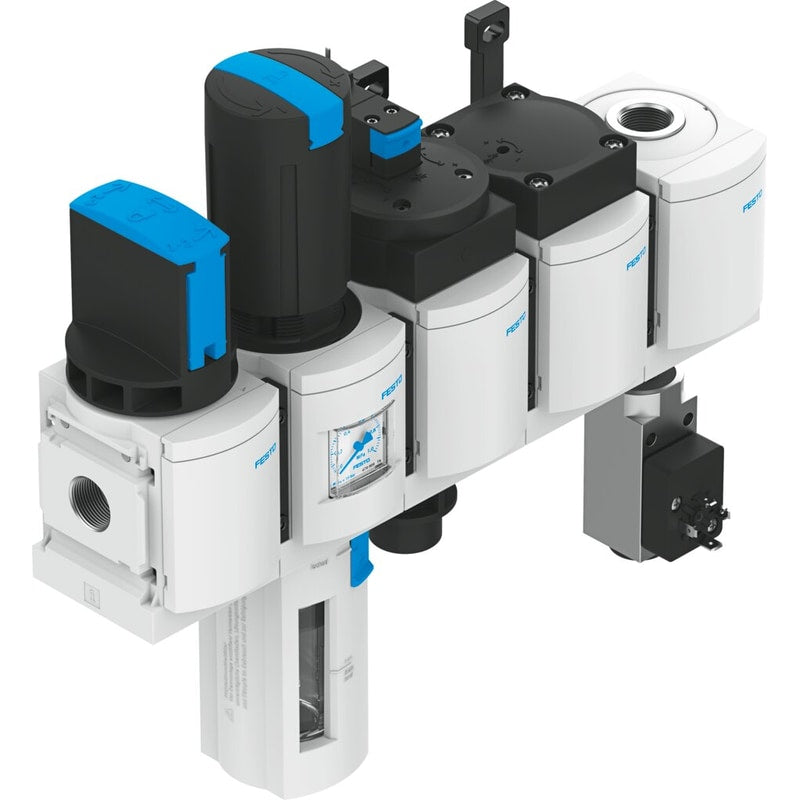

Air preparation combination unit MSB6N-1/2:C3J2D7A1F3-WP

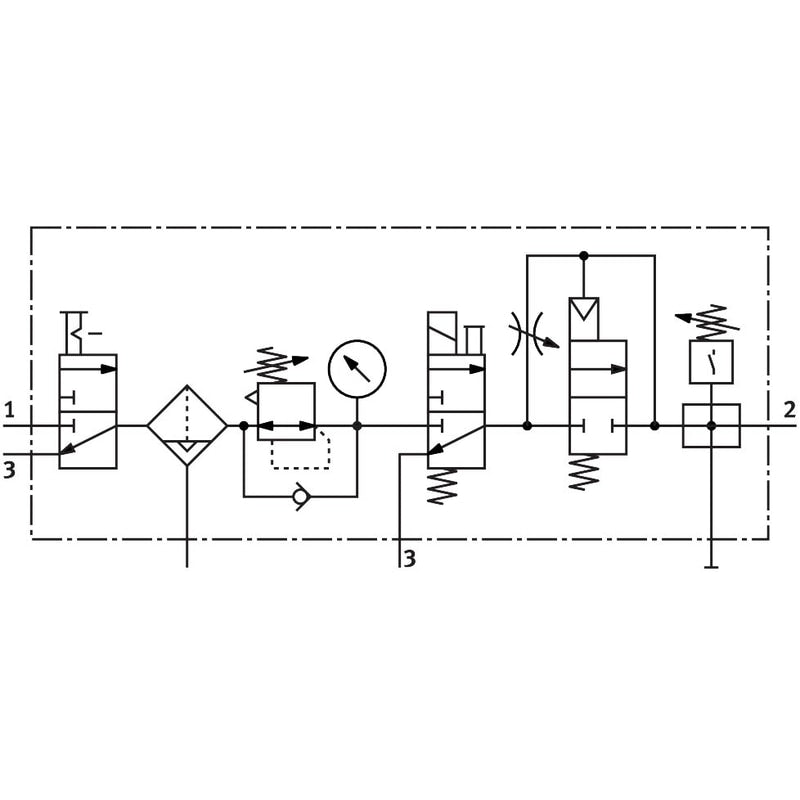

service unit combination MSB6N-1/2:C3J2D7A1F3-WP Comprising on-off valve, filter regulator, electrical on-off valve, pneumatic soft-start valve, branching module with pressure switch but without display, wall mounting plate. Maximum output pressure 9 bar, 40 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=40 µm

Size	6
Series	MS
Actuator lock	Rotary knob with lockwith accessories, lockable
Assembly position	Vertical +/- 5°
Grade of filtration	40 µm
Condensate drain	fully automatic
Design structure	Branching moduleStart-up valvePressure sensorOn/off valveFilter regulator with pressure gauge
Controller function	Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow
Bowl guard	Plastic guard
Pressure gauge	with pressure gauge
Operating pressure	4.5 ... 10 bar
Pressure regulation range	4 ... 9 bar
Standard nominal flow rate	3,100 l/min
