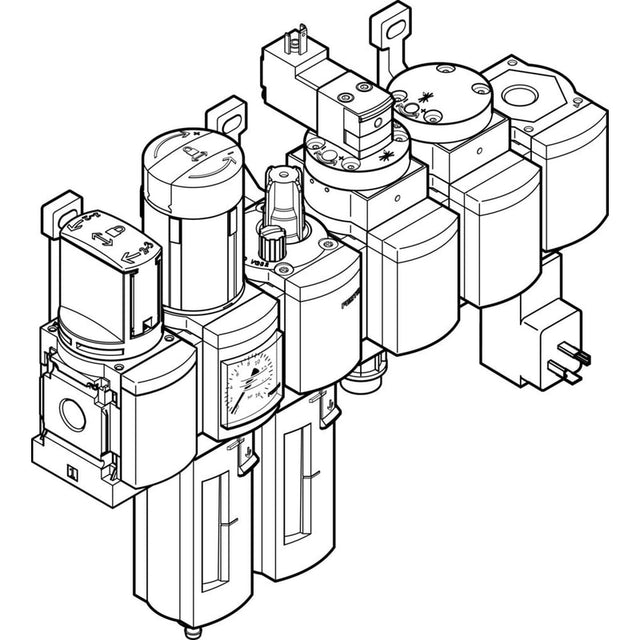

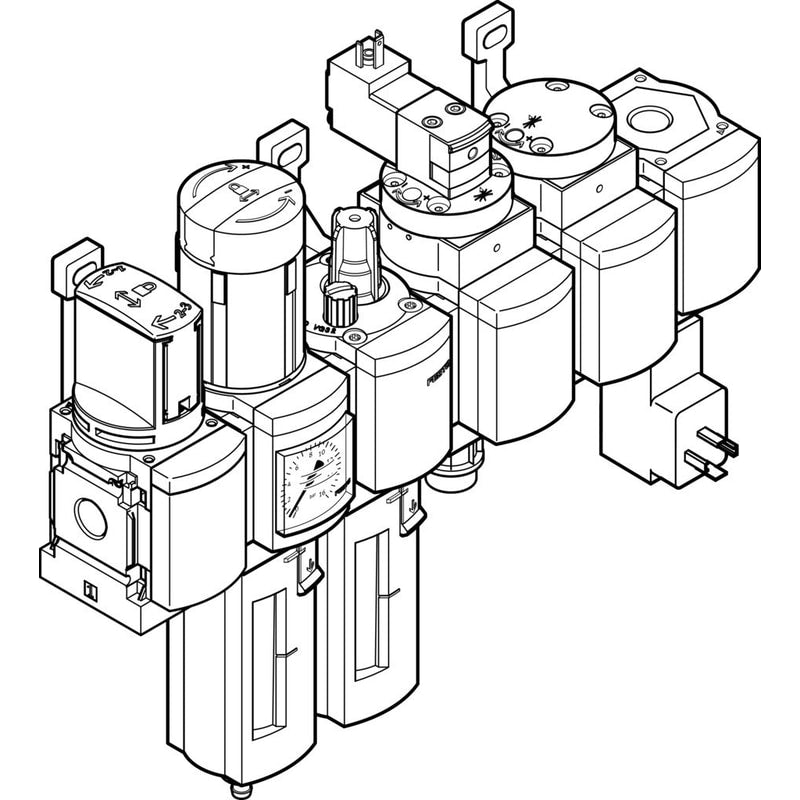

Air preparation combination unit MSB4N-1/4:C3J3M1D7A1F3-WP
550488
Vendor Festo
Regular price
$553.59
Unit price
Air preparation combination unit MSB4N-1/4:C3J3M1D7A1F3-WP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
Air preparation combination unit MSB4N-1/4:C3J3M1D7A1F3-WP
Regular price
$553.59
Unit price
Regular price
$553.59
Unit price
Air preparation combination unit MSB4N-1/4:C3J3M1D7A1F3-WP is backordered and will ship as soon as it is back in stock.
service unit combination MSB4N-1/4:C3J3M1D7A1F3-WP Consisting of manual on-off valve, filter/regulator, oiler, electrical on-off valve, pneumatic soft-start valve, branching module with pressure switch but without display, wall mounting plate Maximum output pressure 9 bar, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic basket guard, manual condensate drain, flow direction from left to right. Size=4, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=5 µm
| Size | 4 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with lockwith accessories, lockable |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | manual rotary |
| Design structure | On/off valveFilter regulator with pressure gaugeStandard oil-mist lubricator |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Bowl guard | Plastic guard |
| Pressure gauge | with pressure gauge |
| Operating pressure | 4.5 ... 10 bar |
| Pressure regulation range | 4 ... 9 bar |
| Standard nominal flow rate | 550 l/min |
