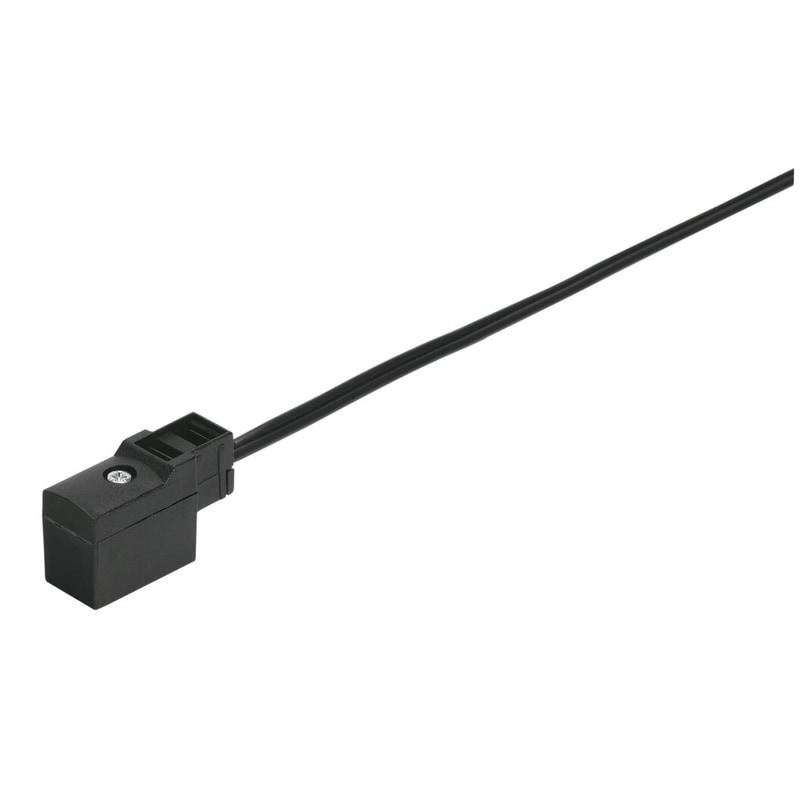

Plug socket with cable
KMYZ-4-5,0-B-EX
550482
GTIN 4052568052041
Vendor Festo
- Electrical connection
- Cable - Ractangular design MSZB
- Cable length
- 5 m
Regular price
$15.14
Unit price
KMYZ-4-5,0-B-EX is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KMYZ-4-5,0-B-EX
Regular price
$15.14
Unit price
KMYZ-4-5,0-B-EX is backordered and will ship as soon as it is back in stock.
| Type code | KMYZ |
|---|---|
| Maritime classification | See certificate |
| Type of mounting | On air solenoid valve with M2 central screw |
| Product weight | 62.5 g |
| Electrical connection | Ractangular design MSZBSocket, angledCable |
| DC operating voltage range | 3 V ... 36 V |
| Nominal operating voltage DC | 24 V |
| Protective earth connection | Not available |
| Cable length | 5 m |
| Cable characteristic | Standard |
| Cable design | 2 x 0.35 mm² |
| Degree of protection | IP50 |
| Ambient temperature | -10 °C ... 50 °C |
| Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | PVC |
| Housing material | PA |
| Material of pin contacts | Bronze |
| Mounting position | Any |
