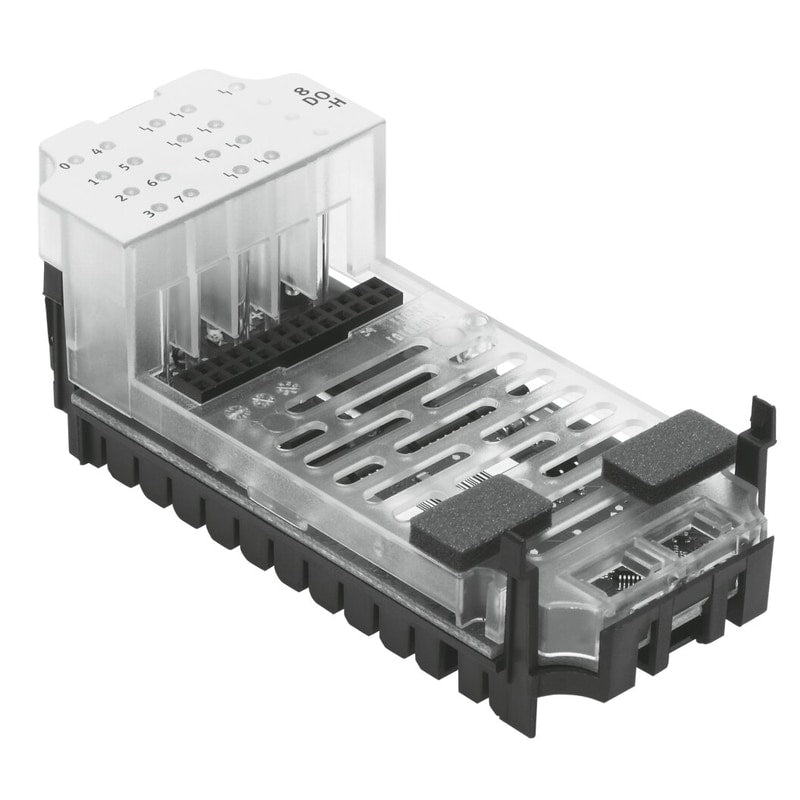

CPX-8DA-H

output module CPX-8DA-H With channel oriented diagnosis. Dimensions W x L x H=(* (incl. interlinking block and connection technology), * 50 mm x 107 mm x 50 mm), No. of outputs=8, Diagnosis=(* - Short circuit/overload per channel, * - Undervoltage of outputs), Parameters configuring=(* Failsafe per channel, * Forces per channel, * Idle mode per channel, * - Behaviour after short circuit, * Module monitoring), LED displays=(* - 1 Group diagnosis, * - 8 Channel diagnosis, * - 8 Channel status)

Dimensions W x L x H	(incl. interlinking block and connection technology)50 mm x 107 mm x 50 mm
No. of outputs	8
Diagnosis	'- Short circuit/overload per channel- Undervoltage of outputs
Parameters configuring	Failsafe per channelForces per channelIdle mode per channel- Behaviour after short circuitModule monitoring
LED displays	'- 1 Group diagnosis- 8 Channel diagnosis- 8 Channel status
Protection (short circuit)	Internal electronic fuse protection per channelAdditional fuse
Operating voltage range DC	18 ... 30 V
Intrinsic current consumption at operating voltage	Typically 34 mA
Max. power supply per channel	2.1 A (50 W lamp load), per channel pair
Max. residual current outputs per module	8.4 A
Nominal operating voltage DC	24 V
Electrical isolation channel – internal bus	Yes, for intermediate supply
Electrical isolation channel – channel	No
