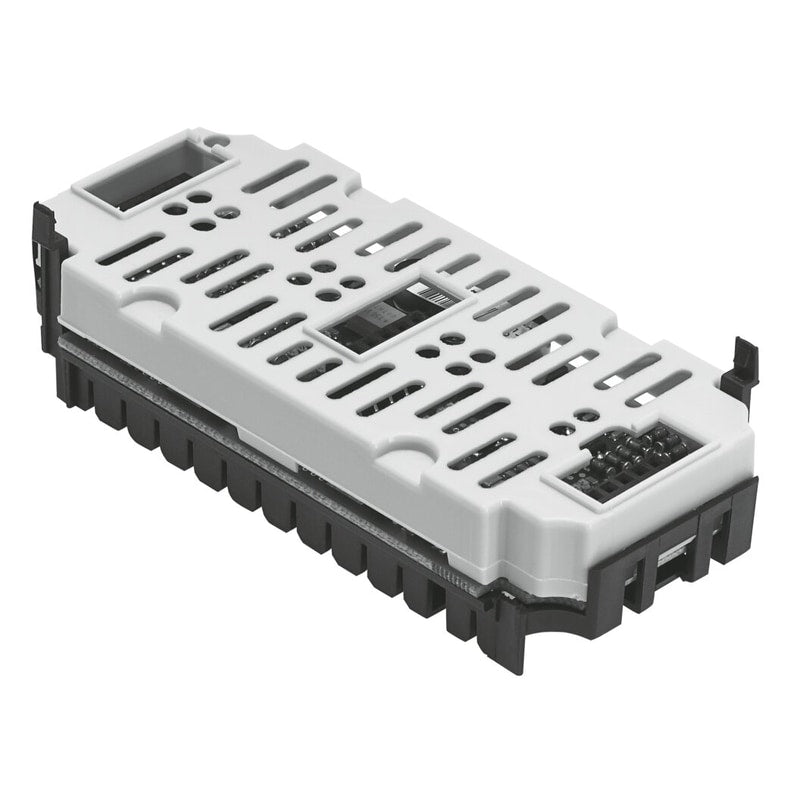

Input module
CPX-M-16DE-D
550202
GTIN 4052568006013
Vendor Festo
Regular price
$401.48
Unit price
CPX-M-16DE-D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-M-16DE-D
Regular price
$401.48
Unit price
CPX-M-16DE-D is backordered and will ship as soon as it is back in stock.
input module CPX-M-16DE-D for modular electrical terminal CPX.
| Dimensions W x L x H | (incl. interlinking block and connection technology)50 mm x 107 mm x 50 mm |
|---|---|
| No. of inputs | 16 |
| Diagnosis | '- Short circuit/overload per channel |
| Parameters configuring | '- Input debounce time- Signal extension time- Behaviour after short circuitModule monitoring |
| LED displays | '- 1 Group diagnosis- 16 Channel diagnosis/channel status |
| Input debounce time | 3 ms (0.1 ms, 10 ms, 20 ms, parameterisable) |
| Protection (short circuit) | Internal electronic fuse protection per channel pairAdditional fuse |
| Operating voltage range DC | 18 ... 30 V |
| Intrinsic current consumption at operating voltage | Typically 34 mA |
| Max. residual current inputs per module | 1.8 A |
| Nominal operating voltage DC | 24 V |
| Electrical isolation channel – internal bus | No |
| Electrical isolation channel – channel | No |
