Basic valve
CPE18-P1-5J-1/4
550155
GTIN 4052568094041
Vendor Festo

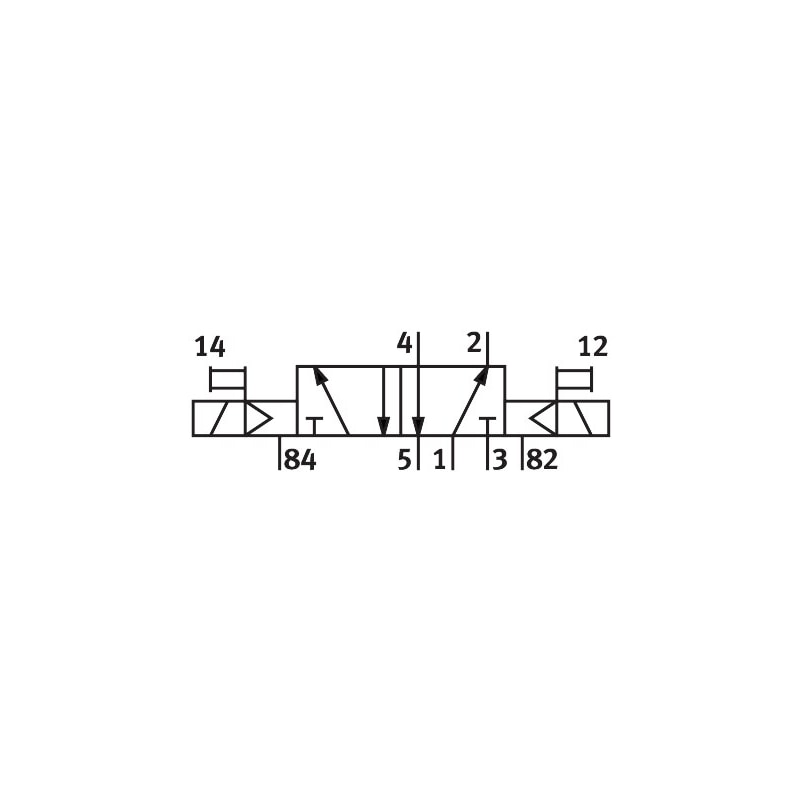

- Valve function
- 5/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 1500 l/min
- Pneumatic connection 1
- G1/4
- Actuation type
- Via ISO 15218 pilot control interface
Regular price
$184.19
Unit price
CPE18-P1-5J-1/4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPE18-P1-5J-1/4
Regular price
$184.19
Unit price
CPE18-P1-5J-1/4 is backordered and will ship as soon as it is back in stock.

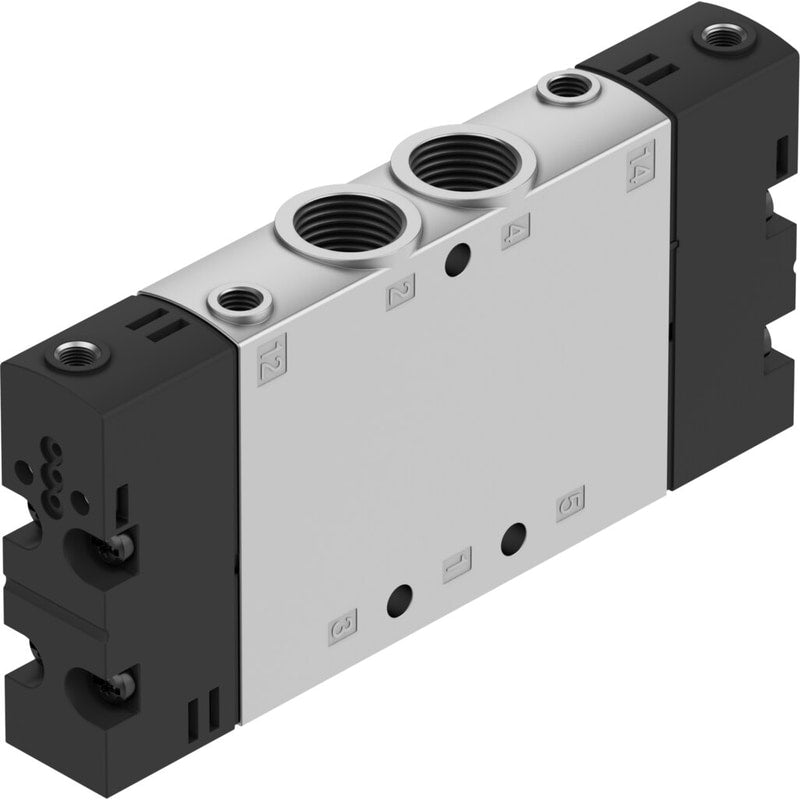

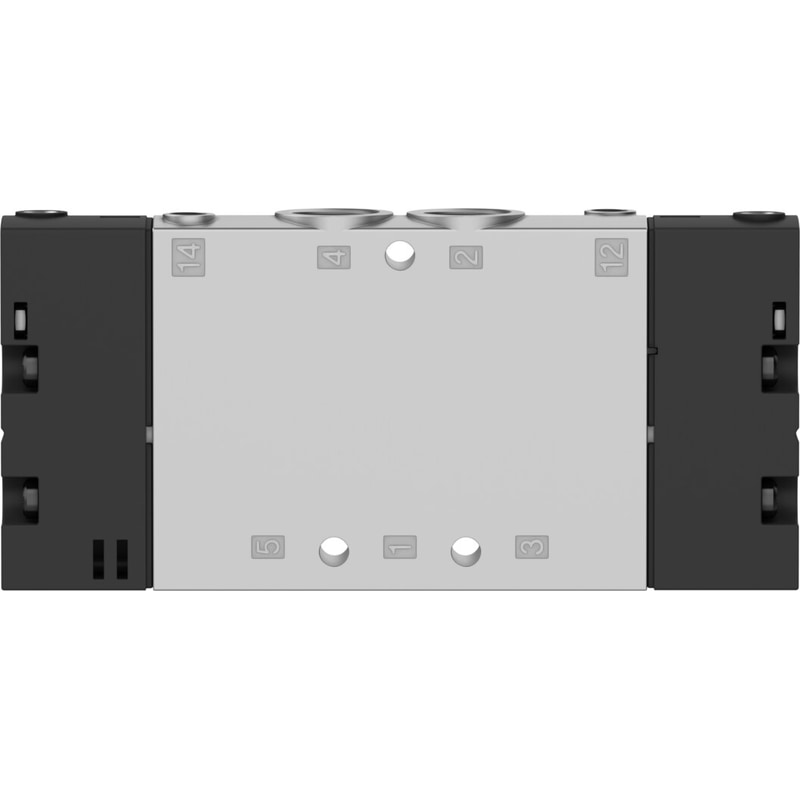

basic valve CPE18-P1-5J-1/4 Very compact assembly, with CNOMO interface. Valve function=5/2 bistable, Type of actuation=Via pilot interface to ISO 15218, Width=18 mm, Standard nominal flow rate=1500 l/min, Operating pressure=2 - 10 bar
| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | Via pilot interface to ISO 15218 |
| Width | 18 mm |
| Standard nominal flow rate | 1,500 l/min |
| Operating pressure | 2 ... 10 bar |
| Design structure | Piston slide |
| Maritime classification | see certificate |
| Nominal size | 8 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | Pushing |
| Type of piloting | Piloted |
