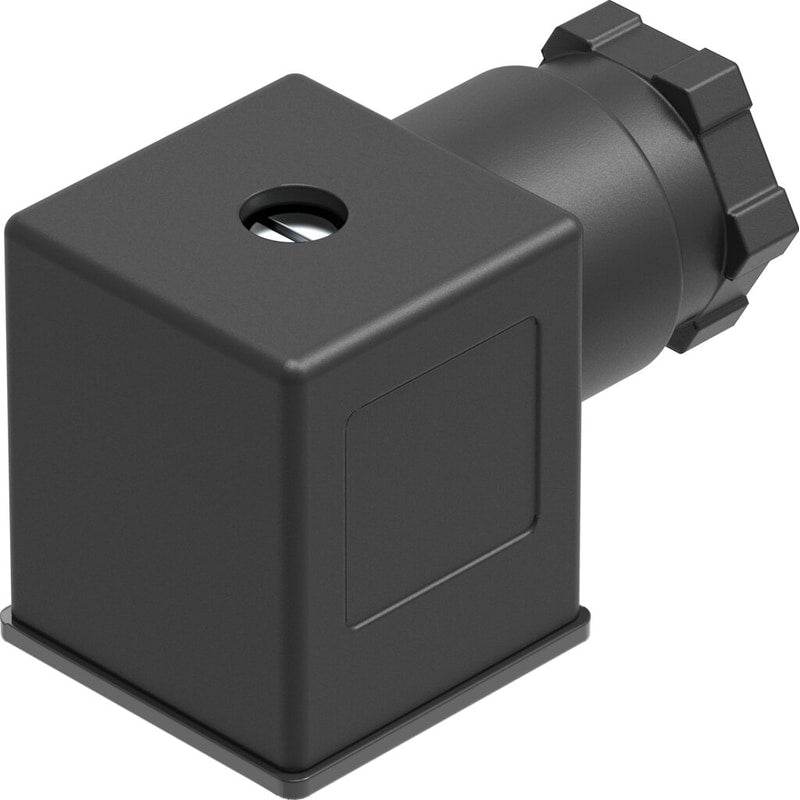

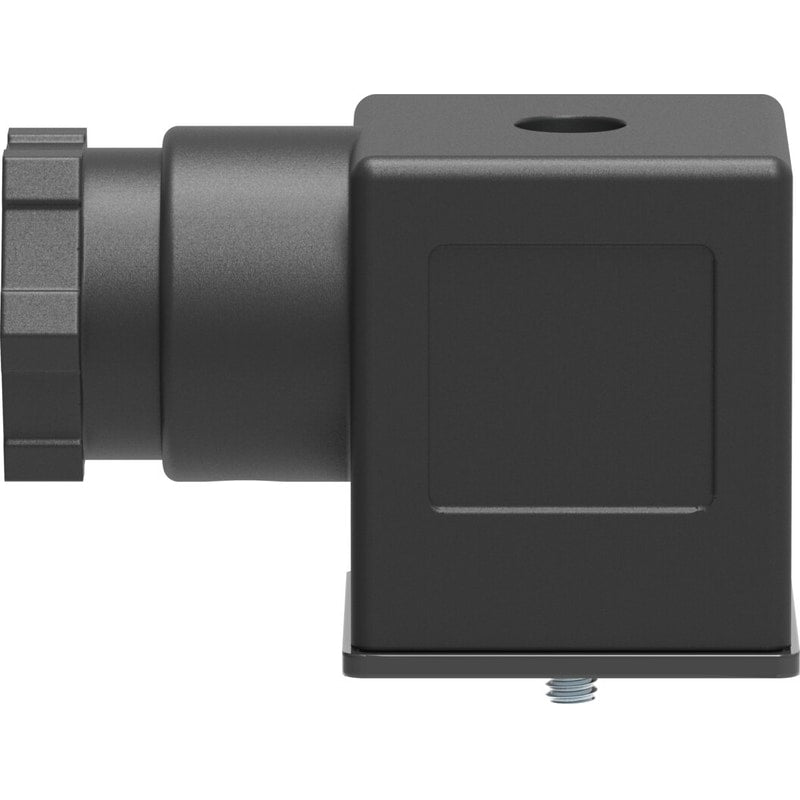

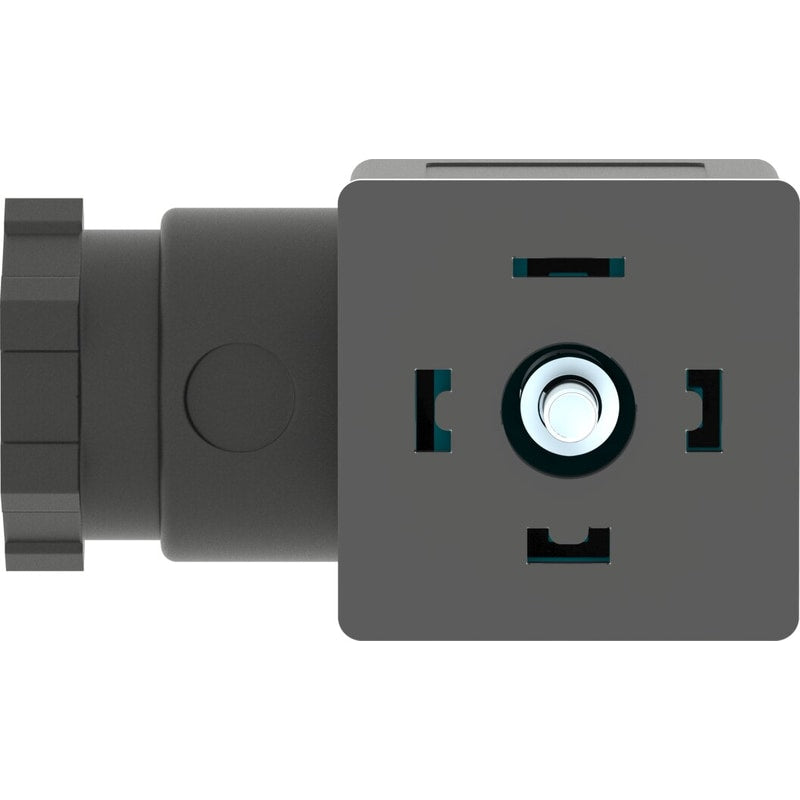

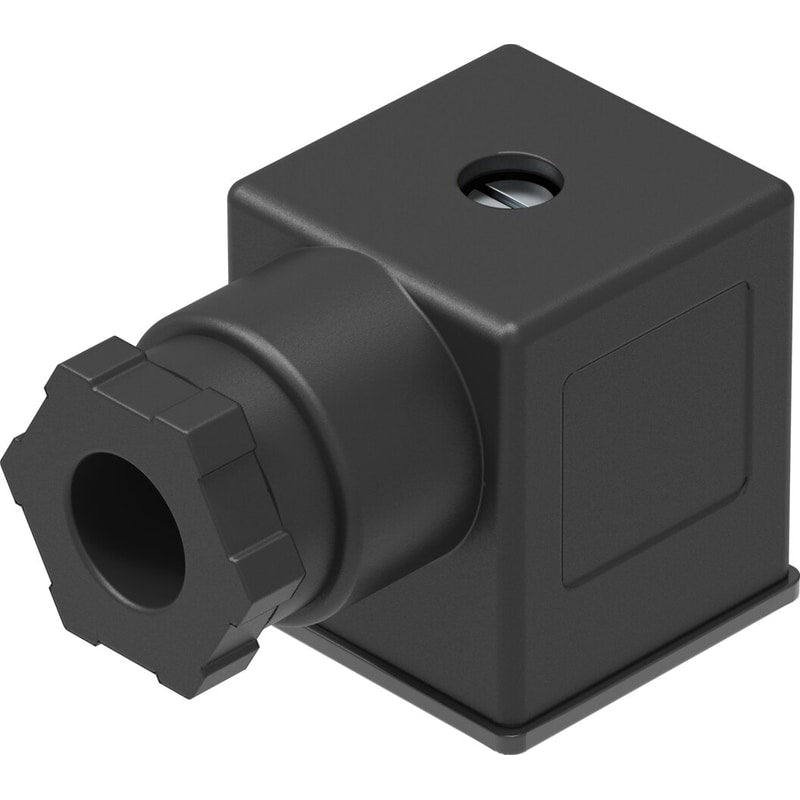

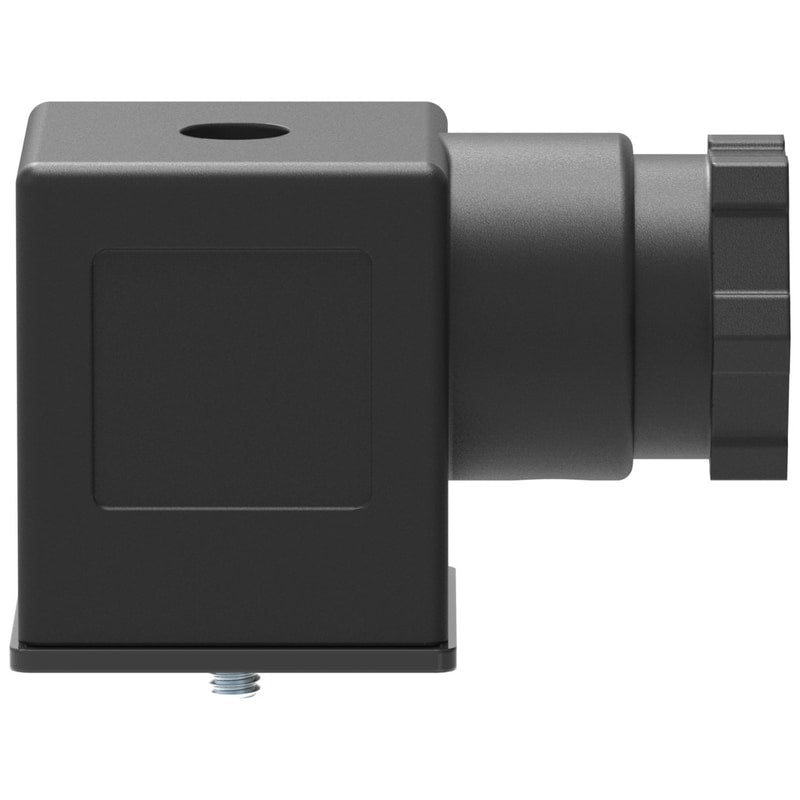

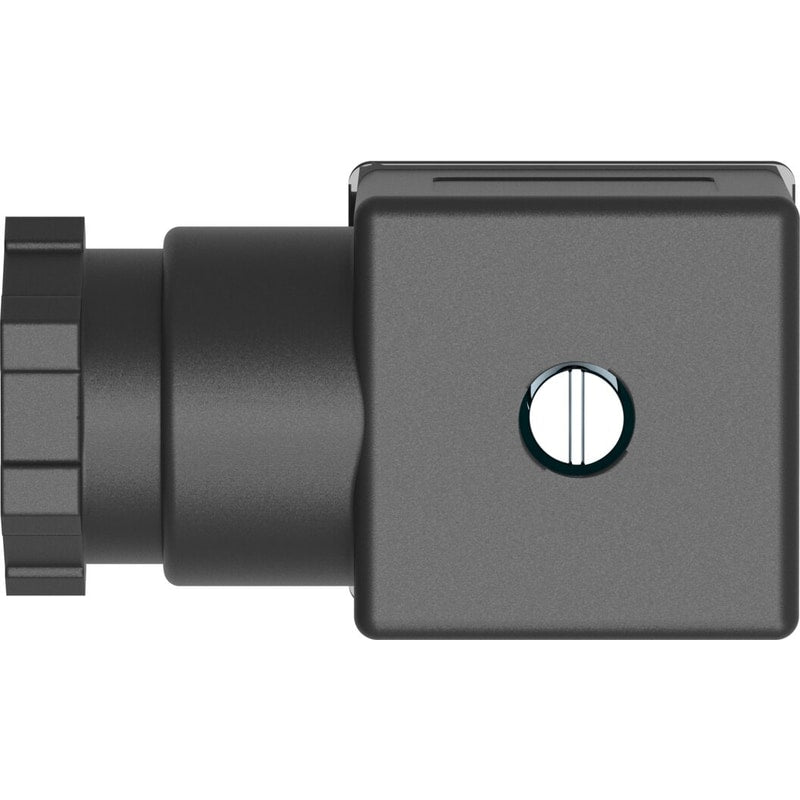

Plug socket
MSSD-N
550067
GTIN 4052568051952
Vendor Festo
- Degree of protection
- IP65
Regular price
$3.35
Unit price
MSSD-N is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSSD-N
Regular price
$3.35
Unit price
MSSD-N is backordered and will ship as soon as it is back in stock.
| Cable outlet | Angled |
|---|---|
| Type code | MSSD |
| Based on norm | EN 175301-803 |
| Product weight | 30 g |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, connection technology | Connection diagram form A as per EN 175301-803 |
| Electrical connection 1, number of pins/wires | 3 |
| Electrical connection 1, type of mounting | On air solenoid valve with M3 central screw |
| Electrical connection for input 1, connection pattern | 995648 |
| Electrical connection 2, connection technology | Screw terminal |
| DC operating voltage range | 0 V ... 24 V |
| Operating voltage range AC | 0 V ... 250 V |
| Current rating at 40°C | 16 A |
| Cable diameter | 8 mm ... 10 mm |
| Nominal conductor cross section | 1.5 mm² |
| Degree of protection | IP65 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -25 °C ... 80 °C |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | PA-reinforced |
| Housing colour | Black |
| Material of screws | Steel |
| Cable fitting | M20x1.5 |
