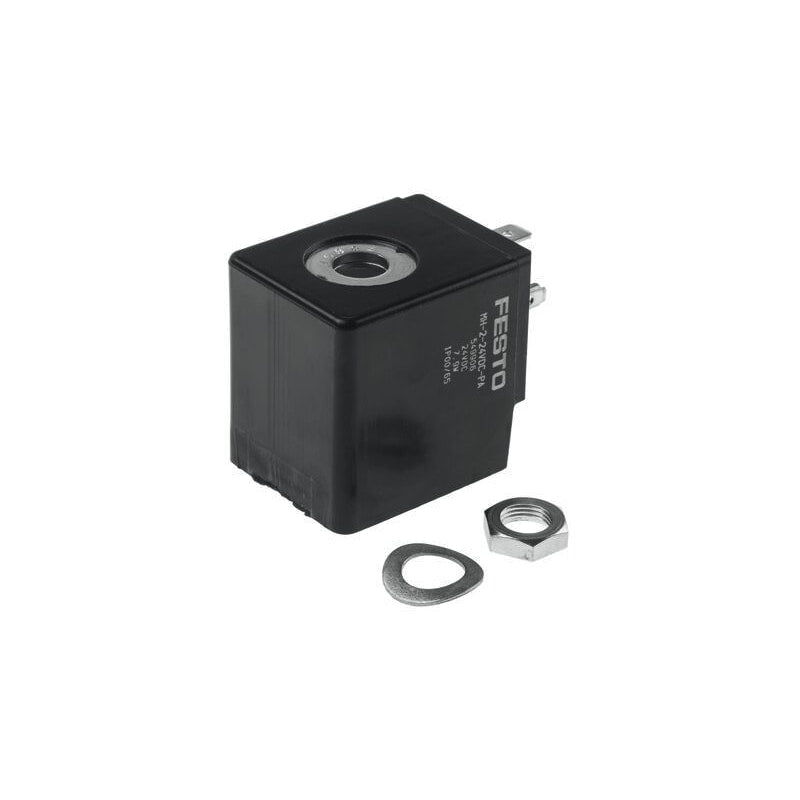

Solenoid coil
MH-2-24VDC-PA
549906
GTIN 4052568093976
Vendor Festo
- Electrical connection
- as per DIN EN 175301-803
- Type of mounting
- With lock nut
- Coil characteristics
- 24 V DC: 7.9 W
- Degree of protection
- IP65
Regular price
$42.71
Unit price
MH-2-24VDC-PA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MH-2-24VDC-PA
Regular price
$42.71
Unit price
MH-2-24VDC-PA is backordered and will ship as soon as it is back in stock.
solenoid coil MH-2-24VDC-PA For DC voltage, without plug socket. Assembly position=Any, Switching position indicator=No, Min. pickup time=12 ms, Duty cycle=100%, Power factor cos {phi}=0,7
| Assembly position | Any |
|---|---|
| Switching position indicator | No |
| Min. pickup time | 12 ms |
| Duty cycle | 1 |
| Power factor cos {phi} | 0.7 |
| Characteristic coil data | 24 V DC: 7.9 W |
| Permissible frequency fluctuation | '+/- 10 % |
| Permissible voltage fluctuation | '+/- 10 % |
| Protection class | IP65 |
| Ambient temperature | '-20 ... 50 °C |
| Max. tightening torque for fitting | 2 Nm |
| Product weight | 150 g |
| Electrical connection | Per DIN EN 175301-803 |
