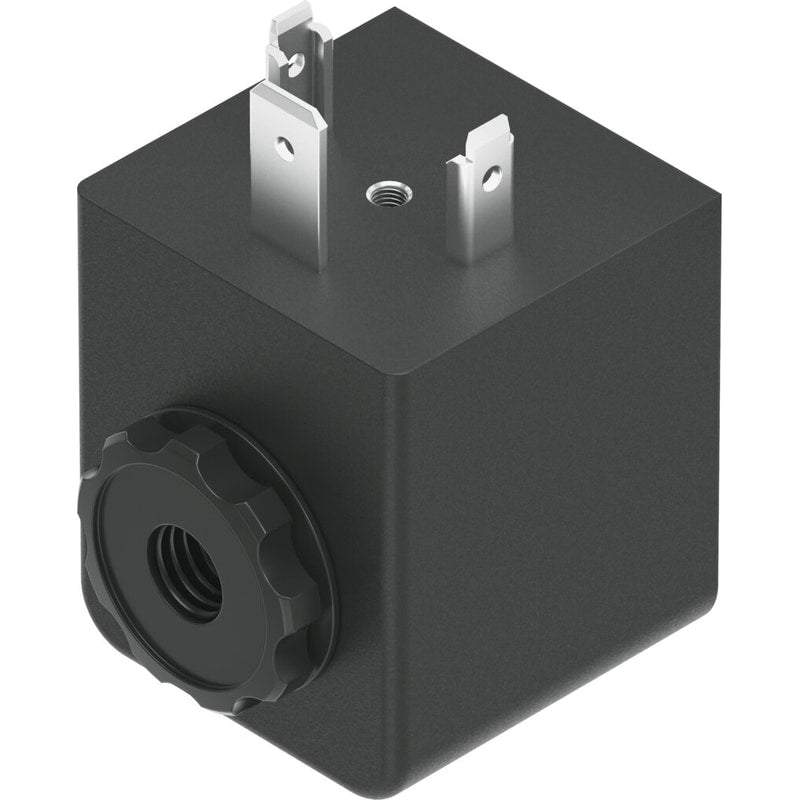

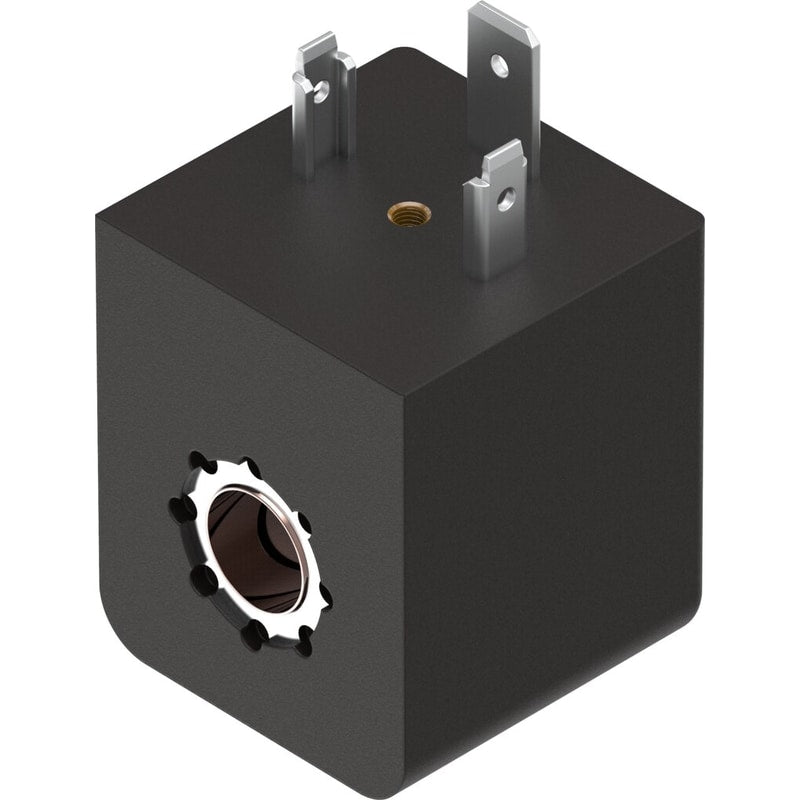

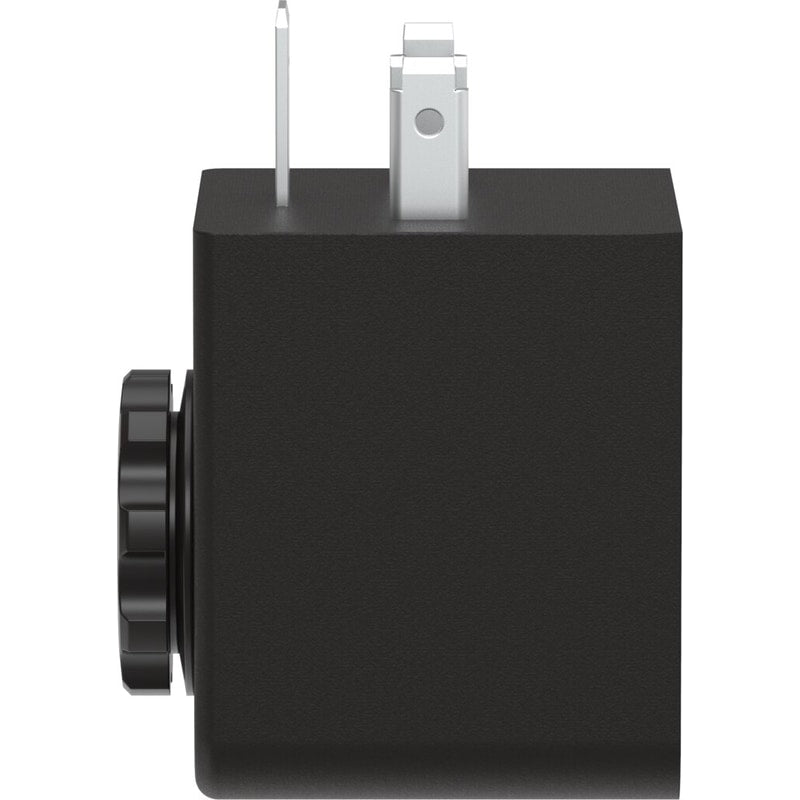

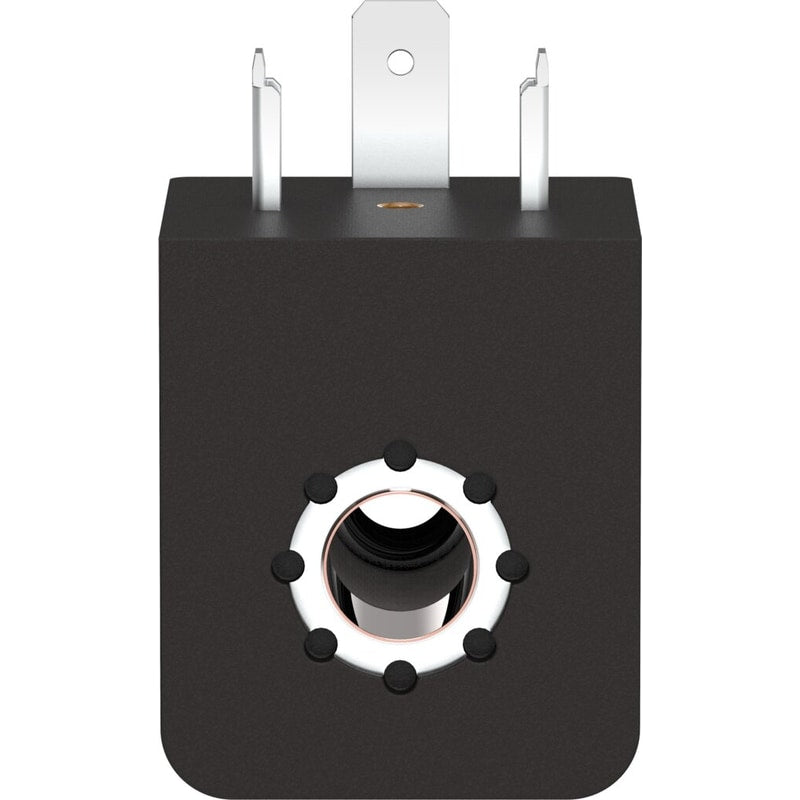

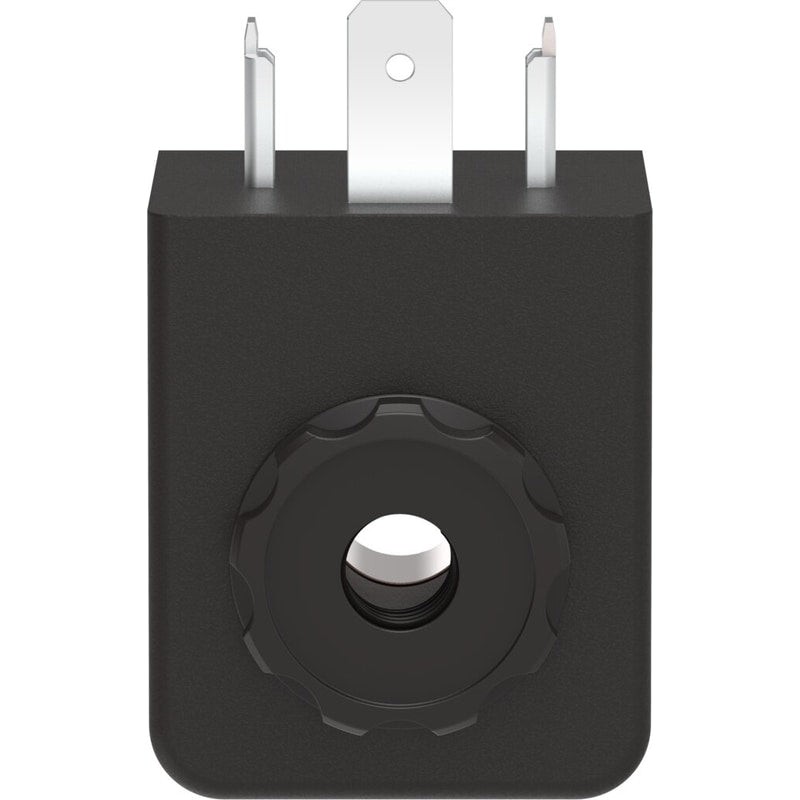

Solenoid coil
MD-2-110VAC-PA
549904
GTIN 4052568051938
Vendor Festo
- Electrical connection
- as per DIN EN 175301-803
- Type of mounting
- With knurled nut
- Coil characteristics
- 110 V AC: 50/60 Hz, initial power 14.5 VA, holding power 10.5 VA
- Degree of protection
- IP65
Regular price
$34.55
Unit price
MD-2-110VAC-PA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MD-2-110VAC-PA
Regular price
$34.55
Unit price
MD-2-110VAC-PA is backordered and will ship as soon as it is back in stock.
solenoid coil MD-2-110VAC-PA For AC voltage, without plug socket. Assembly position=Any, Duty cycle=100%, Power factor cos {phi}=0,7, Characteristic coil data=110 V AC: 50/60 Hz, pick-up power 14.5 VA, holding power 10.5 VA, Permissible frequency fluctuation=+/- 10 %
| Assembly position | Any |
|---|---|
| Duty cycle | 1 |
| Power factor cos {phi} | 0.7 |
| Characteristic coil data | 110 V AC: 50/60 Hz, pick-up power 14.5 VA, holding power 10.5 VA |
| Permissible frequency fluctuation | '+/- 10 % |
| Permissible voltage fluctuation | '+/- 10 % |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Protection class | IP65 |
| Ambient temperature | '-20 ... 50 °C |
| Max. tightening torque for fitting | 0.5 Nm |
| Product weight | 110 g |
| Electrical connection | Per DIN EN 175301-803 |
| Mounting type | With knurled nut |
