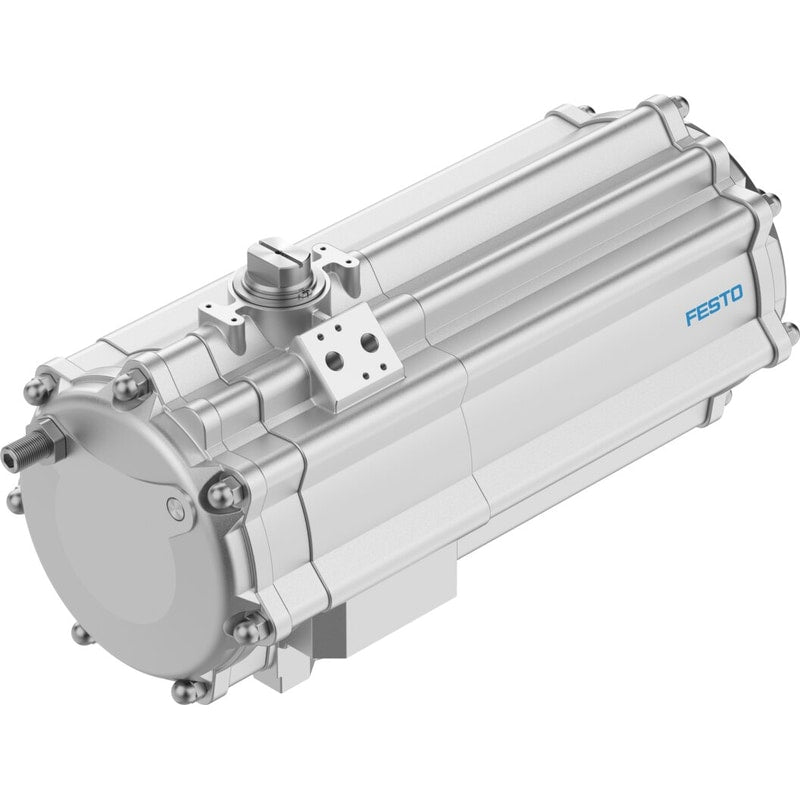

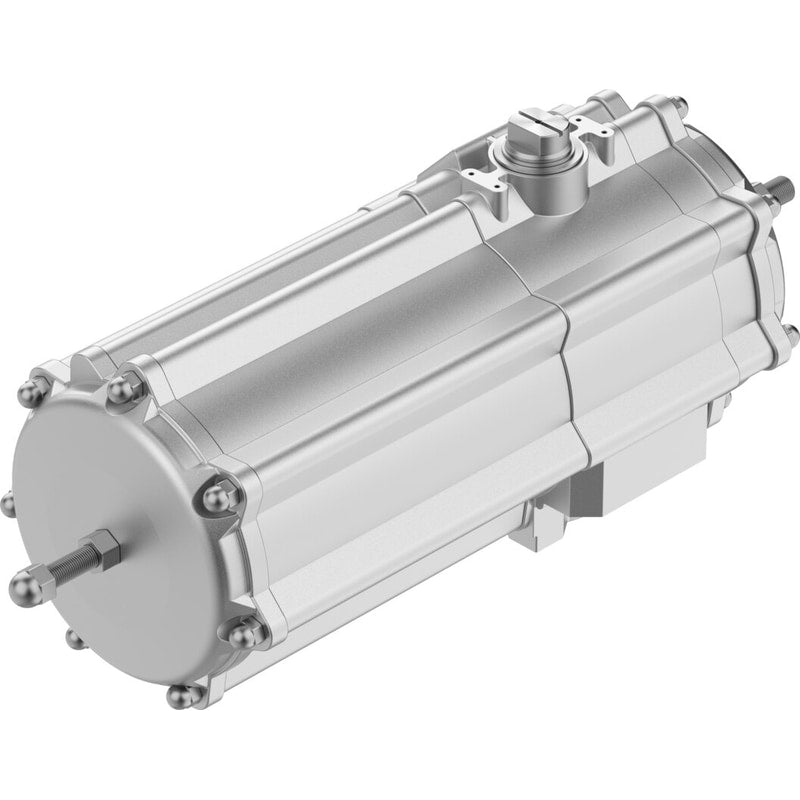

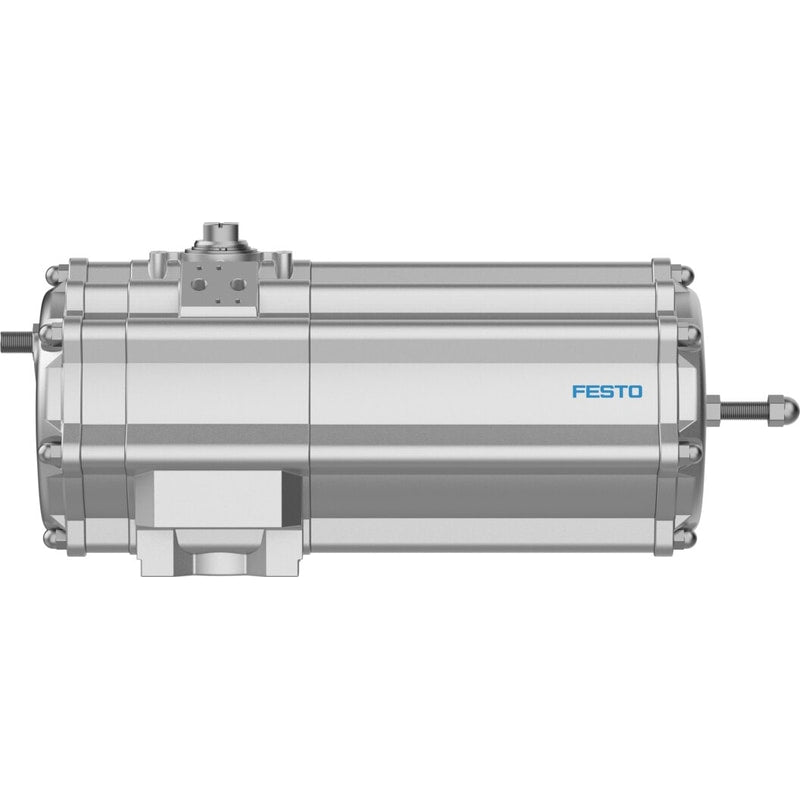

Quarter turn actuator
DAPS-1440-090-RS2-F16
549686
GTIN 4052568191290
Vendor Festo
- Pneumatic connection
- G3/8
- Torque at nominal operating pressure and 0° swivel angle
- 1800 Nm
- Swivel angle
- 90 deg
- Flange hole pattern
- F16
- Shaft connection
- T46
Regular price
$9,990.07
Unit price
DAPS-1440-090-RS2-F16 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DAPS-1440-090-RS2-F16
Regular price
$9,990.07
Unit price
DAPS-1440-090-RS2-F16 is backordered and will ship as soon as it is back in stock.
semi-rotary drive DAPS-1440-090-RS2-F16 single-acting, Namur valves not suited for direct flange-mounting. Size of actuator=1440, Flange hole pattern=F16, Swivel angle=90 deg, End-position adjustment range at 0°=-5 - 5 deg, End-position adjustment range at 90°=85 - 95 deg
| Size of actuator | 1440 |
|---|---|
| Flange hole pattern | F16 |
| Swivel angle | 90 deg |
| End-position adjustment range at 0° | '-5 ... 5 deg |
| End-position adjustment range at 90° | 85 ... 95 deg |
| Shaft connection depth | 49.5 mm |
| Fitting connection conforms to standard | ISO 5211 |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | single-acting |
| Design structure | Yoke kinematics |
| Position detection | No |
| Closing direction | right-closing |
