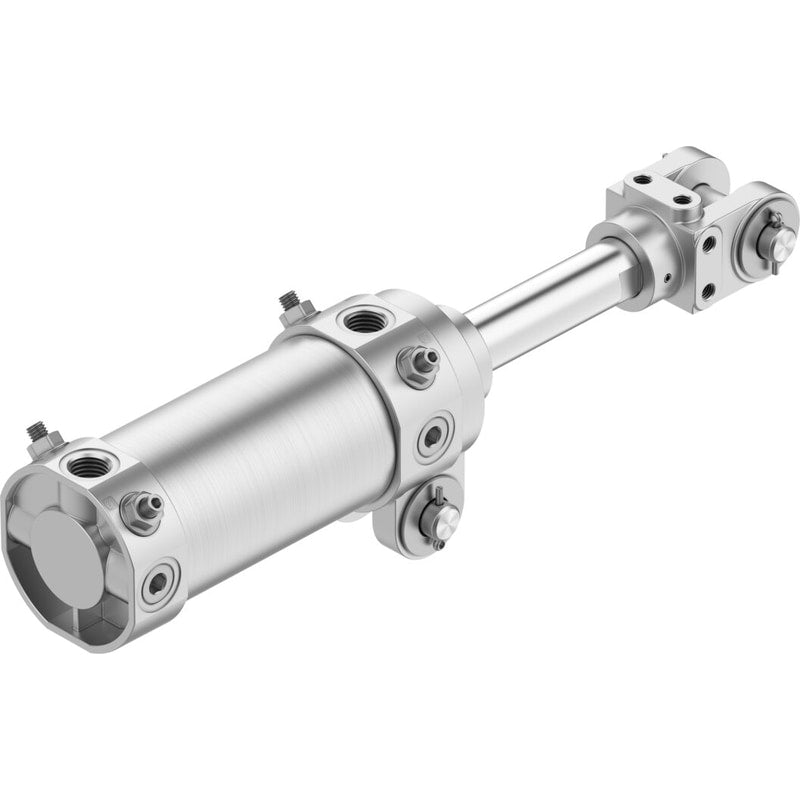

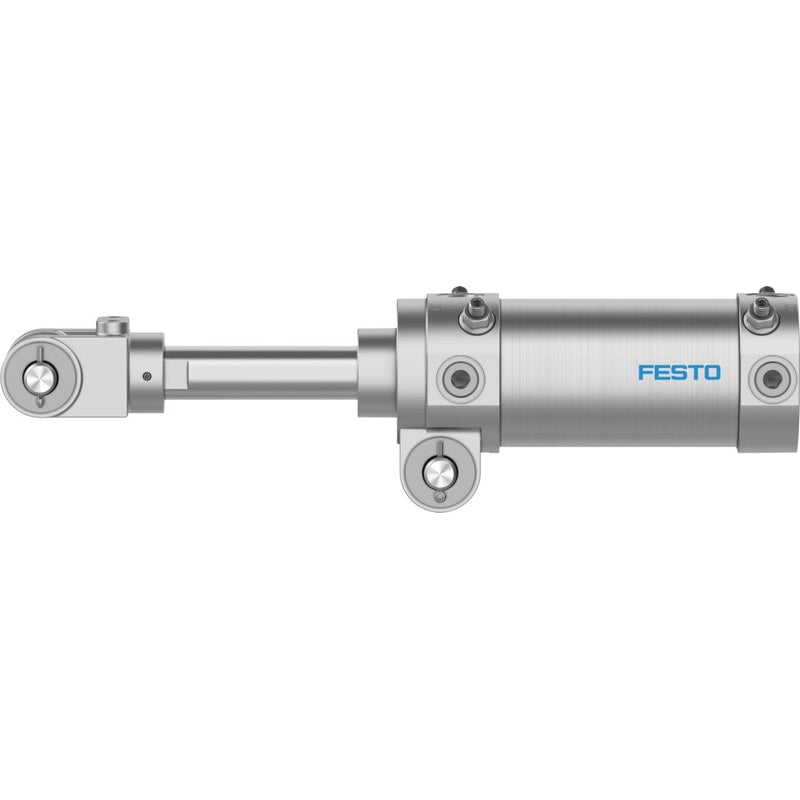

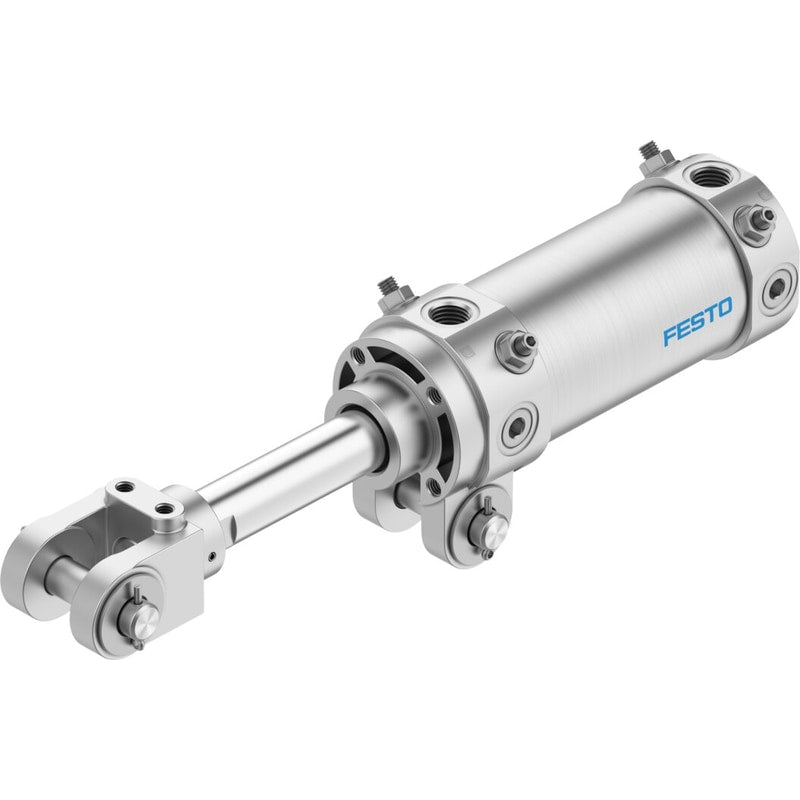

Hinge cylinder
DWB-50-50-Y
549553
GTIN 4052568190712
Vendor Festo
- Piston diameter
- 50 mm
- Stroke
- 50 mm
- Pneumatic connection
- Rc1/4
- Theoretical force at 6 bar, advancing
- 1178 N
- Theoretical force at 6 bar, retracting
- 990 N
Regular price
$211.41
Unit price
DWB-50-50-Y is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DWB-50-50-Y
Regular price
$211.41
Unit price
DWB-50-50-Y is backordered and will ship as soon as it is back in stock.
| Stroke | 50 mm |
|---|---|
| Piston diameter | 50 mm |
| Piston rod thread | M16x1.5 |
| Wide rod clevis/swivel mounting | 19.5 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any |
| Structural design | Piston Piston rod with rod clevis Swivel mounting on bearing cap Cylinder barrel |
| Velocity control | Integrated flow control at both ends |
| Position sensing | None |
| Piston rod end | External thread with rod clevis |
| Operating pressure | 1 bar ... 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS conformity | VDMA24364-B2-L |
| Ambient temperature | -10 °C ... 60 °C |
| Impact energy in the end positions | 0.7 J |
| Cushioning length | 20 mm |
| Theoretical force at 6 bar, retracting | 990 N |
| Theoretical force at 6 bar, advancing | 1178 N |
| Moving mass at 0 mm stroke | 664 g |
| Additional weight per 10 mm stroke | 37 g |
| Basic weight with 0 mm stroke | 1338 g |
| Additional moving mass per 10 mm stroke | 25 g |
| Alternative connections | See product drawing |
| Type of mounting | With swivel mounting on bearing cap With accessories |
| Pneumatic connection | Rc1/4 |
| Rod clevis material | Cast steel Tempered steel |
| Note on materials | RoHS-compliant |
| Scraper material | Bronze |
| Cover material | Die-cast aluminum Anodized |
| Seals material | NBR |
| Piston rod material | Tempered steel Hard-chrome-plated |
| Material of cylinder barrel | Wrought aluminum alloy Anodized |
