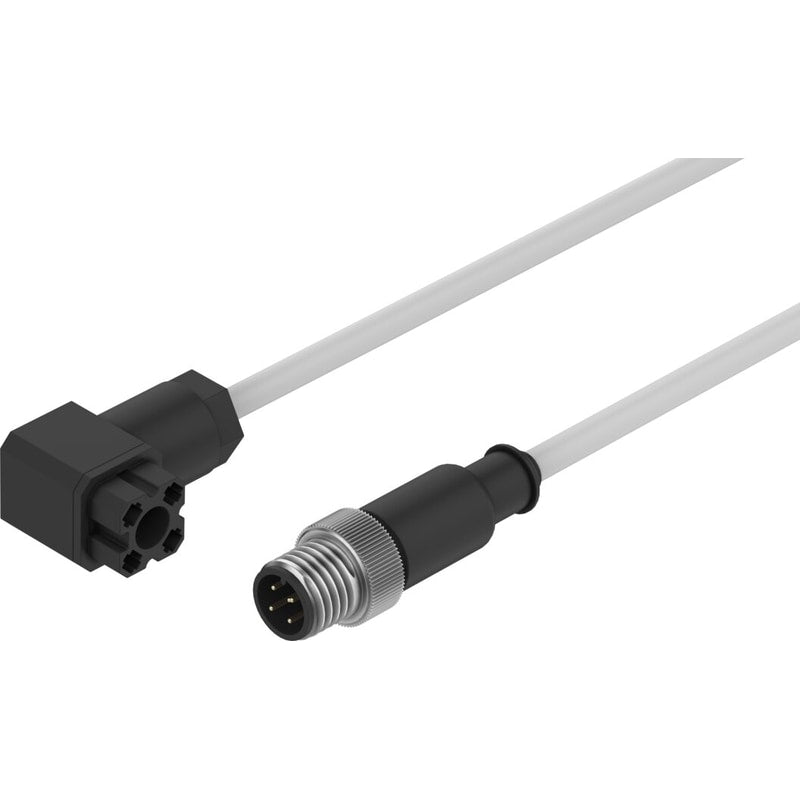

Connecting cable
NEBC-P1W4-K-0.3-N-M12G5
549293
GTIN 4052568093822
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- Plug pattern P1
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Cable length
- 0.3 m
Regular price
$116.29
Unit price
NEBC-P1W4-K-0.3-N-M12G5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBC-P1W4-K-0.3-N-M12G5
Regular price
$116.29
Unit price
NEBC-P1W4-K-0.3-N-M12G5 is backordered and will ship as soon as it is back in stock.
connecting cable NEBC-P1W4-K-0.3-N-M12G5 From the drive or displacement encoder MLO-POT-...-LWG to the sensor interface CASM Based on the standard=EN 61076-2-101, Electrical connection=(* Plug straight, * M12x1, * 5-pin, * Square design/angled), Protective earth connection=Available, Cable length=0,3 m, Min. cable bending radius=90 mm
| Based on the standard | EN 61076-2-101 |
|---|---|
| Electrical connection | Plug straightM12x15-pinSquare design/angled |
| Protective earth connection | Available |
| Cable length | 0.3 m |
| Min. cable bending radius | 90 mm |
| Cable diameter | 5.9 mm |
| Permissible cable diameter | 5.7 ... 6.1 mm |
| Cable structure | 4x0,34 |
| Nominal conductor cross-section | 0.34 mm2 |
| Protection class | IP65 |
| Ambient temperature | '-25 ... 85 °C |
| Ambient temperature with flexible cable installation | '-25 ... 85 °C |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
