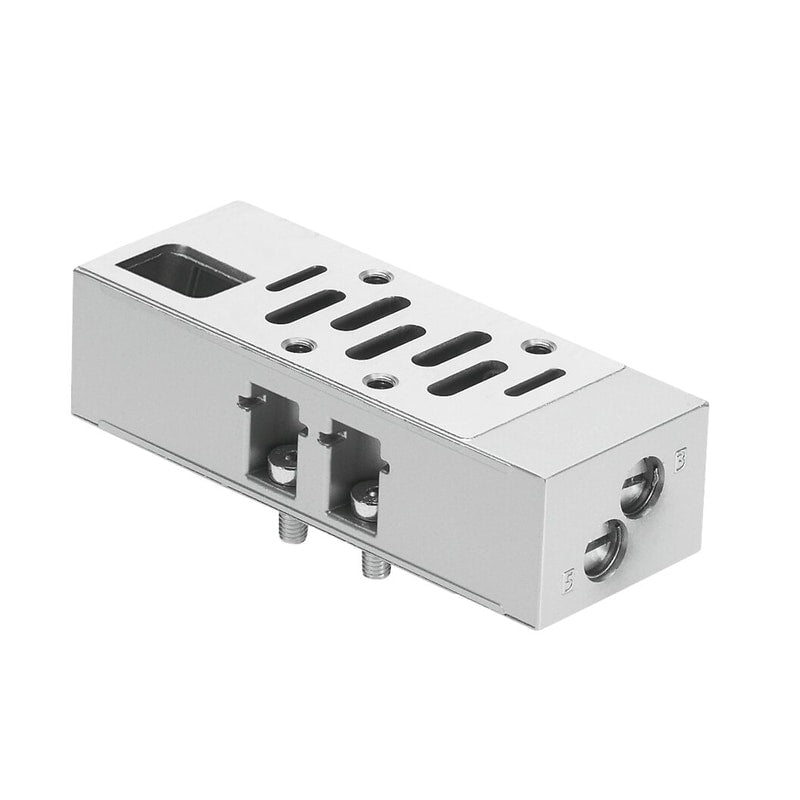

Throttle plate
VABF-S1-1-F1B1-C
549102
GTIN 4052568190392
Vendor Festo
Regular price
$133.47
Unit price
VABF-S1-1-F1B1-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-S1-1-F1B1-C
Regular price
$133.47
Unit price
VABF-S1-1-F1B1-C is backordered and will ship as soon as it is back in stock.
flow control plate VABF-S1-1-F1B1-C For valve terminal VTSA, standard port pattern to 5599-1, 5599-2, for mounting between manifold sub-base and valve, for restricting exhaust air ports 3 and 5 on the valve. Width=42 mm, Based on the standard=ISO 5599-1, Assembly position=Any, Pneumatic vertical stacking=Throttle plate, exhaust air flow control, Operating pressure=-0,9 - 10 bar
| Width | 42 mm |
|---|---|
| Based on the standard | ISO 5599-1 |
| Assembly position | Any |
| Pneumatic vertical stacking | Throttle plate, exhaust air flow control |
| Operating pressure | '-0.9 ... 10 bar |
| Standard nominal flow rate | 1,100 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 220 g |
| Vertical stacking type of mounting | on manifold blockon individual sub-base |
