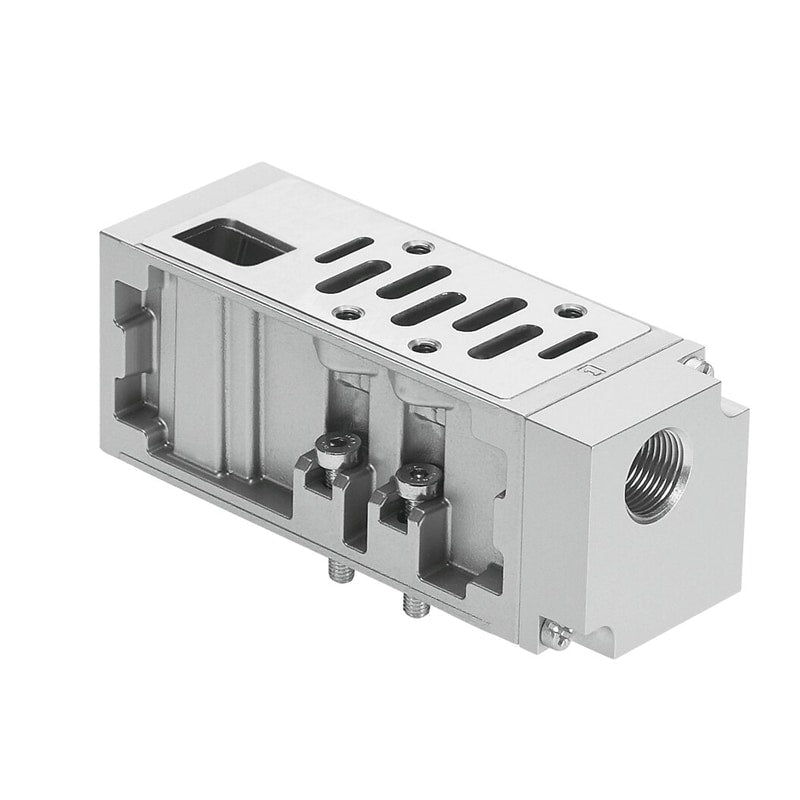

Vertical pressure supply plate
VABF-S1-1-P1A3-G38
549100
GTIN 4052568093716
Vendor Festo
Regular price
$92.05
Unit price
VABF-S1-1-P1A3-G38 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-S1-1-P1A3-G38
Regular price
$92.05
Unit price
VABF-S1-1-P1A3-G38 is backordered and will ship as soon as it is back in stock.
vertical pressure supply plate VABF-S1-1-P1A3-G38 For valve terminal VTSA, standard port pattern to 5599-1, 5599-2, for mounting between manifold sub-base and valve. Width=42 mm, Based on the standard=ISO 5599-1, Assembly position=Any, Pneumatic vertical stacking=Alternative pressure supply for 1, Operating pressure=-0,9 - 10 bar
| Width | 42 mm |
|---|---|
| Based on the standard | ISO 5599-1 |
| Assembly position | Any |
| Pneumatic vertical stacking | Alternative pressure supply for 1 |
| Operating pressure | '-0.9 ... 10 bar |
| Standard nominal flow rate | 1,300 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 340 g |
| Vertical stacking type of mounting | on manifold blockon individual sub-base |
