VAEM-S6-C-S10-R5
549049
GTIN 4052568190330
Vendor Festo
Regular price
$282.86
Unit price
VAEM-S6-C-S10-R5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAEM-S6-C-S10-R5
Regular price
$282.86
Unit price
VAEM-S6-C-S10-R5 is backordered and will ship as soon as it is back in stock.

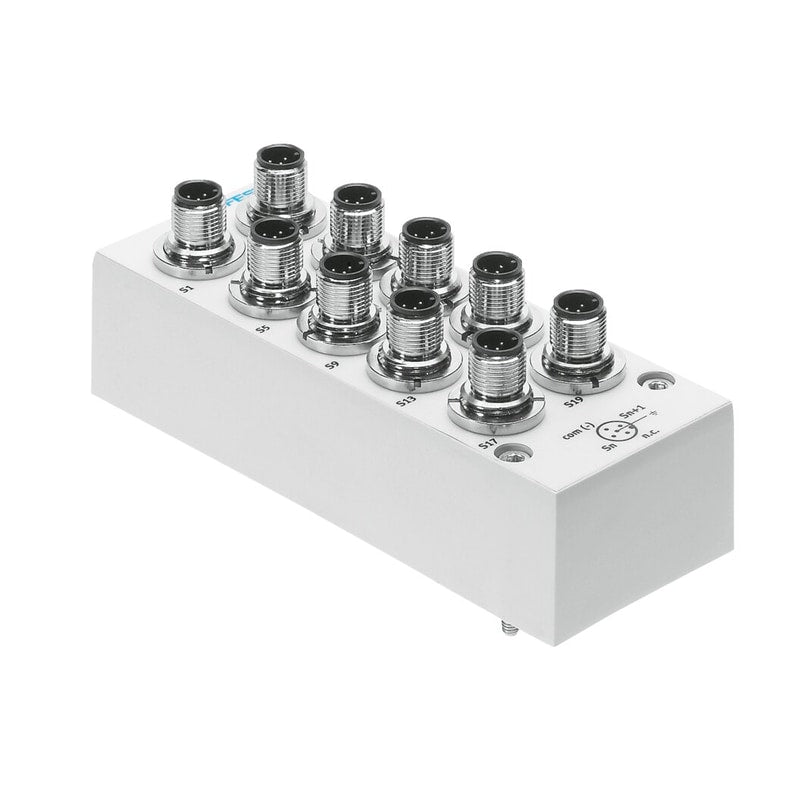

cover VAEM-S6-C-S10-R5 Up to 20 single pilot valves or 10 bistable valves can be connected. Max. number of valve positions=(* 10 with bistable valves, * 20 with monostable valves), Max. residual current=10 A, Nominal operating voltage DC=24 V, Permissible voltage fluctuation=+/- 10 %, Corrosion resistance classification CRC=0 - No corrosion stress
| Max. number of valve positions | 10 with bistable valves20 with monostable valves |
|---|---|
| Max. residual current | 0.416666666666667 |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuation | '+/- 10 % |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 230 g |
| Number of electrical connections | 10 |
| Electrical connection | PlugM125-pin |
| Material housing | PA |
