VAEM-S6-C-S6-R5
549048
GTIN 4052568190323
Vendor Festo
Regular price
$216.20
Unit price
VAEM-S6-C-S6-R5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAEM-S6-C-S6-R5
Regular price
$216.20
Unit price
VAEM-S6-C-S6-R5 is backordered and will ship as soon as it is back in stock.

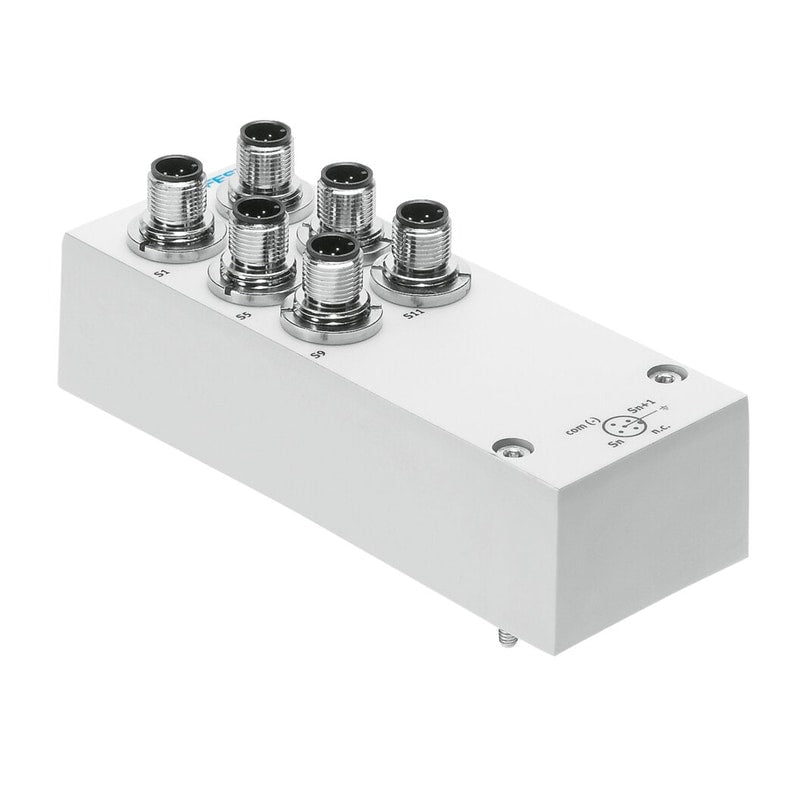

cover VAEM-S6-C-S6-R5 Up to 12 single pilot valves or 6 bistable valves can be connected. Max. number of valve positions=(* 12 with monostable valves, * 6 with bistable valves), Max. residual current=10 A, Nominal operating voltage DC=24 V, Permissible voltage fluctuation=+/- 10 %, Corrosion resistance classification CRC=0 - No corrosion stress
| Max. number of valve positions | 12 with monostable valves6 with bistable valves |
|---|---|
| Max. residual current | 0.416666666666667 |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuation | '+/- 10 % |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 200 g |
| Number of electrical connections | 6 |
| Electrical connection | PlugM125-pin |
| Material housing | PA |
