Multi-pin node
VABE-S6-LT-C-S10-R5
549047
GTIN 4052568190316
Vendor Festo
Regular price
$381.86
Unit price
VABE-S6-LT-C-S10-R5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABE-S6-LT-C-S10-R5
Regular price
$381.86
Unit price
VABE-S6-LT-C-S10-R5 is backordered and will ship as soon as it is back in stock.

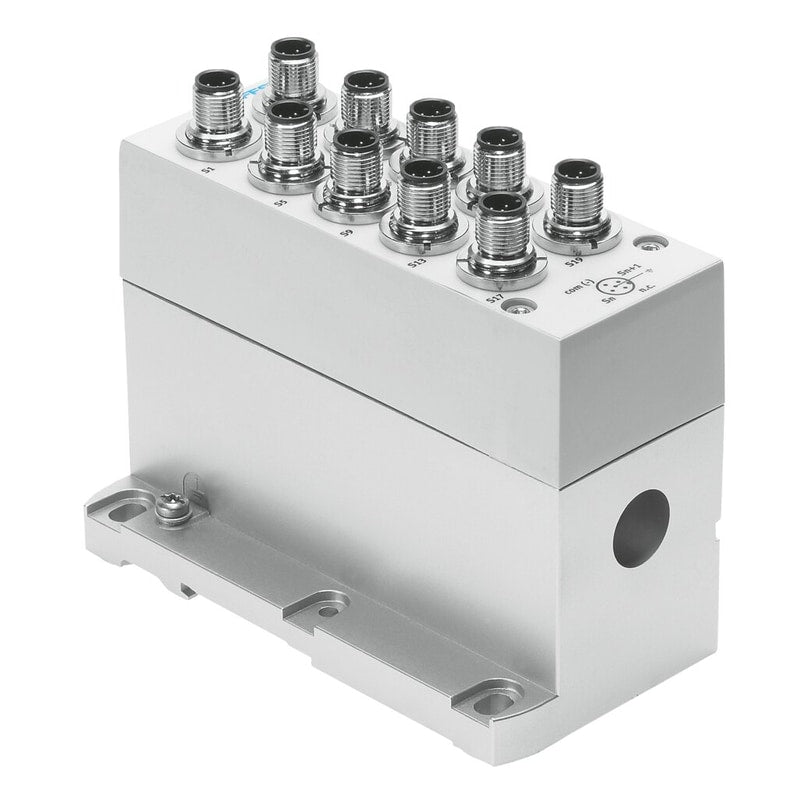

multi-pin node VABE-S6-LT-C-S10-R5 For valve terminals VTSA and VTSA-F. Assembly position=Any, Max. number of valve positions=(* 10 with bistable valves, * 20 with monostable valves), Max. residual current=10 A, Nominal operating voltage DC=24 V, Permissible voltage fluctuation=+/- 10 %
| Assembly position | Any |
|---|---|
| Max. number of valve positions | 10 with bistable valves20 with monostable valves |
| Max. residual current | 0.416666666666667 |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuation | '+/- 10 % |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 790 g |
| Number of electrical connections | 10 |
| Electrical connection | Multi-pin plugPlugM125-pin |
| Material cover | PA |
| Material housing | Aluminium die cast |
