Electrical interface

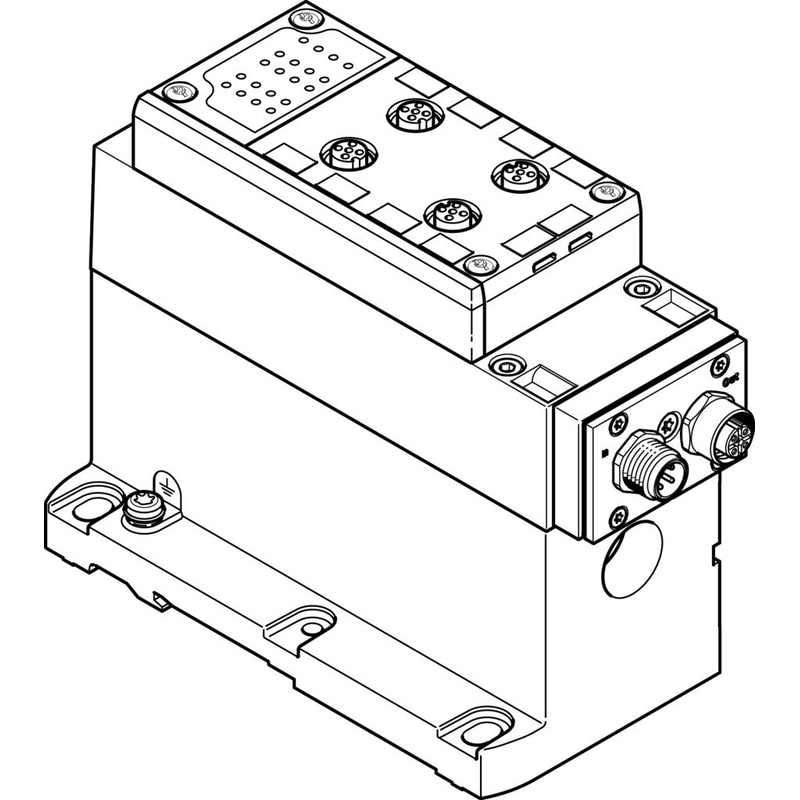

VABE-S6-1LF-C-A4-E
549042
GTIN 4052568190262
Vendor Festo
Regular price
$435.74
Unit price
VABE-S6-1LF-C-A4-E is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABE-S6-1LF-C-A4-E
Regular price
$435.74
Unit price
VABE-S6-1LF-C-A4-E is backordered and will ship as soon as it is back in stock.
electrical interface VABE-S6-1LF-C-A4-E Assembly position=Any, Fieldbus interface=(* Socket M12x1/4-pin, * Plug, M12x, 4-pin), Max. number of solenoid coils=4, Number of slaves per device=1, Maximum number of outputs=4
| Assembly position | Any |
|---|---|
| Fieldbus interface | Socket M12x1/4-pinPlug, M12x, 4-pin |
| Max. number of solenoid coils | 4 |
| Number of slaves per device | 1 |
| Maximum number of outputs | 4 |
| Maximum number of inputs | 4 |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuation | '+/- 10 % |
| CE mark (see declaration of conformity) | to EU directive for EMCto EU directive low-voltage devices |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Storage temperature | '-20 ... 60 °C |
| Relative air humidity | 0 - 90 % |
| Protection class | IP65 |
