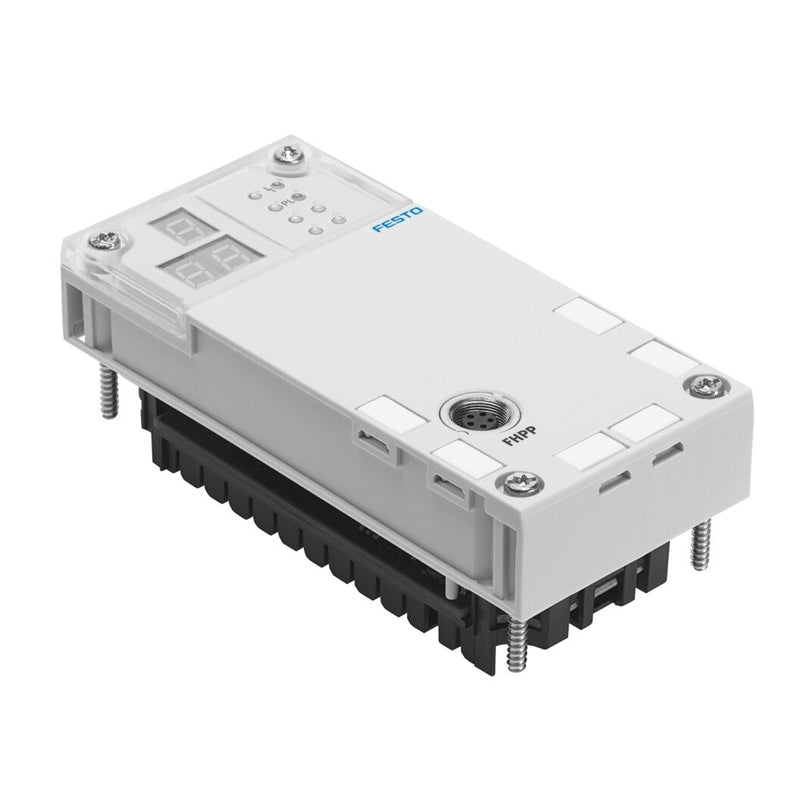

Servo pneumatic controller
CPX-CMAX-C1-1
548932
GTIN 4052568190248
Vendor Festo
- No. of axis strings
- 1
- Axes per string
- 1
Regular price
$987.56
Unit price
CPX-CMAX-C1-1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-CMAX-C1-1
Regular price
$987.56
Unit price
CPX-CMAX-C1-1 is backordered and will ship as soon as it is back in stock.
axis controller CPX-CMAX-C1-1 Dimensions W x L x H=50 mm x 107 mm x 55 mm, Max connector cable length=30 m, Operating modes=(* Record mode, * Direct mode), Diagnosis=(* - Module-orientated diagnostics, * - Via local 7 segment display), Max. no. of modules=8
| Dimensions W x L x H | 50 mm x 107 mm x 55 mm |
|---|---|
| Max connector cable length | 30 m |
| Operating modes | Record modeDirect mode |
| Diagnosis | '- Module-orientated diagnostics- Via local 7 segment display |
| Max. no. of modules | 8 |
| Regulating function | Force control |
| Display | Seven-segment display |
| Status displays | Power LoadDisplay/Error Axix XMC Axis XModule status |
| Protection (short circuit) | Internal electronic fuse for operating voltageInternal electronic fuse, load voltage |
| Operating voltage range DC | 18 ... 30 V |
| Load voltage range DC | 20 ... 30 V |
| Nominal operating voltage DC | 24 V |
| Nominal voltage DC | 24 V |
