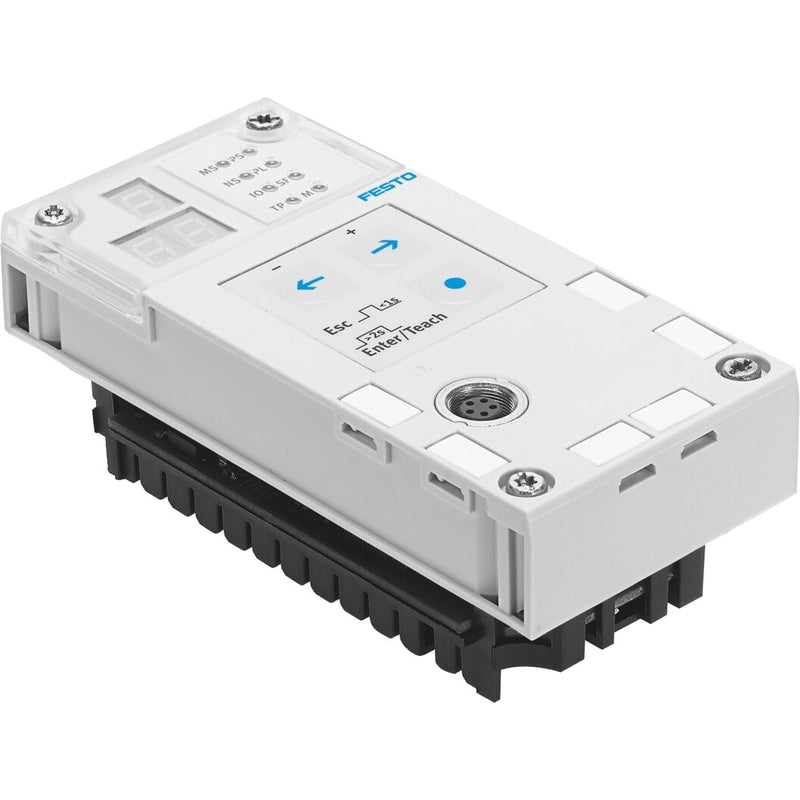

End position controller
CPX-CMPX-C-1-H1
548931
GTIN 4052568190231
Vendor Festo
- No. of axis strings
- 1
- Axes per string
- 1
Regular price
$683.16
Unit price
CPX-CMPX-C-1-H1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-CMPX-C-1-H1
Regular price
$683.16
Unit price
CPX-CMPX-C-1-H1 is backordered and will ship as soon as it is back in stock.
end-position controller CPX-CMPX-C-1-H1 for modular electrical terminal CPX. Dimensions W x L x H=50 mm x 107 mm x 55 mm, Diagnosis=(* - Module-orientated diagnostics, * - Via local 7 segment display), Max. no. of modules=10, Display=Seven-segment display, Control elements=3 keys
| Dimensions W x L x H | 50 mm x 107 mm x 55 mm |
|---|---|
| Diagnosis | '- Module-orientated diagnostics- Via local 7 segment display |
| Max. no. of modules | 10 |
| Display | Seven-segment display |
| Control elements | 3 keys |
| Operating voltage range DC | 18 ... 30 V |
| Load voltage range DC | 20 ... 30 V |
| Nominal operating voltage DC | 24 V |
| Nominal voltage DC | 24 V |
| Current consumption at nominal operating voltage | 80 mA |
| Permissible load current | 2.5 A |
| Continuous shock resistance as per DIN/IEC 68, part 2-29 | Tested in accordance with severity level 2 |
| Relative air humidity | 5 - 95 %non-condensing |
