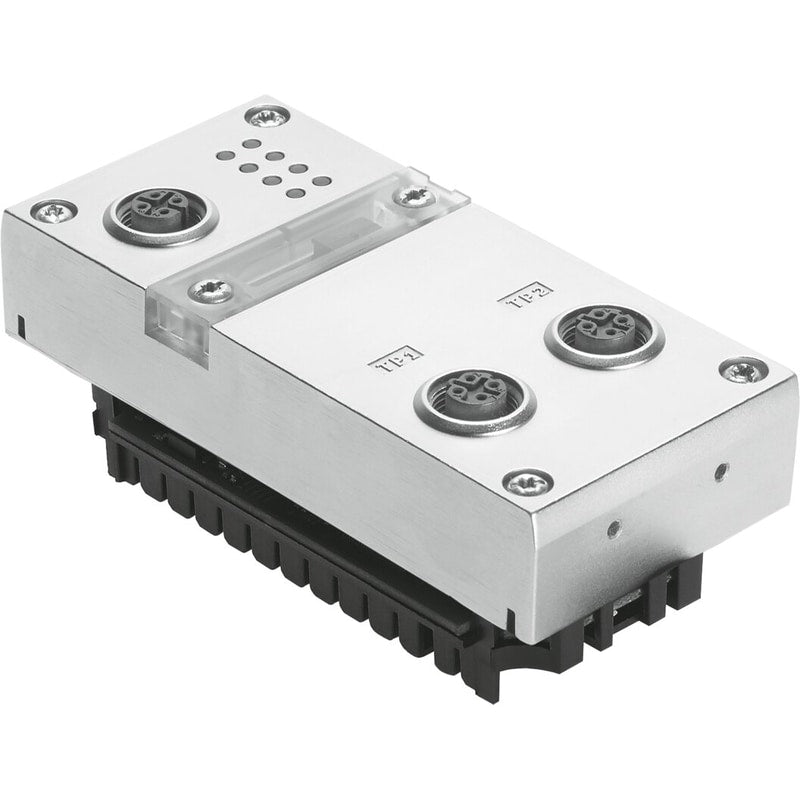

CPX-FB33

bus node CPX-FB33 for modular electrical terminal CPX. Dimensions W x L x H=(* (including interlinking block), * 50 mm x 107 mm x 50 mm), Fieldbus interface=2x socket, M12x1, 4-pin, D-coded, Device-specific diagnostics=(* Channel and module-orientated diagnostics, * - Undervoltage of modules, * - Diagnostic memory), Configuration support=GSDML file, Parameters configuring=(* - Diagnostic behaviour, * - Failsafe response, * - Forcing of channels, * - Signal setup, * - System parameter)

Dimensions W x L x H	(including interlinking block)50 mm x 107 mm x 50 mm
Fieldbus interface	2x socket, M12x1, 4-pin, D-coded
Device-specific diagnostics	Channel and module-orientated diagnostics- Undervoltage of modules- Diagnostic memory
Configuration support	GSDML file
Parameters configuring	'- Diagnostic behaviour- Failsafe response- Forcing of channels- Signal setup- System parameter
Additional functions	Acyclic data access via fieldbusAcyclic data access via EthernetFast Start Up (FSU)Channel-oriented diagnostics via fieldbusStart-up parameterisation in normal text via fieldbusSystem status can be represented using process dataAdditional diagnostics interface for operator units
Control elements	DIL switchesOptional memory card
Baud rate	100 MBit/s
Operating voltage range DC	18 ... 30 V
Intrinsic current consumption at operating voltage	Typ. 120 mA
Nominal operating voltage DC	24 V
Corrosion resistance classification CRC	0 - No corrosion stress
Storage temperature	'-20 ... 70 °C
