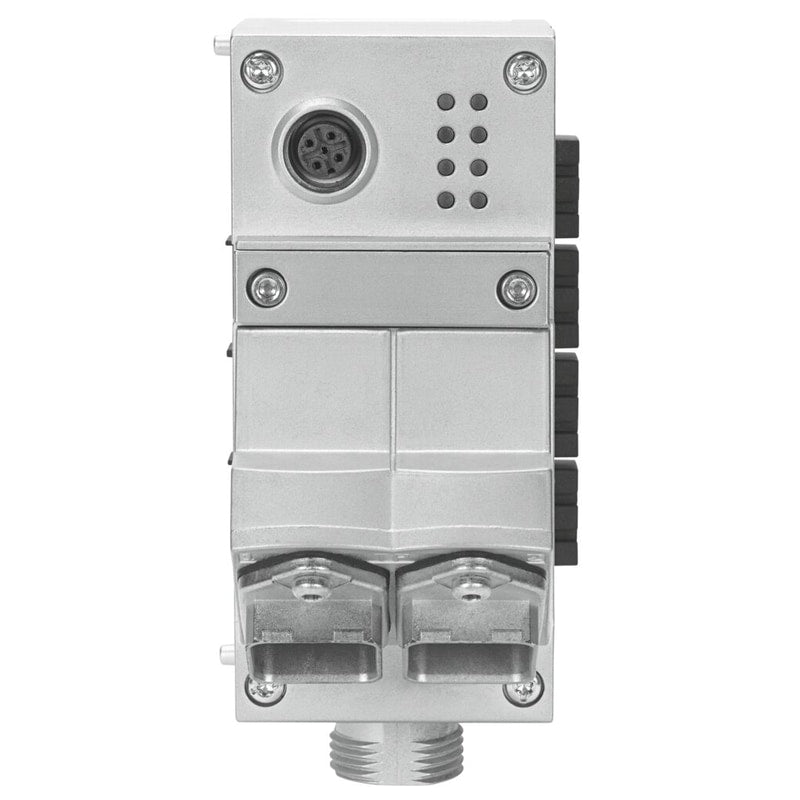

Bus node
CPX-M-FB34
548751
GTIN 4052568016166
Vendor Festo
Regular price
$1,007.85
Unit price
CPX-M-FB34 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-M-FB34
Regular price
$1,007.85
Unit price
CPX-M-FB34 is backordered and will ship as soon as it is back in stock.
bus node CPX-M-FB34 for modular electrical terminal CPX. Dimensions W x L x H=(* (including interlinking block), * 50 mm x 107 mm x 80 mm), Fieldbus interface=2x RJ45 push-pull socket, AIDA, Device-specific diagnostics=(* Channel and module-orientated diagnostics, * - Undervoltage of modules, * - Diagnostic memory), Configuration support=GSDML file, Parameters configuring=(* - Diagnostic behaviour, * - Failsafe response, * - Forcing of channels, * - Signal setup, * - System parameter)
| Dimensions W x L x H | (including interlinking block)50 mm x 107 mm x 80 mm |
|---|---|
| Fieldbus interface | 2x RJ45 push-pull socket, AIDA |
| Device-specific diagnostics | Channel and module-orientated diagnostics- Undervoltage of modules- Diagnostic memory |
| Configuration support | GSDML file |
| Parameters configuring | '- Diagnostic behaviour- Failsafe response- Forcing of channels- Signal setup- System parameter |
| Additional functions | Acyclic data access via fieldbusAcyclic data access via EthernetFast Start Up (FSU)Channel-oriented diagnostics via fieldbusStart-up parameterisation in normal text via fieldbusSystem status can be represented using process dataAdditional diagnostics interface for operator units |
| Control elements | DIL switchesOptional memory card |
| Baud rate | 100 MBit/s |
| Operating voltage range DC | 18 ... 30 V |
| Intrinsic current consumption at operating voltage | Typ. 120 mA |
| Nominal operating voltage DC | 24 V |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Storage temperature | '-20 ... 70 °C |
