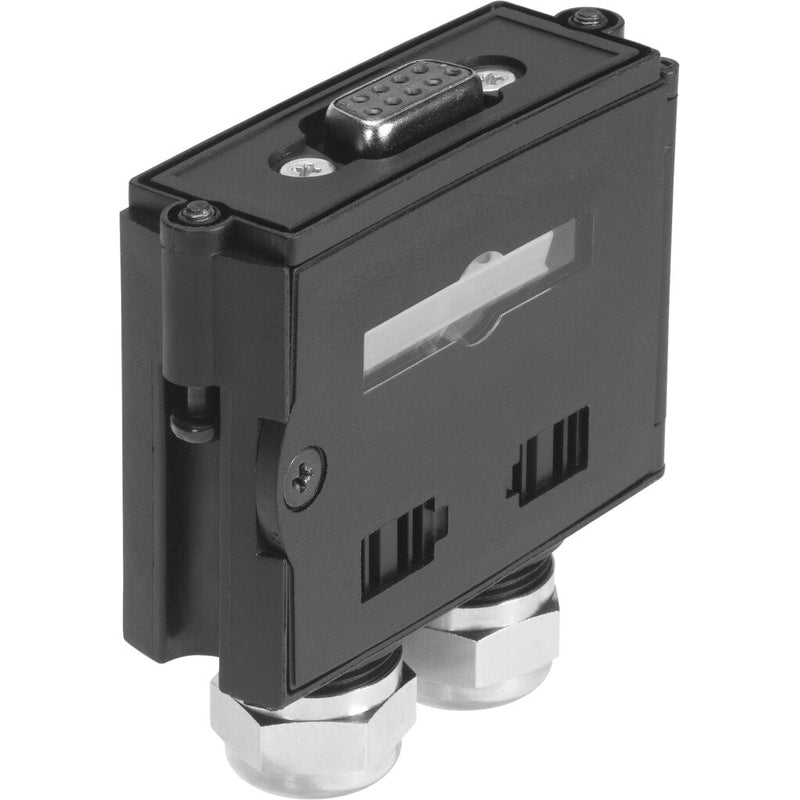

Multi-pin plug socket
NECA-S1G9-P9-MP1
548719
GTIN 4052568093327
Vendor Festo
- Electrical connection 1
- Socket, Sub-D, 9-pin
- Electrical connection 2
- Screw terminal, 9-pin
- Connection cross section
- 0.34 mm² - 1 mm²
- Degree of protection
- IP65 - as per IEC 60529
Regular price
$75.04
Unit price
NECA-S1G9-P9-MP1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NECA-S1G9-P9-MP1
Regular price
$75.04
Unit price
NECA-S1G9-P9-MP1 is backordered and will ship as soon as it is back in stock.
| Type code | NECA |
|---|---|
| Type of mounting | With through-hole |
| Product weight | 60 g |
| Electrical connection 1 | Socket, Sub-D, 9-pin |
| Electrical connection 2 | Screw terminal, 9-pin |
| DC operating voltage range | 21.6 V ... 26.4 V |
| Nominal operating voltage DC | 24 V |
| Current rating at 40°C | 0.0416666666666667 |
| Approved cable diameter | 5 mm ... 10 mm |
| Connection cross section | 0.34 mm² ... 1 mm² |
| Information on port cross section | 0.34–0.5 mm² when using cable end sleeves |
| Degree of protection | as per IEC 60529IP65 |
| Ambient temperature | 0 °C ... 50 °C |
| Storage temperature | -20 °C ... 70 °C |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Housing material | PA-reinforced |
| Material of union nut | Brass |
| Material of screws | Steel |
| Seals material | NBR |
| Relative air humidity | 95 %Non-condensing |
