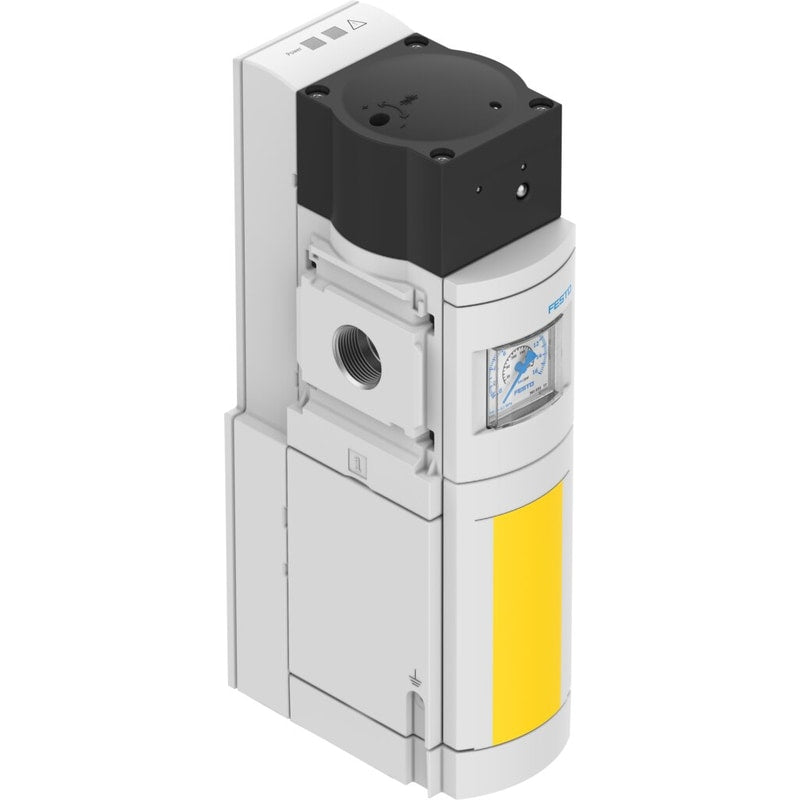

Soft start/quick exhaust valve
MS6-SV-1/2-E-10V24-AG
548715
GTIN 4052568190118
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 4300 l/min
- Operating pressure
- 3.5 bar - 10 bar
- Actuation type
- Electrical
Regular price
$1,010.81
Unit price
Soft start/quick exhaust valve MS6-SV-1/2-E-10V24-AG is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6-SV-1/2-E-10V24-AG
Regular price
$1,010.81
Unit price
Soft start/quick exhaust valve MS6-SV-1/2-E-10V24-AG is backordered and will ship as soon as it is back in stock.
soft-start/quick exhaust valve MS6-SV-1/2-E-10V24-AG With pressure gauge. Series=MS, Size=6, Grid dimension=62 mm, Safety function=(* Exhausting, * Protection against unexpected start-up), Safety Integrity Level (SIL)=Exhausting / SIL 3
| Series | MS |
|---|---|
| Size | 6 |
| Grid dimension | 62 mm |
| Safety function | ExhaustingPrevention of unexpected start-up (pressurisation) |
| Safety Integrity Level (SIL) | Exhausting / SIL 3Prevention of unexpected start-up (pressurisation)/SIL 3 |
| Performance level (PL) | Vent/up to Category 4, PL ePrevention of unexpected start-up (pressurisation)/up to category 4, Performance Level e |
| Note on forced dynamisation | Switching frequency min. 1/month |
| Design structure | Piston seat |
| Freedom from overlap | No |
| Type of actuation | electrical |
| Pilot air supply | Internal |
| Sealing principle | soft |
| Exhaust-air function | not throttleable |
