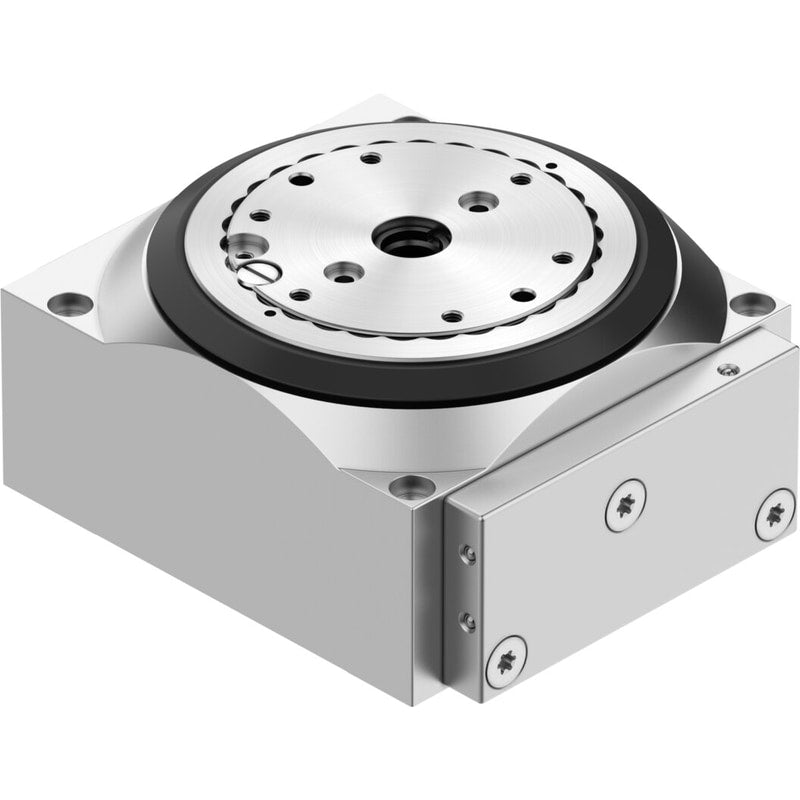

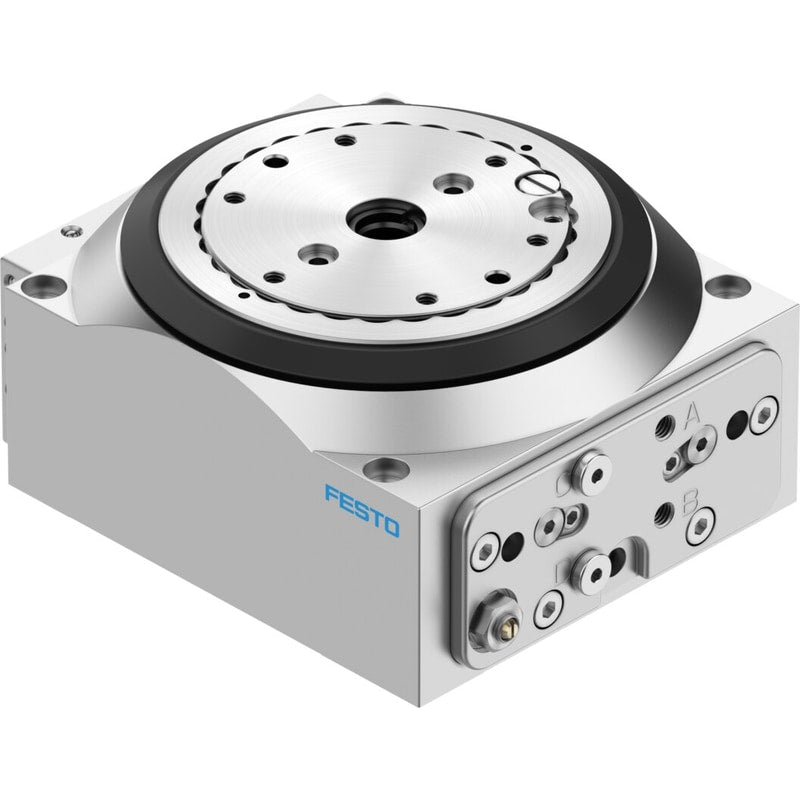

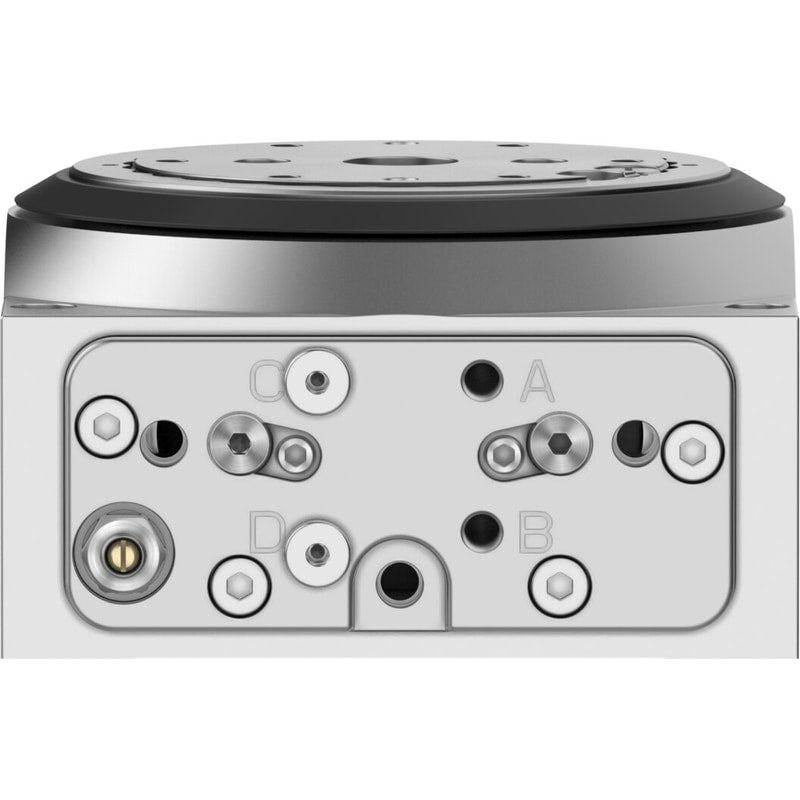

Rotary indexing table
DHTG-65-12-A
548080
GTIN 4052568189686
Vendor Festo
- Size
- 65
- Theoretical torque at 6 bar
- 2.1 Nm
- Spacing
- 12
Regular price
$3,379.24
Unit price
DHTG-65-12-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DHTG-65-12-A
Regular price
$3,379.24
Unit price
DHTG-65-12-A is backordered and will ship as soon as it is back in stock.
rotary indexing table DHTG-65-12-A For position sensing. Size=65, Parallelity poppet valve=<= 0,04 mm, Axial ecc poppet valve=<= 0,02 mm, Concentricity poppet valve=<= 0,02 mm, Repetition accuracy of the swivel angle=<= 0,03 deg
| Size | 65 |
|---|---|
| Parallelity poppet valve | <= 0.04 mm |
| Axial ecc poppet valve | <= 0.02 mm |
| Concentricity poppet valve | <= 0.02 mm |
| Repetition accuracy of the swivel angle | <= 0.03 deg |
| Cushioning | YSRJ: Shock absorber, hard characteristic curve, adjustable |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | Gear couplingRack and pinionguided motion sequence |
| Position detection | For inductive sensors |
| Pitch | 12 |
| Operating pressure | 4 ... 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
