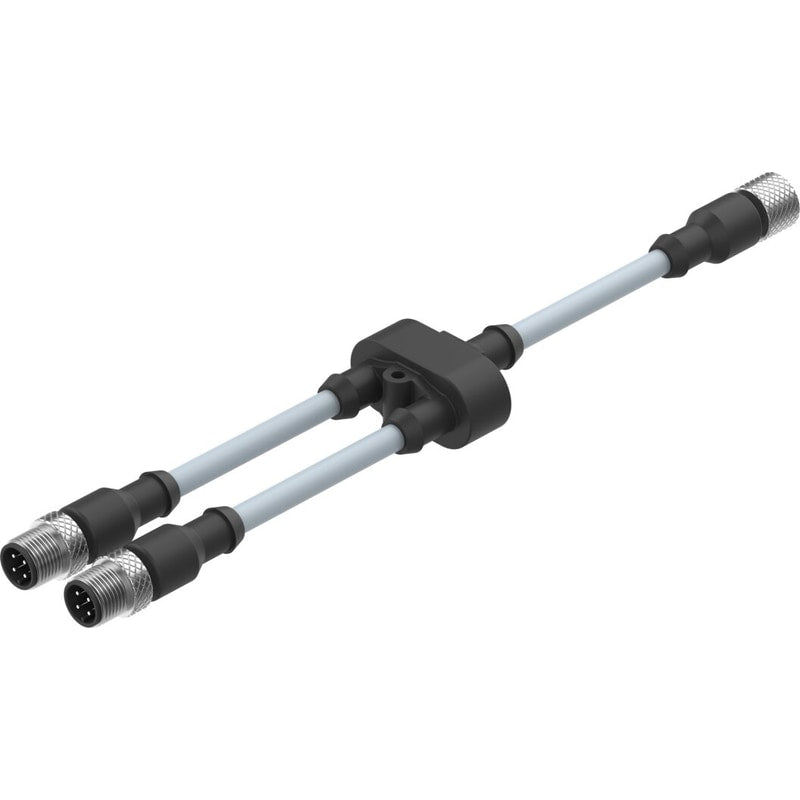

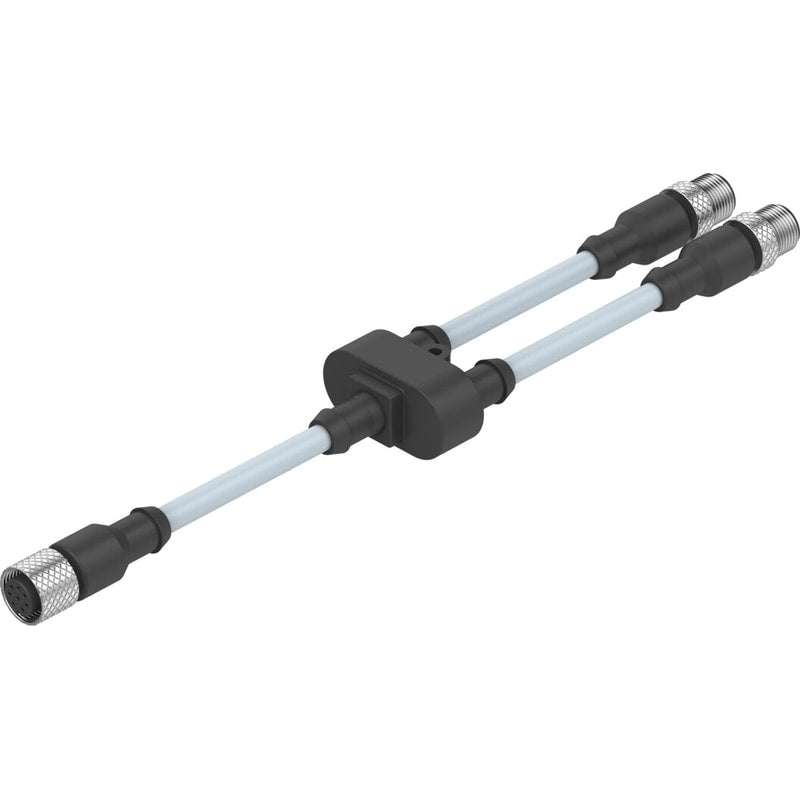

Connecting cable
NEBV-M12G8-KD-3-M12G4
547888
GTIN 4052568189204
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
Regular price
$201.96
Unit price
NEBV-M12G8-KD-3-M12G4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBV-M12G8-KD-3-M12G4
Regular price
$201.96
Unit price
NEBV-M12G8-KD-3-M12G4 is backordered and will ship as soon as it is back in stock.
connecting cable NEBV-M12G8-KD-3-M12G4 For VPPM proportional-pressure regulator. Conforms to standard=(* DIN 47100, * EN 61076-2-101), Design structure=Y-distributor with cables on both sides, Distributor type=1 to 2, Additional functions=Distribution of the analogue inputs and outputs of a proportional pressure regulator, Cable identification=Without inscription label holder
| Conforms to standard | DIN 47100EN 61076-2-101 |
|---|---|
| Design structure | Y-distributor with cables on both sides |
| Distributor type | 1 to 2 |
| Additional functions | Distribution of the analogue inputs and outputs of a proportional pressure regulator |
| Cable identification | Without inscription label holder |
| Mounting type | With through-hole for M3 screw |
| Electrical connection 1, function | Field device side |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Plug socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded to EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 5 |
