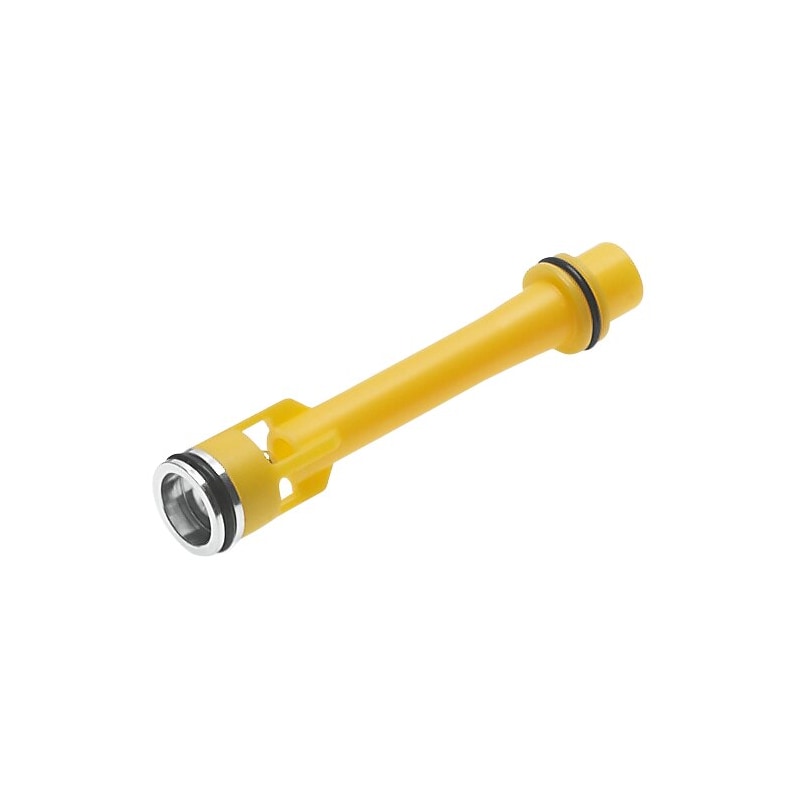

Vacuum generator cartridge
VN-14-H
547699
GTIN 4052568092894
Vendor Festo
- Nominal width of Laval nozzle
- 1.4 mm
- Max. vacuum
- 92 %
- Max. suction rate with respect to atmosphere
- 48.8 l/min
Regular price
$54.09
Unit price
VN-14-H Vacuum generator cartridge is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VN-14-H
Regular price
$54.09
Unit price
VN-14-H Vacuum generator cartridge is backordered and will ship as soon as it is back in stock.
vacuum generator cartridge VN-14-H For VN vacuum generators, high vacuum. Nominal size, Laval nozzle=1,4 mm, Assembly position=Any, Ejector characteristic=(* Standard, * High vacuum), Operating pressure=1 - 8 bar, Operating pressure for max. vacuum=3,5 bar
| Nominal size, Laval nozzle | 1.4 mm |
|---|---|
| Assembly position | Any |
| Ejector characteristic | StandardHigh vacuum |
| Operating pressure | 1 ... 8 bar |
| Operating pressure for max. vacuum | 3.5 bar |
| Max. vacuum | 0.92 |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 48.8 l/min |
| Air supply time at nominal operating pressure | 0.48 s |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Medium temperature | 0 ... 60 °C |
