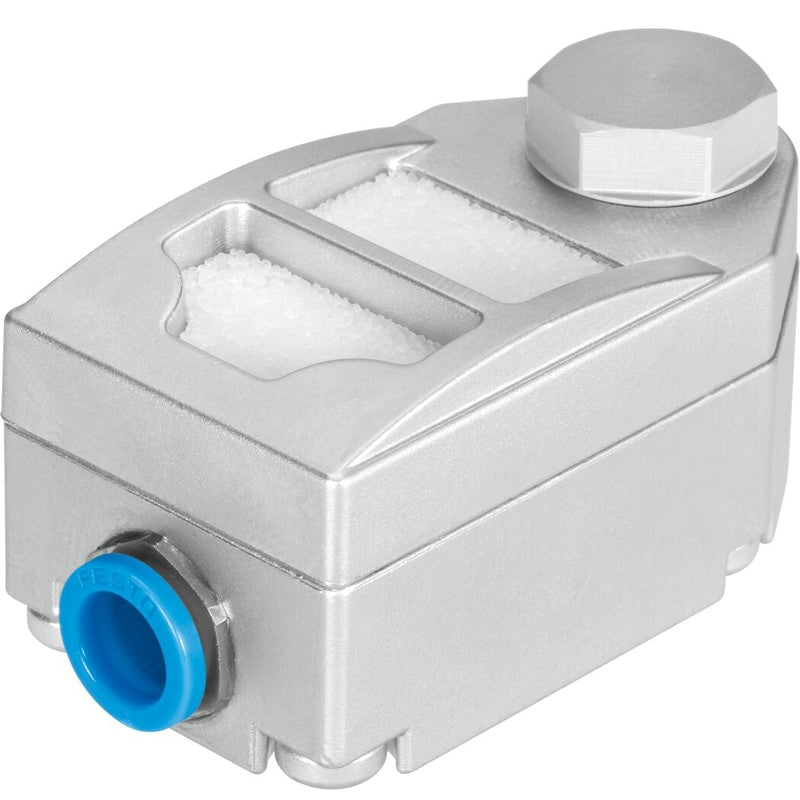

Quick exhaust valve
VBQF-U-G18-Q6
547532
GTIN 4052568092849
Vendor Festo
- Valve function
- Quick exhaust
- Pneumatic connection 2
- G1/8
- Standard flow rate exhaust 6-> 0 bar
- 1300 l/min
- Operating pressure
- 0.5 bar - 10 bar
- Type of mounting
- Screw-in
Regular price
$60.90
Unit price
VBQF-U-G18-Q6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VBQF-U-G18-Q6
Regular price
$60.90
Unit price
VBQF-U-G18-Q6 is backordered and will ship as soon as it is back in stock.
Stop valve with manual override option.
| Type code | HGL |
|---|---|
| Maritime classification | See certificate |
| Valve function | Unlockable non-return function |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 |
| Pilot air port 21 | G1/4 |
| Actuation type | Pneumatic |
| Type of mounting | With external threadScrew-in |
| Operating pressure | 0.5 bar ... 10 bar |
| Pilot pressure | 1 bar ... 10 bar |
| Ambient temperature | -10 °C ... 60 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Mounting position | Any |
| Symbol | 00991456 |
| Standard flow rate 1->2 (6-0) | 1500 l/min |
| Standard nominal flow rate 1->2 (6-5) | 1100 l/min |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Storage temperature | -10 °C ... 60 °C |
| Temperature of medium | -10 °C ... 60 °C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Nominal tightening torque | 12.5 Nm |
| Tolerance for nominal tightening torque | ± 10% |
| Product weight | 62.9 g |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Seals material | NBR |
| Hollow bolt material | AnodizedWrought aluminum alloy |
| Releasing ring material | POM |
| Non-return collar material | NBR |
| Swivel joint material | Die-cast zinc |
