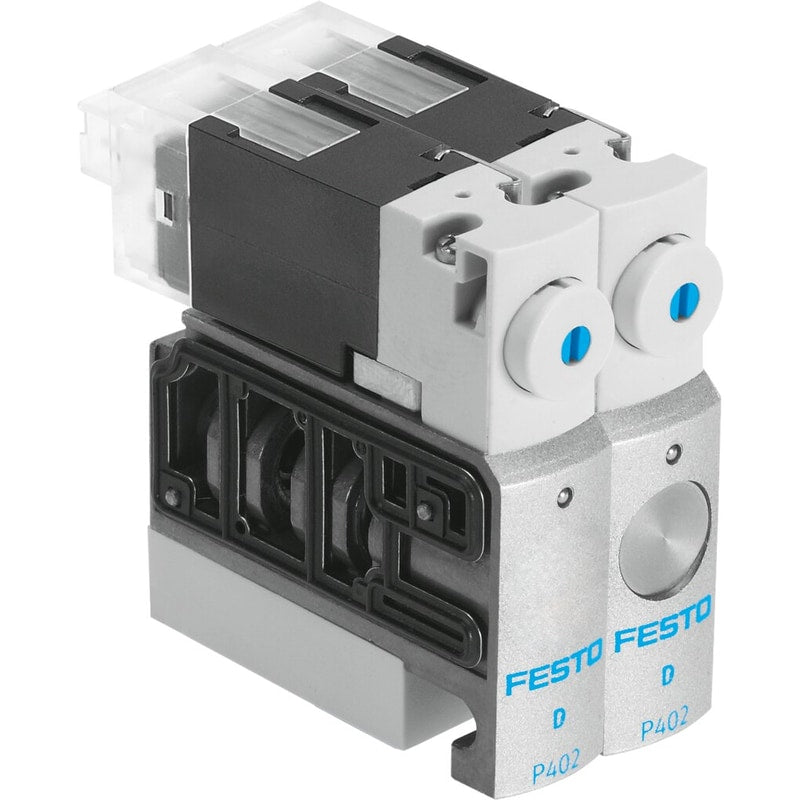

Air solenoid valve
CPVSC1-M1LH-J-H-M5
547323
GTIN 4052568188139
Vendor Festo
- Valve function
- 5/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 170 l/min
- Pneumatic connection 1
- Common port
- Actuation type
- Electrical
Regular price
$302.09
Unit price
CPVSC1-M1LH-J-H-M5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPVSC1-M1LH-J-H-M5
Regular price
$302.09
Unit price
CPVSC1-M1LH-J-H-M5 is backordered and will ship as soon as it is back in stock.

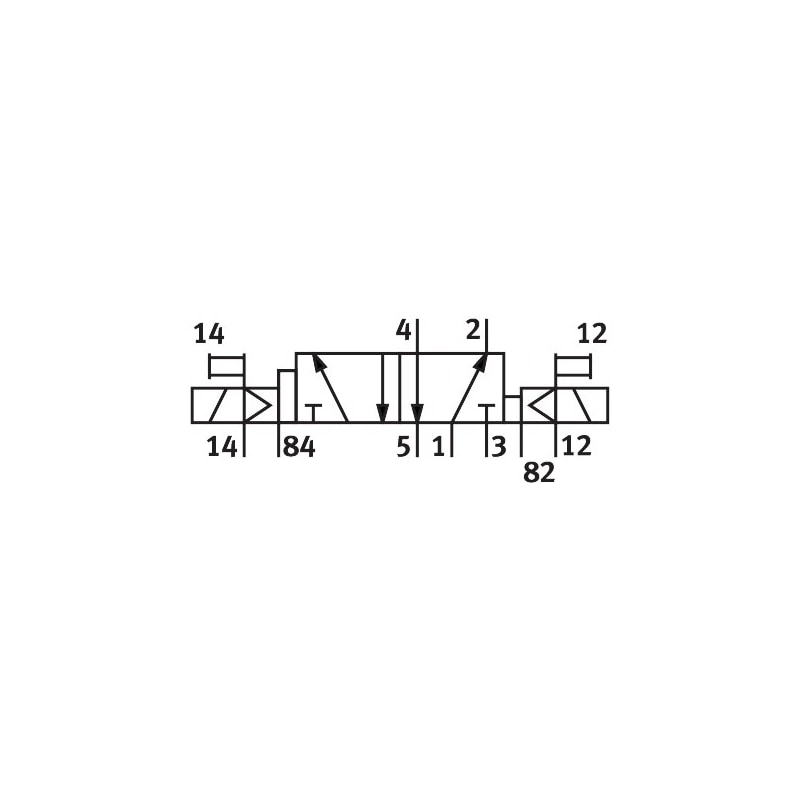

solenoid valve CPVSC1-M1LH-J-H-M5 For valve terminal CPV-SC, M5 connection. Valve function=5/2 bistable, Type of actuation=electrical, Valve size=10 mm, Standard nominal flow rate=170 l/min, Operating pressure=-0,9 - 7 bar
| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | electrical |
| Valve size | 10 mm |
| Standard nominal flow rate | 170 l/min |
| Operating pressure | '-0.9 ... 7 bar |
| Design structure | Piston slide |
| Protection class | IP40 |
| Exhaust-air function | not throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detentingPushing |
| Type of piloting | Piloted |
| Pilot air supply | external |
