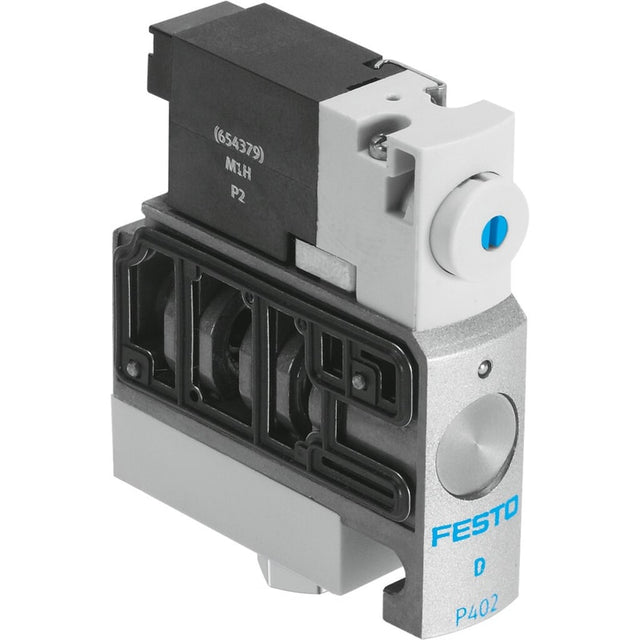

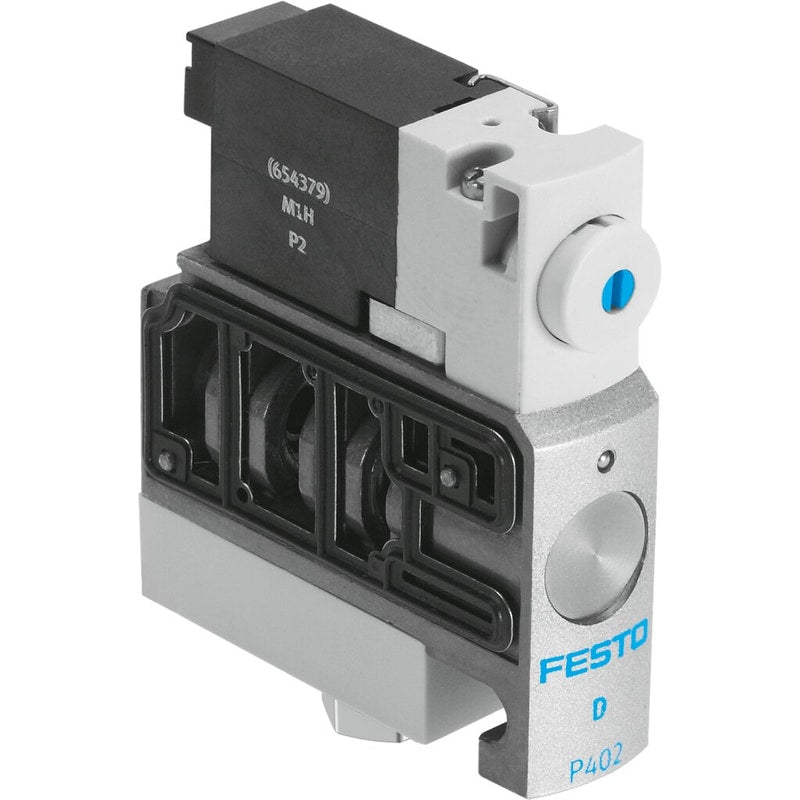

Air solenoid valve
CPVSC1-M1H-N-H-M5O
547290
GTIN 4052568187811
Vendor Festo
- Valve function
- 3/2, open, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 170 l/min
- Pneumatic connection 1
- Common port
- Actuation type
- Electrical
Regular price
$155.20
Unit price
CPVSC1-M1H-N-H-M5O is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPVSC1-M1H-N-H-M5O
Regular price
$155.20
Unit price
CPVSC1-M1H-N-H-M5O is backordered and will ship as soon as it is back in stock.
| Valve function | 3/2, open, monostable |
|---|---|
| Actuation type | Electrical |
| Valve size | 10 mm |
| Standard nominal flow rate | 170 l/min |
| Pneumatic working port | M5 |
| Operating voltage | 24V DC |
| Operating pressure | -0.9 bar ... 7 bar |
| Design | Piston gate valve |
| Reset method | Pneumatic spring |
| Degree of protection | IP40 |
| Type code | CPVSC1 |
| Exhaust air function | Without flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | DetentingNon-detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |
| Flow direction | Non-reversible |
| Symbol | 991402 |
| Pilot pressure | 3 bar ... 7 bar |
| Switching time off | 10 ms |
| On switching time | 10 ms |
| Max. positive test pulse with 0 signal | 500 µs |
| Coil characteristics | 24 V DC: 1.0 W |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Temperature of medium | -5 °C ... 50 °C |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 30.5 g |
| Electrical connection | 2-pinPlug |
| Type of mounting | With through-hole |
| Pilot exhaust air port 82/84 | Common port |
| Pneumatic connection 1 | Common port |
| Pneumatic connection 2 | M5 |
| Pneumatic port 3/5 combined | Common port |
| Pneumatic connection 4 | M5 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
