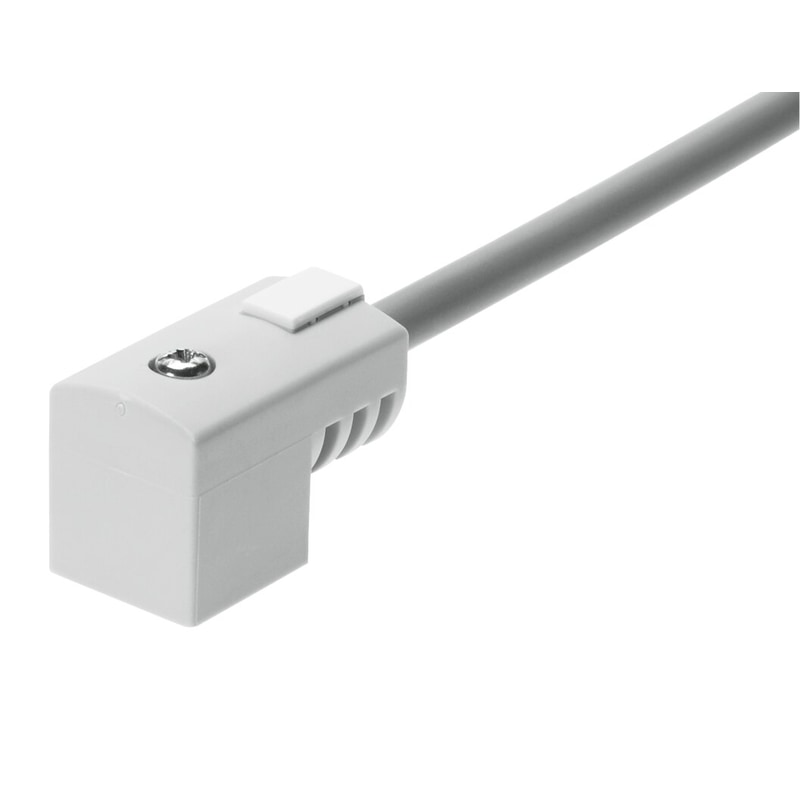

Plug socket with cable
KMEB-3-24-5
547271
GTIN 4052568051396
Vendor Festo
- Cable length
- 5 m
Regular price
$23.17
Unit price
KMEB-3-24-5 Plug socket with cable is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KMEB-3-24-5
Regular price
$23.17
Unit price
KMEB-3-24-5 Plug socket with cable is backordered and will ship as soon as it is back in stock.
| Type code | KMEB |
|---|---|
| Type of mounting | On air solenoid valve with M2.5 central screw |
| Product weight | 230 g |
| Electrical connection | 2-pinSocket, angledForm Cas per DIN EN 175301-803 |
| Nominal operating voltage DC | 24 V |
| Reverse polarity protection | for all electrical connections |
| Protective earth connection | Not available |
| Cable length | 5 m |
| Cable characteristic | Standard |
| Cable diameter | 5.2 mm |
| Cable design | 2 x 0.75 mm² |
| Degree of protection | as per IEC 60529IP65 |
| Ambient temperature | -20 °C ... 80 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | PVC |
| Housing material | PC |
| Material of pin contacts | BronzeSilver-plated |
| Mounting position | Any |
