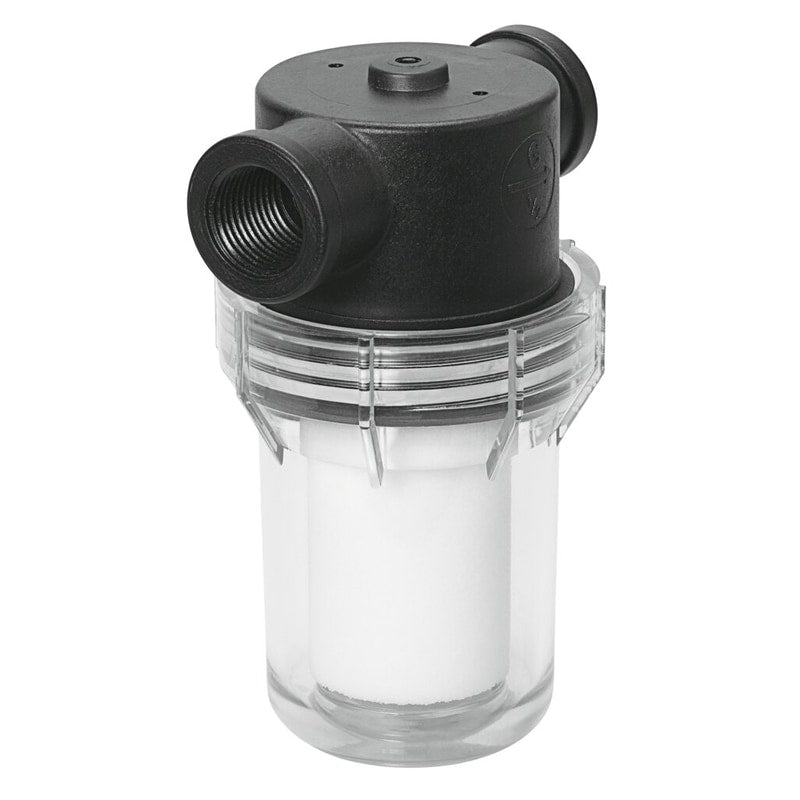

Vacuum filter
VAF-DB-1/4
547261
GTIN 4052568092702
Vendor Festo
Regular price
$105.37
Unit price
VAF-DB-1/4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAF-DB-1/4
Regular price
$105.37
Unit price
VAF-DB-1/4 is backordered and will ship as soon as it is back in stock.
vacuum filter VAF-DB-1/4 for filtering dirt particles Assembly position=Vertical, Grade of filtration=80 µm, Operating pressure=-0,95 - 0 bar, Note on operating pressure=Only for application in open vacuum systems, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]
| Assembly position | Vertical |
|---|---|
| Grade of filtration | 80 µm |
| Operating pressure | '-0.95 ... 0 bar |
| Note on operating pressure | Only for application in open vacuum systems |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Ambient temperature | '-5 ... 50 °C |
| Max. tightening torque | 8.7 Nm |
| Product weight | 71 g |
| Mounting type | Line installationwith wall/surface fixing |
| Pneumatic connection | G1/4 |
| Vacuum connection | G1/4 |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material seals | NBR |
