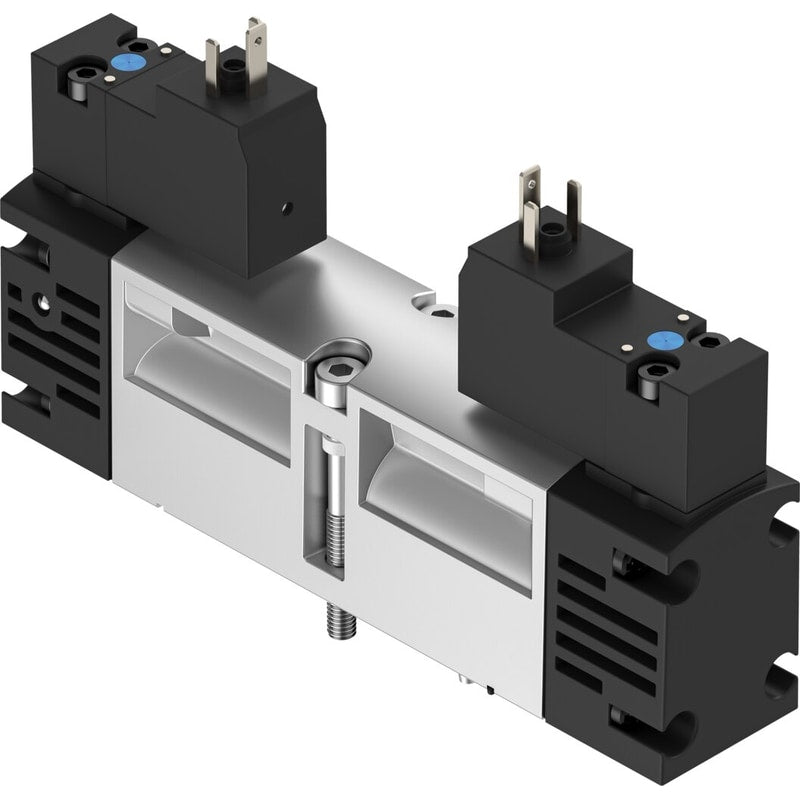

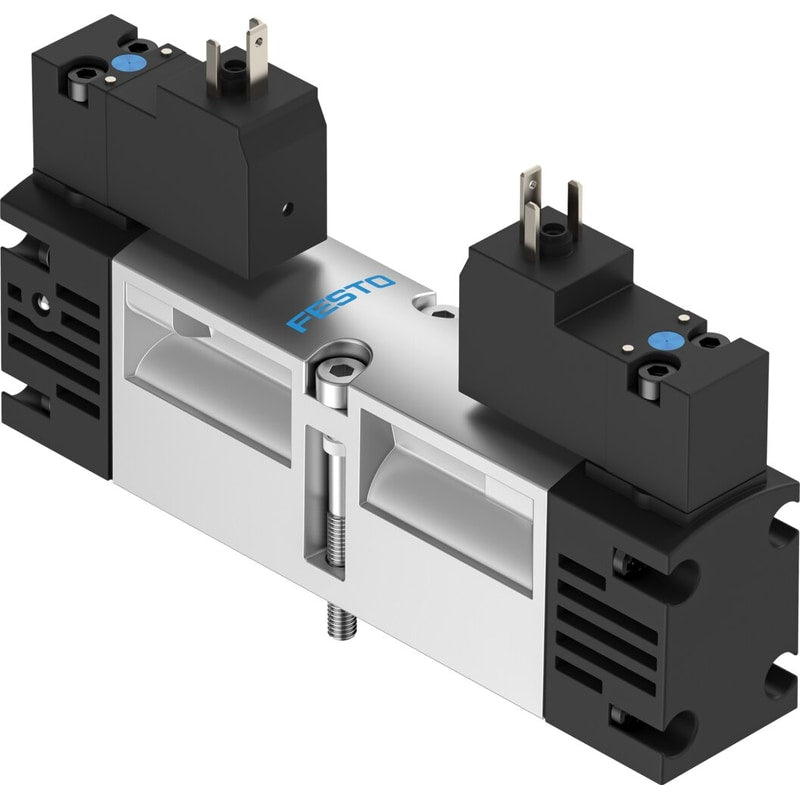

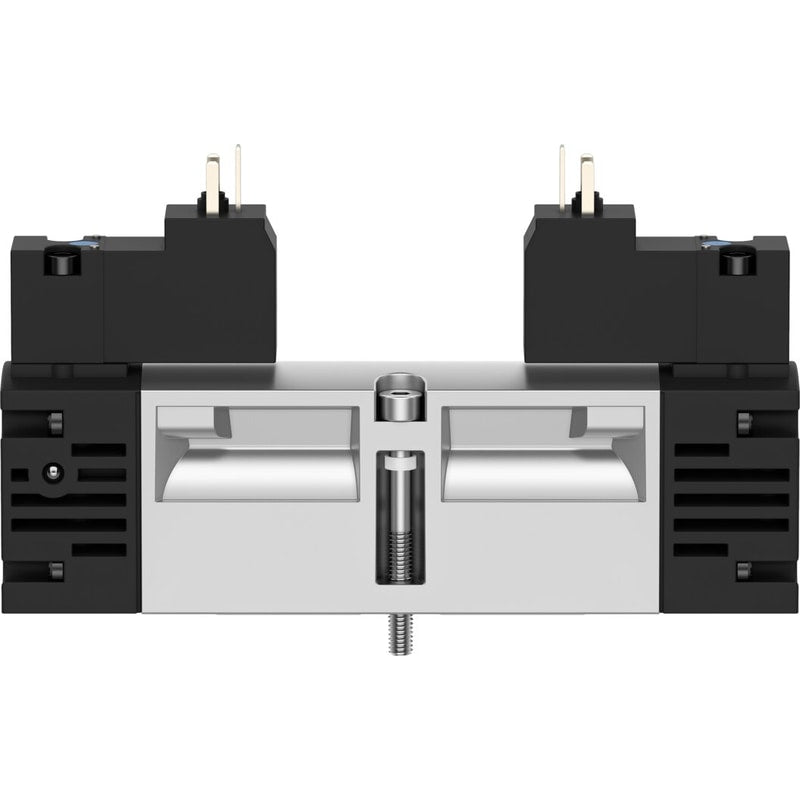

Air solenoid valve
VSVA-B-T32H-AH-A2-2AC1
547173
GTIN 4052568186890
Vendor Festo
- Valve function

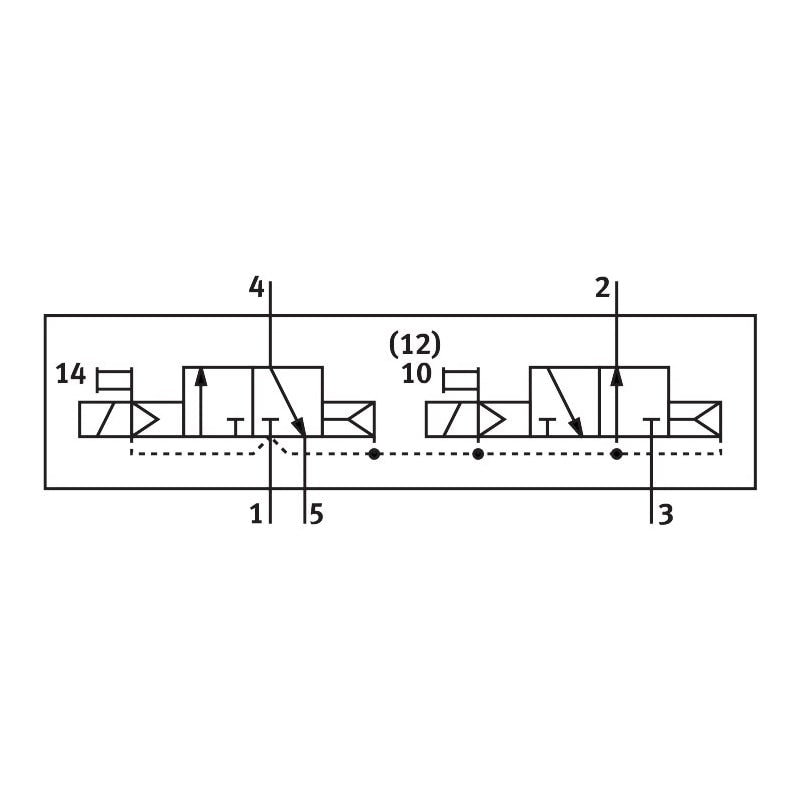

- 2x3/2, open/closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 400 l/min
- Pneumatic connection 1
- Sub-base, size 18 mm as per ISO 15407-1
- Actuation type
- Electrical
Regular price
$252.69
Unit price
VSVA-B-T32H-AH-A2-2AC1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSVA-B-T32H-AH-A2-2AC1
Regular price
$252.69
Unit price
VSVA-B-T32H-AH-A2-2AC1 is backordered and will ship as soon as it is back in stock.
solenoid valve VSVA-B-T32H-AH-A2-2AC1 With square plug, shape C Valve function=2x3/2 open/closed, monostable, Type of actuation=electrical, Valve size=18 mm, Standard nominal flow rate=400 l/min, Operating pressure=2 - 10 bar
| Valve function | 2x3/2 open/closed, monostable |
|---|---|
| Type of actuation | electrical |
| Valve size | 18 mm |
| Standard nominal flow rate | 400 l/min |
| Operating pressure | 2 ... 10 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP65NEMA 4 |
| Nominal size | 5 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Conforms to standard | ISO 15407-1VDMA 24563 |
