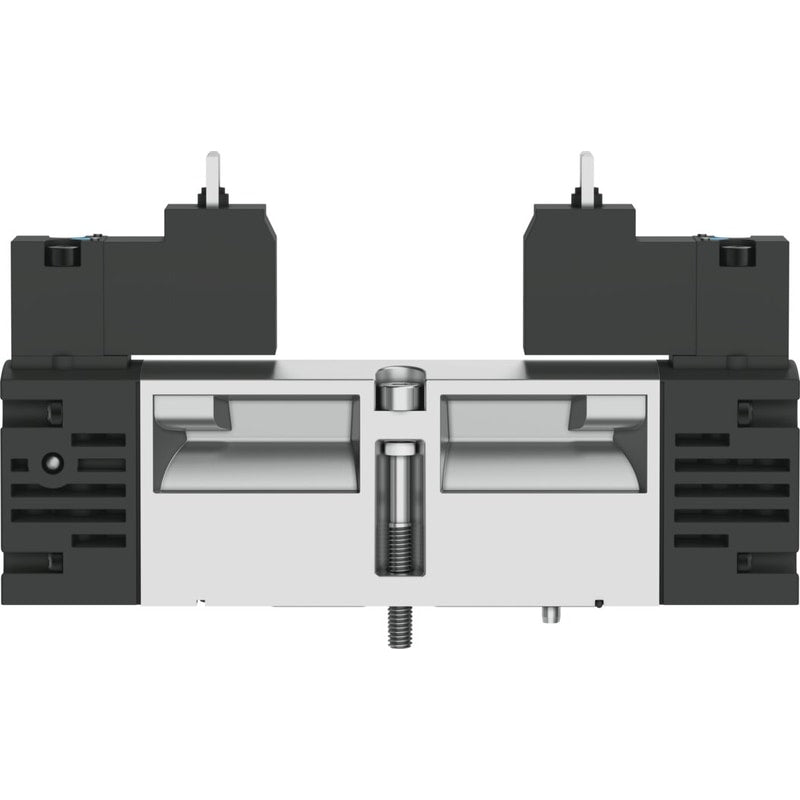

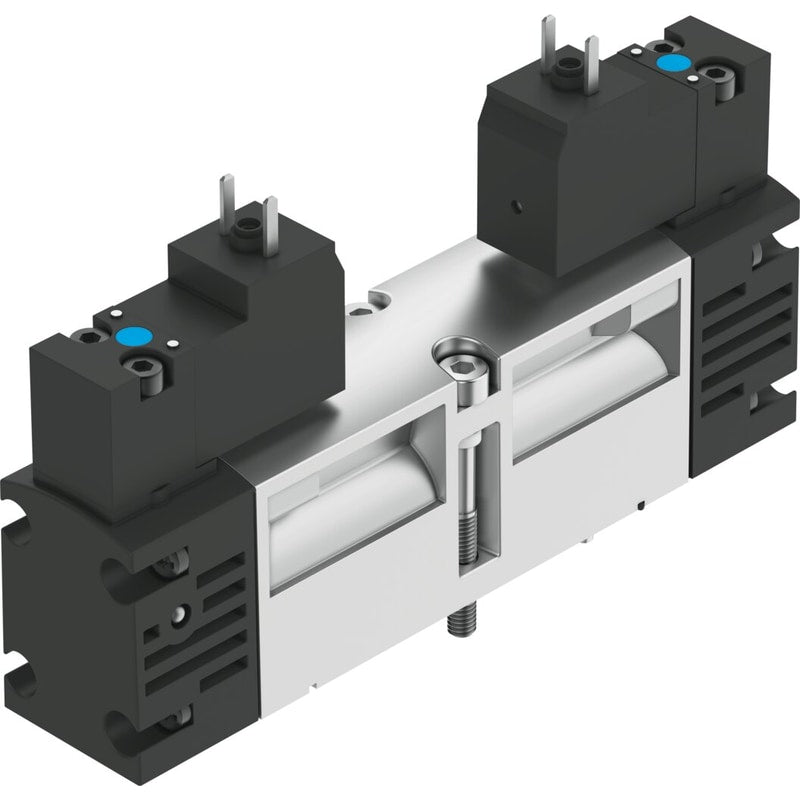

Air solenoid valve
VSVA-B-T32C-AZH-A1-1C1
547068
GTIN 4052568185848
Vendor Festo

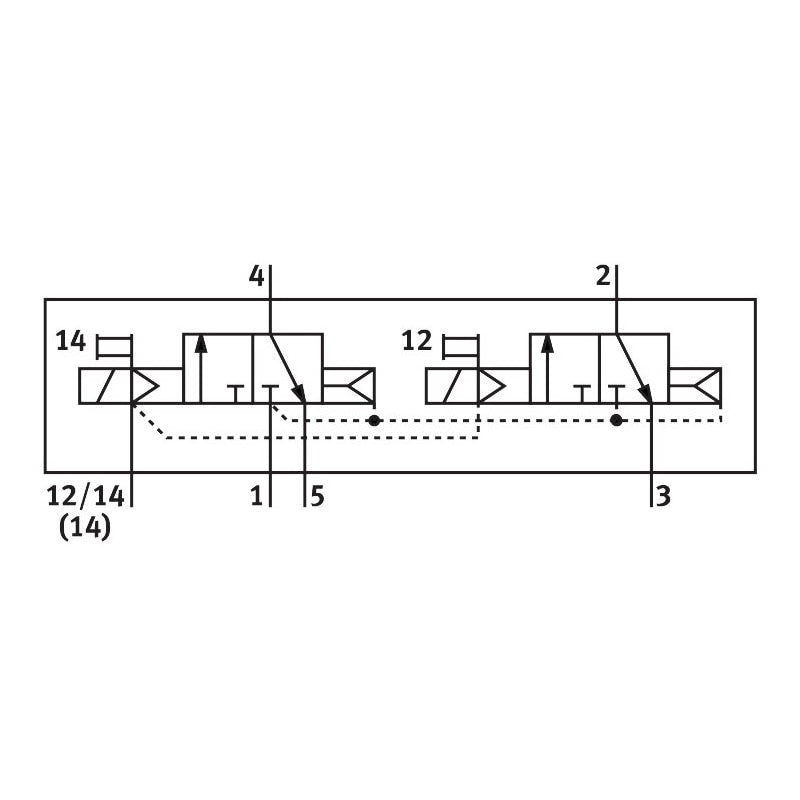

- Valve function
- 2x3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 900 l/min
- Pneumatic connection 1
- Sub-base, size 26 mm as per ISO 15407-1
- Actuation type
- Electrical
Regular price
$253.56
Unit price
VSVA-B-T32C-AZH-A1-1C1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSVA-B-T32C-AZH-A1-1C1
Regular price
$253.56
Unit price
VSVA-B-T32C-AZH-A1-1C1 is backordered and will ship as soon as it is back in stock.
solenoid valve VSVA-B-T32C-AZH-A1-1C1 With square plug, shape C Valve function=2x3/2 closed, monostable, Type of actuation=electrical, Valve size=26 mm, Standard nominal flow rate=900 l/min, Operating pressure=2 - 10 bar
| Valve function | 2x3/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Valve size | 26 mm |
| Standard nominal flow rate | 900 l/min |
| Operating pressure | 2 ... 10 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP65NEMA 4 |
| Authorisation | c UL us - Recognized (OL) |
| Nominal size | 9 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
