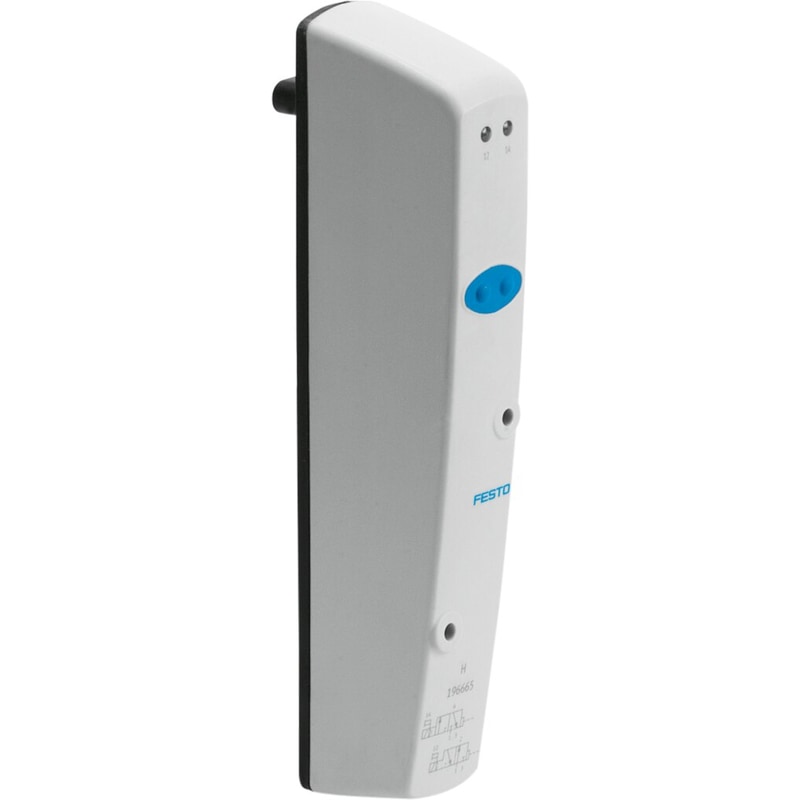

Air solenoid valve
CDVI5.0-MT2H-1X3OLS-EXT
547014
GTIN 4052568185718
Vendor Festo
- Valve function
- 3/2, open, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 500 l/min
- Pneumatic connection 1
- Sub-base
- Operating pressure
- -0.9 bar - 10 bar
Regular price
$355.63
Unit price
CDVI5.0-MT2H-1X3OLS-EXT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CDVI5.0-MT2H-1X3OLS-EXT
Regular price
$355.63
Unit price
CDVI5.0-MT2H-1X3OLS-EXT is backordered and will ship as soon as it is back in stock.
| Valve function | 3/2, open, monostable |
|---|---|
| Actuation type | Electrical |
| Standard nominal flow rate | 500 l/min |
| Pneumatic working port | Sub-base |
| Operating voltage | 24V DC |
| Operating pressure | -0.9 bar ... 10 bar |
| Design | Piston gate valve |
| Reset method | Pneumatic spring |
| Nominal width | 5 mm |
| Type code | CDVI5.0 |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Manual override | Non-detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |
| Flow direction | Reversible |
| Symbol | 991789 |
| Note on forced dynamization | Switching frequency at least once a month |
| Pilot pressure | 3 bar ... 8 bar |
| b-value | 0.34 |
| C value | 2.05 l/sbar |
| Switching time off | 14 ms |
| On switching time | 10 ms |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Temperature of medium | -5 °C ... 50 °C |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 185 g |
| Type of mounting | Screw-in |
| Pilot exhaust air port 82/84 | Sub-base |
| Pneumatic connection 1 | Sub-base |
| Pneumatic connection 2 | Sub-base |
| Pneumatic connection 3 | Sub-base |
| Pneumatic connection 4 | Sub-base |
| Pneumatic connection 5 | Sub-base |
| Note on materials | RoHS-compliant |
| Seals material | TPE-ONBR |
| Housing material | Die-cast aluminum |
