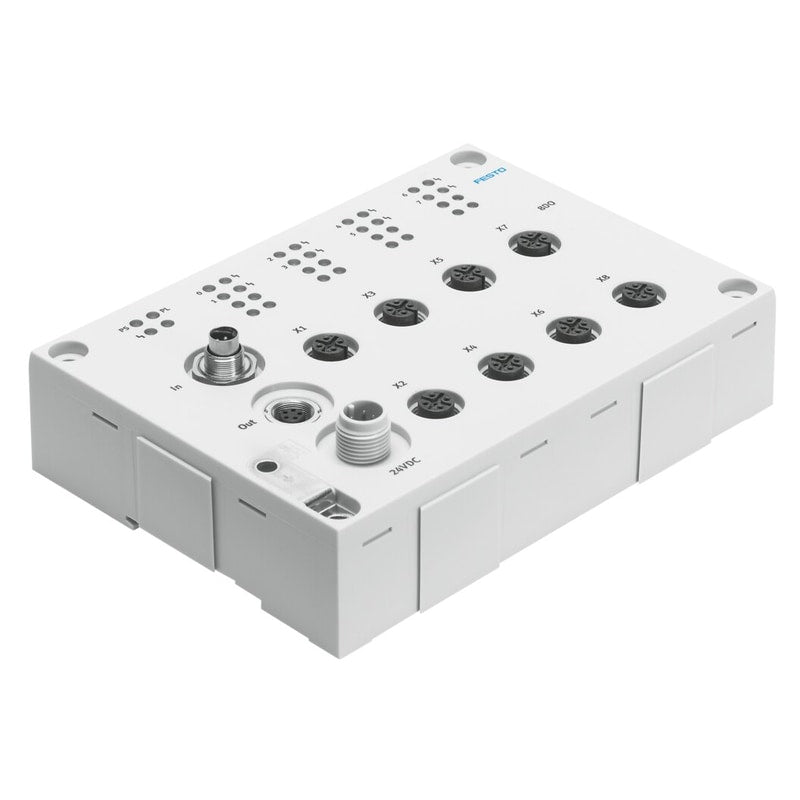

Output module
CP-A08-M12-EL-Z
546924
GTIN 4052568185572
Vendor Festo
Regular price
$611.19
Unit price
CP-A08-M12-EL-Z is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CP-A08-M12-EL-Z
Regular price
$611.19
Unit price
CP-A08-M12-EL-Z is backordered and will ship as soon as it is back in stock.
output module CP-A08-M12-EL-Z With an external load voltage connection. LED displays=(* - 3 Module diagnostics, * - 8 Channel diagnosis, * - 8 Channel status), Protection (short circuit)=Internal electronic fuse protection for each group, DC operating voltage, load voltage=24 V, Operating voltage range DC=18 - 30 V, Note regarding load voltage=Via load voltage connection (24 V DC)
| LED displays | '- 3 Module diagnostics- 8 Channel diagnosis- 8 Channel status |
|---|---|
| Protection (short circuit) | Internal electronic fuse protection for each group |
| DC operating voltage, load voltage | 24 V |
| Operating voltage range DC | 18 ... 30 V |
| Note regarding load voltage | Via load voltage connection (24 V DC) |
| Max. resultant current per module | 0.166666666666667 |
| Maximum number of outputs | 8 |
| Nominal operating voltage DC | 24 V |
| Electrical isolation channel – channel | No |
| Residual ripple, load voltage | 4 Vss |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| KC mark | KC-EMV |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
