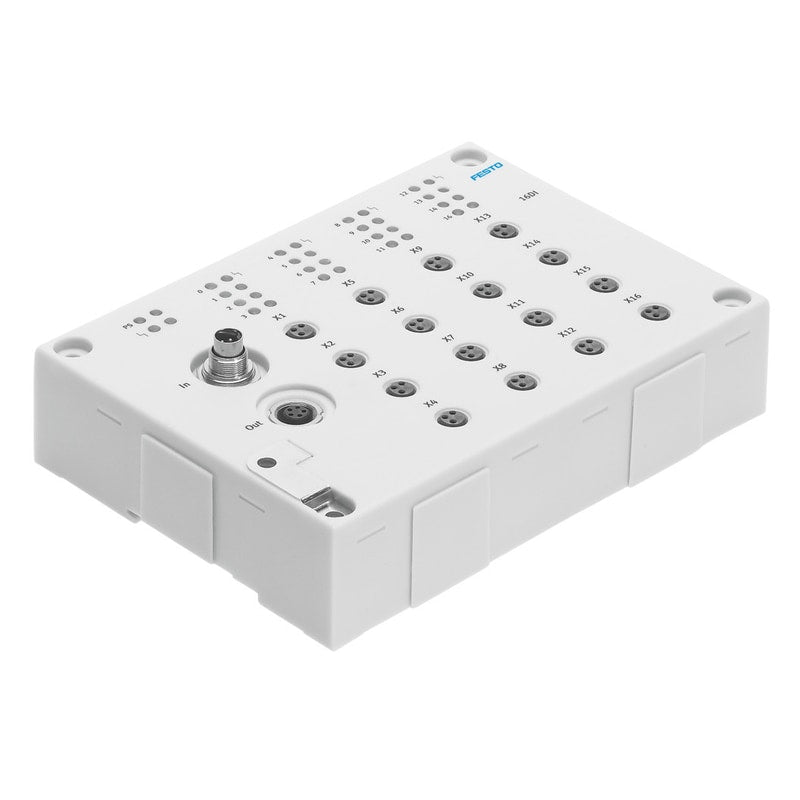

Input module
CP-E16-M8-EL
546922
GTIN 4052568185558
Vendor Festo
Regular price
$527.89
Unit price
CP-E16-M8-EL is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CP-E16-M8-EL
Regular price
$527.89
Unit price
CP-E16-M8-EL is backordered and will ship as soon as it is back in stock.
input module CP-E16-M8-EL LED displays=(* - 16 Channel status, * - 2 Module diagnostics, * - 4 Group diagnostics), Protection (short circuit)=Internal electronic fuse protection for each group, DC operating voltage, load voltage=24 V, Operating voltage range DC=18 - 30 V, Input debounce time=3 ms (0,5 ms, 10 ms, 20ms p.)
| LED displays | '- 16 Channel status- 2 Module diagnostics- 4 Group diagnostics |
|---|---|
| Protection (short circuit) | Internal electronic fuse protection for each group |
| DC operating voltage, load voltage | 24 V |
| Operating voltage range DC | 18 ... 30 V |
| Input debounce time | 3 ms (0.5 ms, 10 ms, 20 ms, parameterisable) |
| Max. resultant current per module | 0.7 A |
| Maximum number of inputs | 16 |
| Nominal operating voltage DC | 24 V |
| Electrical isolation channel – channel | No |
| Residual ripple, load voltage | 4 Vss |
| Switching level | Signal 0: = 8.6 V |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| KC mark | KC-EMV |
