Sub-base
VMPA2-AP-2-1-EMS-4
546803
GTIN 4052568185404
Vendor Festo
Regular price
$170.43
Unit price
VMPA2-AP-2-1-EMS-4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA2-AP-2-1-EMS-4
Regular price
$170.43
Unit price
VMPA2-AP-2-1-EMS-4 is backordered and will ship as soon as it is back in stock.

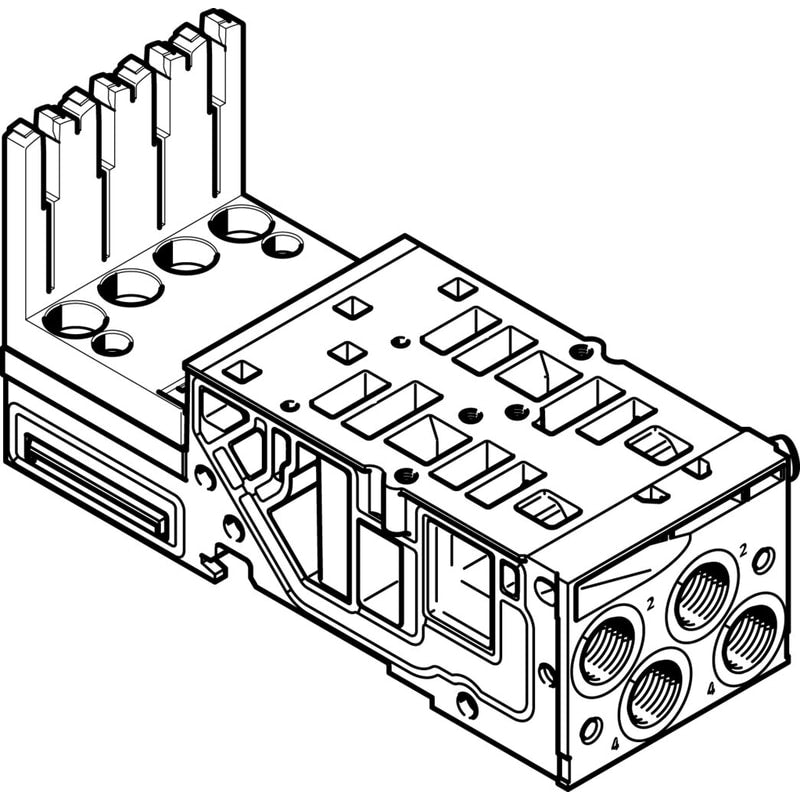

sub-base VMPA2-AP-2-1-EMS-4 For valve terminal MPA-S. Width=42 mm, Length=107,3 mm, Grid dimension=21 mm, Max. number of valve positions=2, Operating pressure=-0,9 - 10 bar
| Width | 42 mm |
|---|---|
| Length | 107.3 mm |
| Grid dimension | 21 mm |
| Max. number of valve positions | 2 |
| Operating pressure | '-0.9 ... 10 bar |
| Pilot pressure | 3 ... 8 bar |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 210 g |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 4 | G1/8 |
| Materials note | Conforms to RoHS |
| Material of connecting plate | Aluminium die cast |
