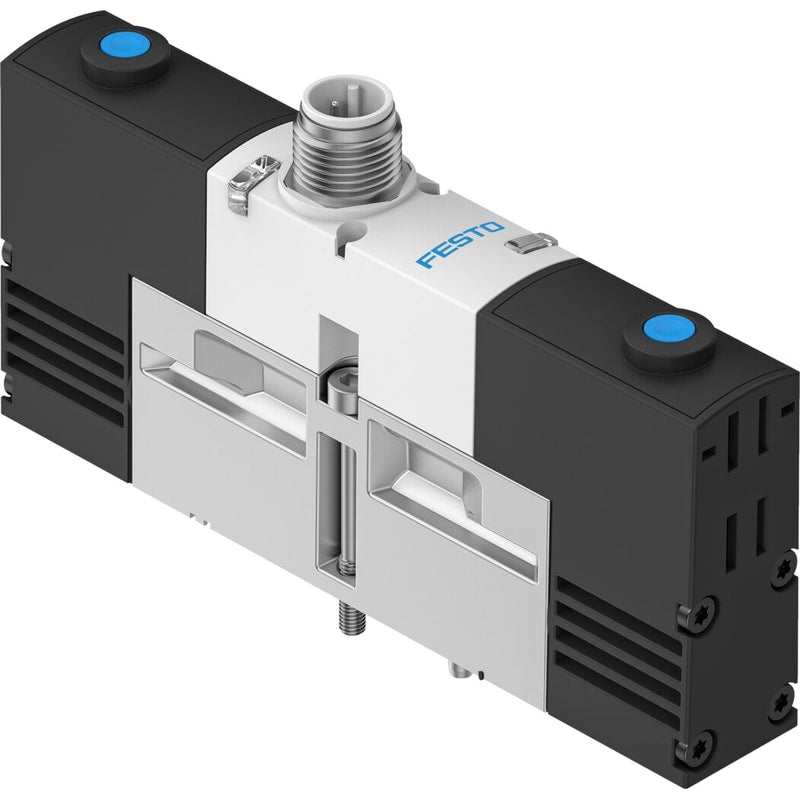

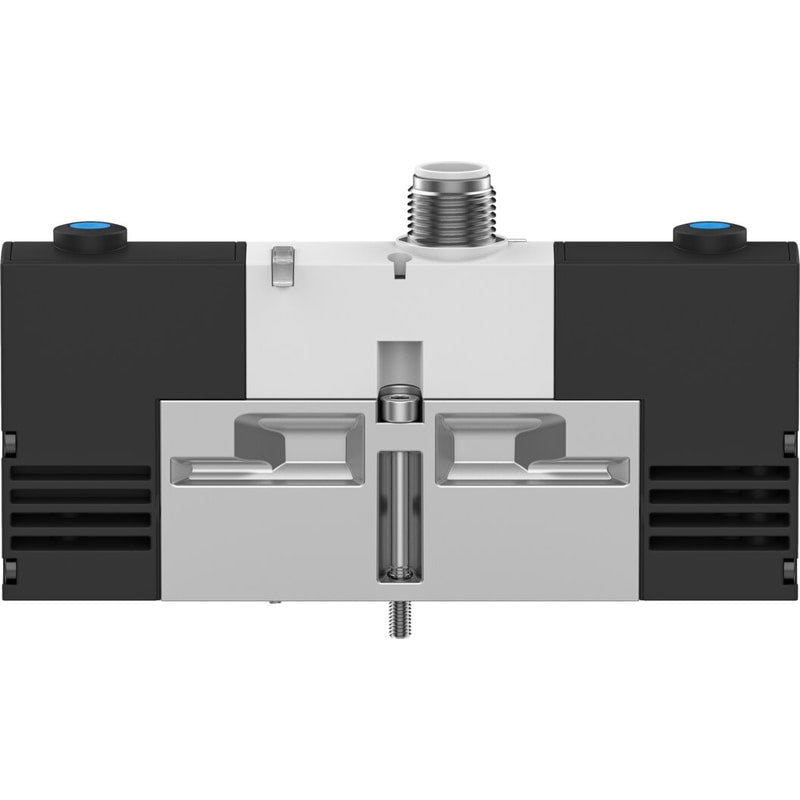

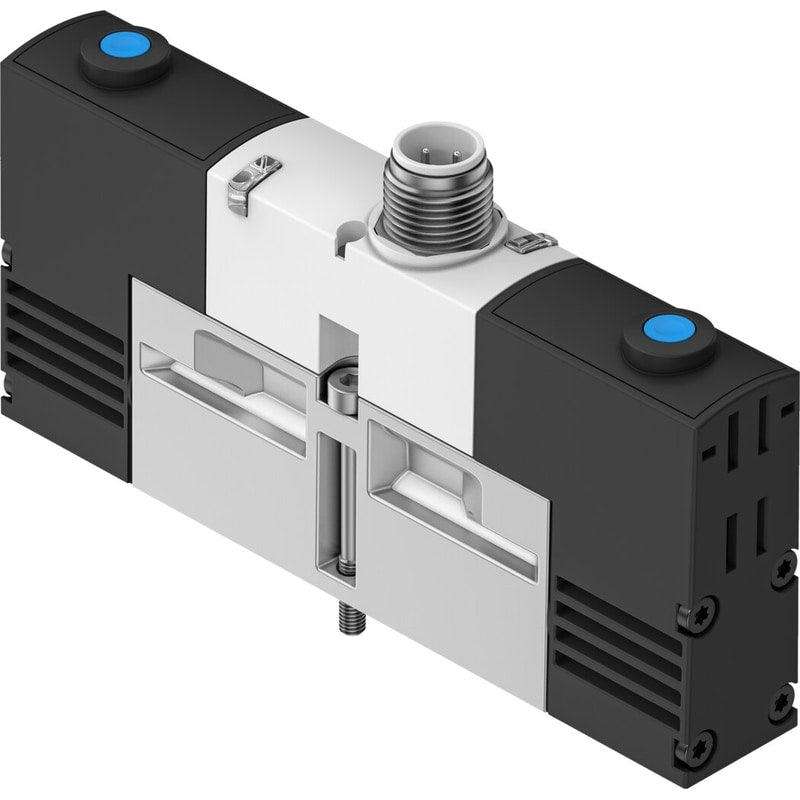

Air solenoid valve
VSVA-B-T32C-AZH-A2-1R5L
546774
GTIN 4052568185213
Vendor Festo
- Valve function

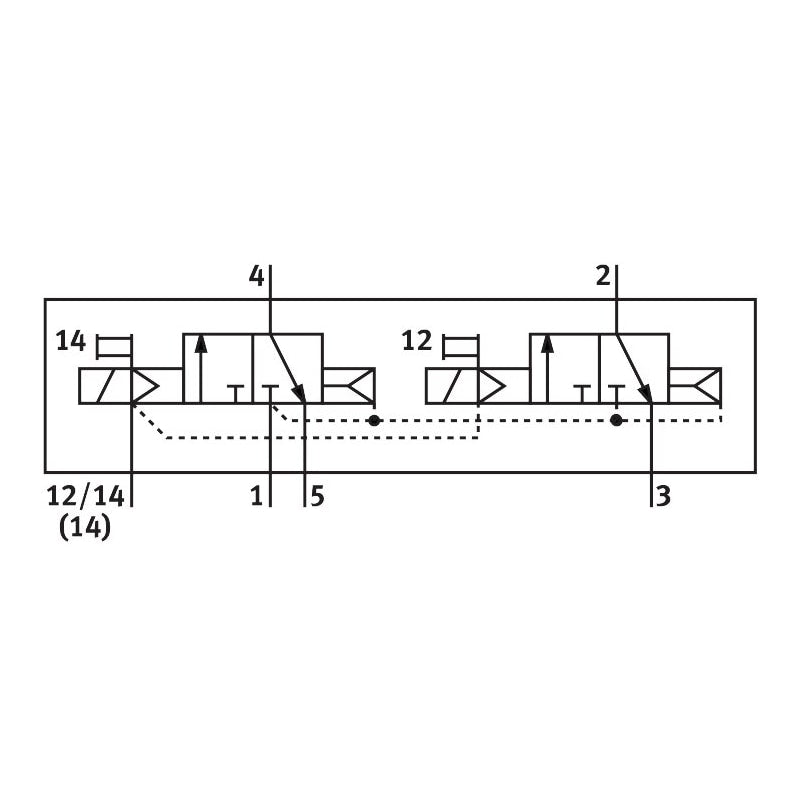

- 2x3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 400 l/min
- Pneumatic working port
- Sub-base, size 18 mm as per ISO 15407-1 - Connecting plate size 02 according to VDMA 24563
- Actuation type
- Electrical
Regular price
$314.62
Unit price
VSVA-B-T32C-AZH-A2-1R5L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSVA-B-T32C-AZH-A2-1R5L
Regular price
$314.62
Unit price
VSVA-B-T32C-AZH-A2-1R5L is backordered and will ship as soon as it is back in stock.
solenoid valve VSVA-B-T32C-AZH-A2-1R5L with central plug, round design M12x1. Valve function=2x3/2 closed, monostable, Type of actuation=electrical, Width=18 mm, Standard nominal flow rate=400 l/min, Operating pressure=3 - 10 bar
| Valve function | 2x3/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 18 mm |
| Standard nominal flow rate | 400 l/min |
| Operating pressure | 3 ... 10 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP65 |
| Authorisation | C-Tickc CSA us (OL)c UL us - Recognized (OL) |
| Nominal size | 5 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
