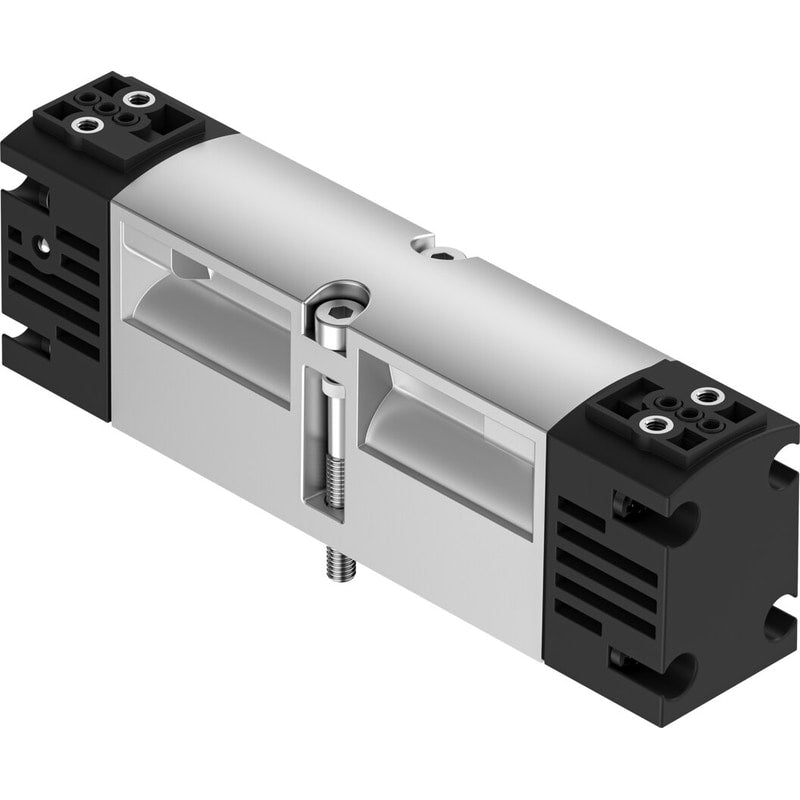

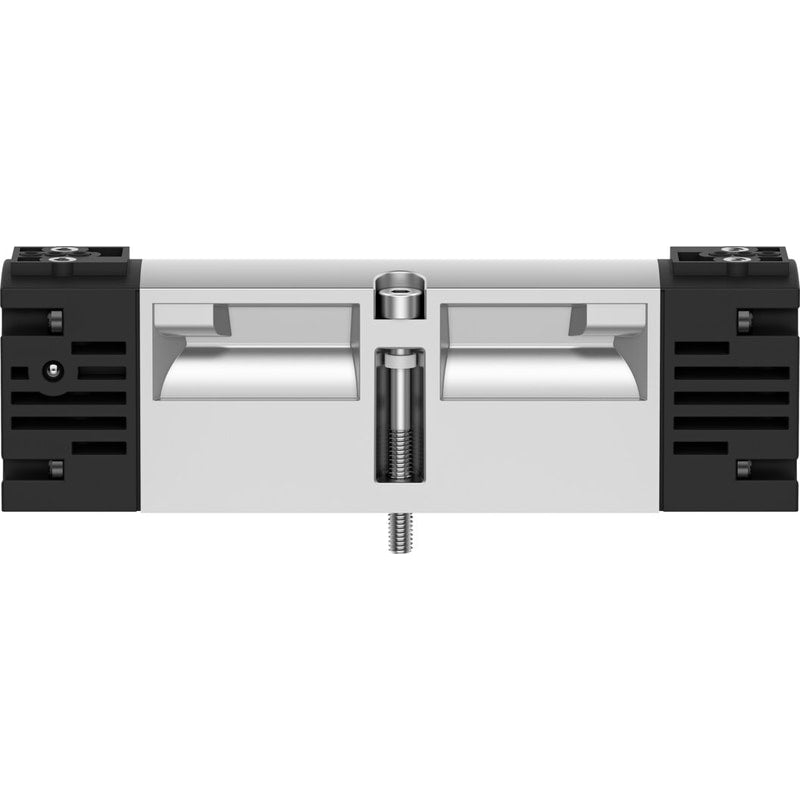

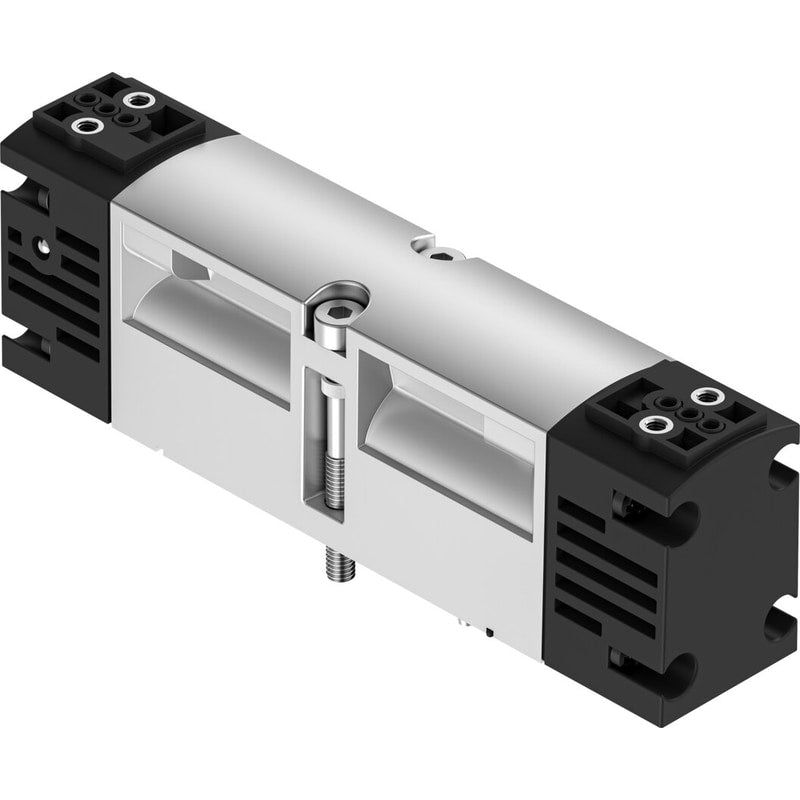

Basic valve
VSVA-B-D52-A2-P1
546738
GTIN 4052568185046
Vendor Festo

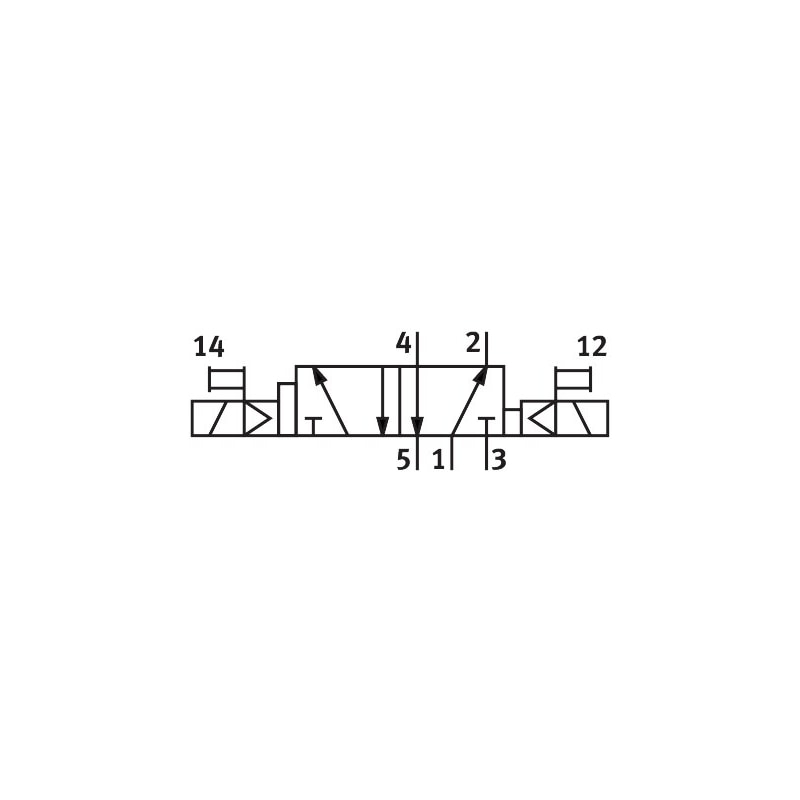

- Valve function
- 5/2, bistable, dominant
- Normal nominal flow rate (normalized to DIN 1343)
- 550 l/min
- Pneumatic connection 1
- Sub-base, size 18 mm as per ISO 15407-1
- Actuation type
- Electrical
Regular price
$136.55
Unit price
VSVA-B-D52-A2-P1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSVA-B-D52-A2-P1
Regular price
$136.55
Unit price
VSVA-B-D52-A2-P1 is backordered and will ship as soon as it is back in stock.
basic valve VSVA-B-D52-A2-P1 Width 18 mm Valve function=5/2 bistable-dominant, Type of actuation=electrical, Valve size=18 mm, Standard nominal flow rate=550 l/min, Operating pressure=2 - 10 bar
| Valve function | 5/2 bistable-dominant |
|---|---|
| Type of actuation | electrical |
| Valve size | 18 mm |
| Standard nominal flow rate | 550 l/min |
| Operating pressure | 2 ... 10 bar |
| Design structure | Piston slide |
| Protection class | IP65NEMA 4 |
| Authorisation | c UL us - Recognized (OL) |
| Nominal size | 5 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Conforms to standard | ISO 15407-1VDMA 24563 |
