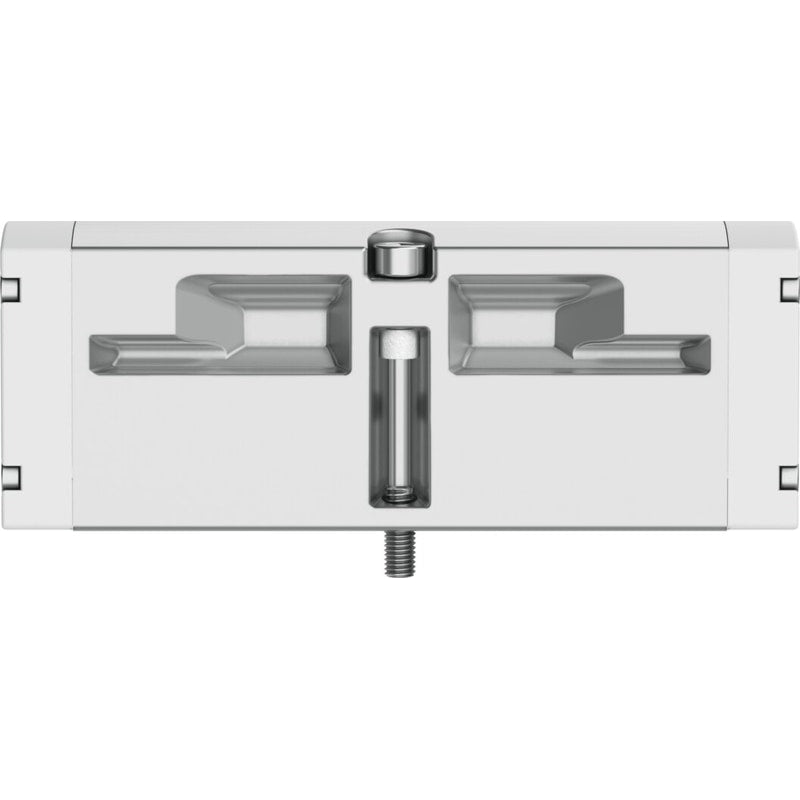

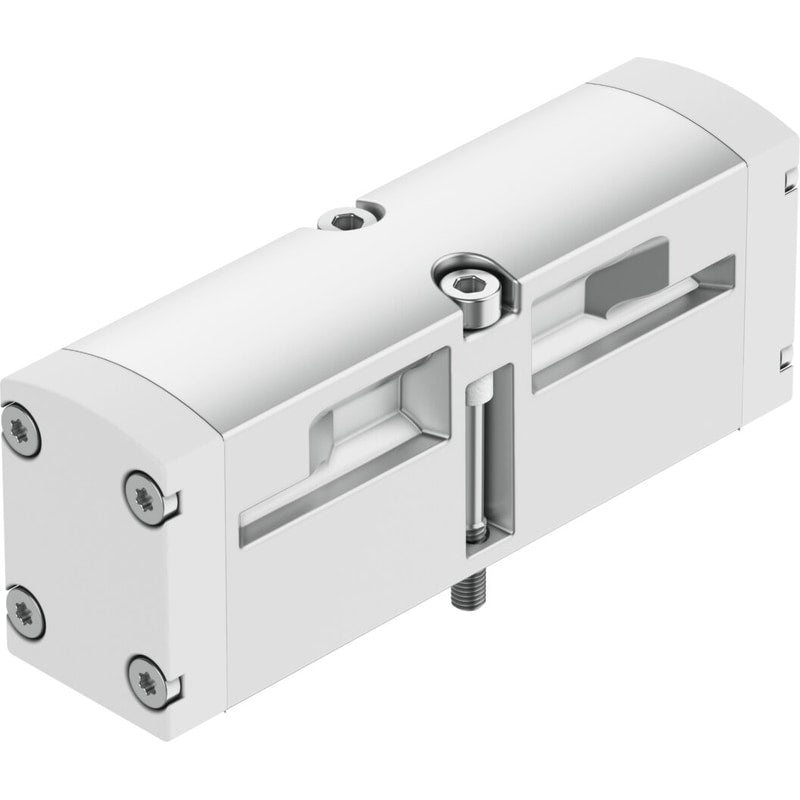

Pneumatic valve
VSPA-B-D52-A1
546715
GTIN 4052568092306
Vendor Festo
- Valve function
- 5/2, bistable, dominant
- Normal nominal flow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic connection 1
- Sub-base, size 26 mm as per ISO 15407-1
- Actuation type
- Pneumatic
Regular price
$118.78
Unit price
VSPA-B-D52-A1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSPA-B-D52-A1
Regular price
$118.78
Unit price
VSPA-B-D52-A1 is backordered and will ship as soon as it is back in stock.
pneumatic valve VSPA-B-D52-A1 Width 26 mm Valve function=5/2 bistable-dominant, Type of actuation=pneumatic, Width=26 mm, Standard nominal flow rate=1100 l/min, Operating pressure=-0,9 - 16 bar
| Valve function | 5/2 bistable-dominant |
|---|---|
| Type of actuation | pneumatic |
| Width | 26 mm |
| Standard nominal flow rate | 1,100 l/min |
| Operating pressure | '-0.9 ... 16 bar |
| Design structure | Piston slide |
| Nominal size | 9 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Conforms to standard | ISO 15407-1VDMA 24563 |
| Type of piloting | direct |
| Flow direction | reversible |
