Rod clevis
SG-UNF5/16"-24-B
546574
GTIN 4052568354329
Vendor Festo
Regular price
$7.59
Unit price
SG-UNF5/16"-24-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SG-UNF5/16"-24-B
Regular price
$7.59
Unit price
SG-UNF5/16"-24-B is backordered and will ship as soon as it is back in stock.

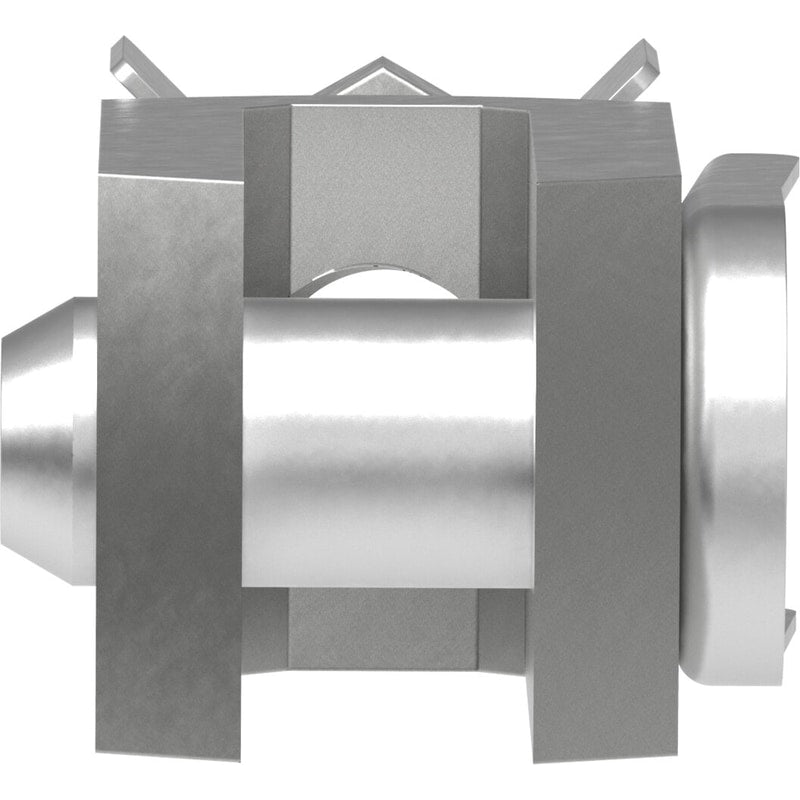

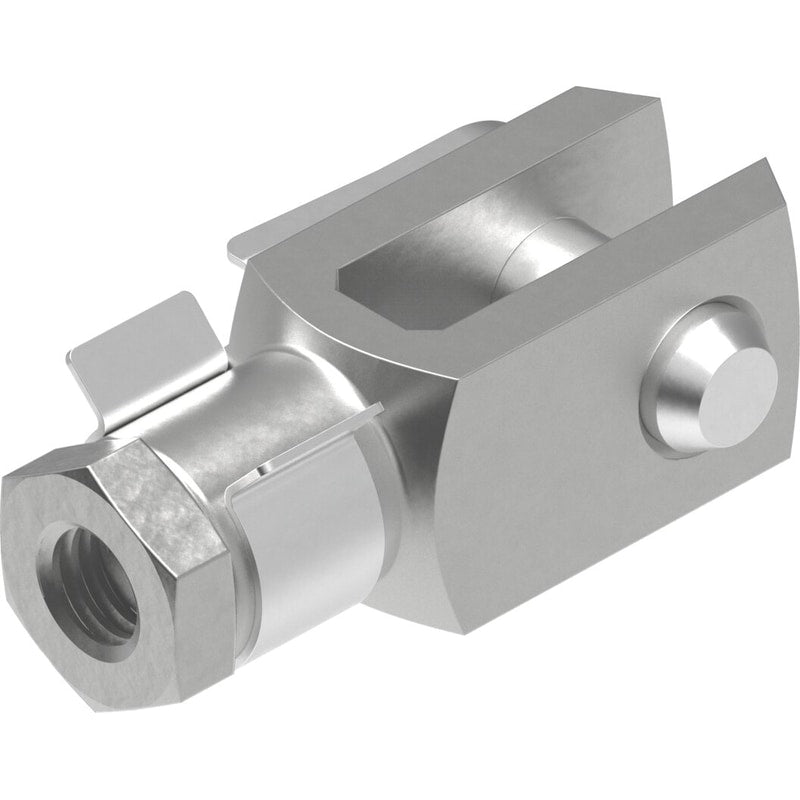

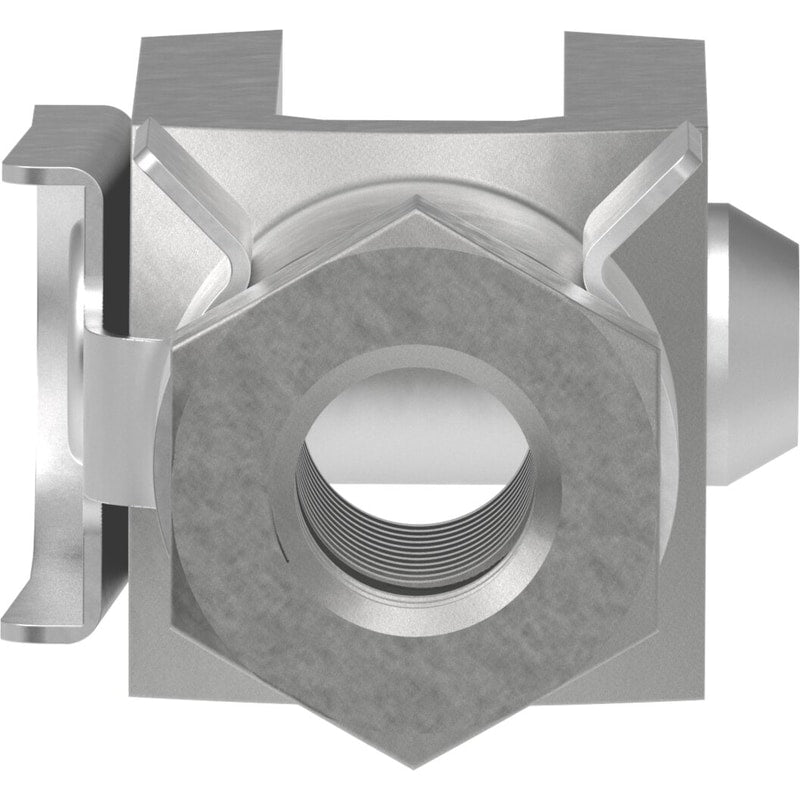

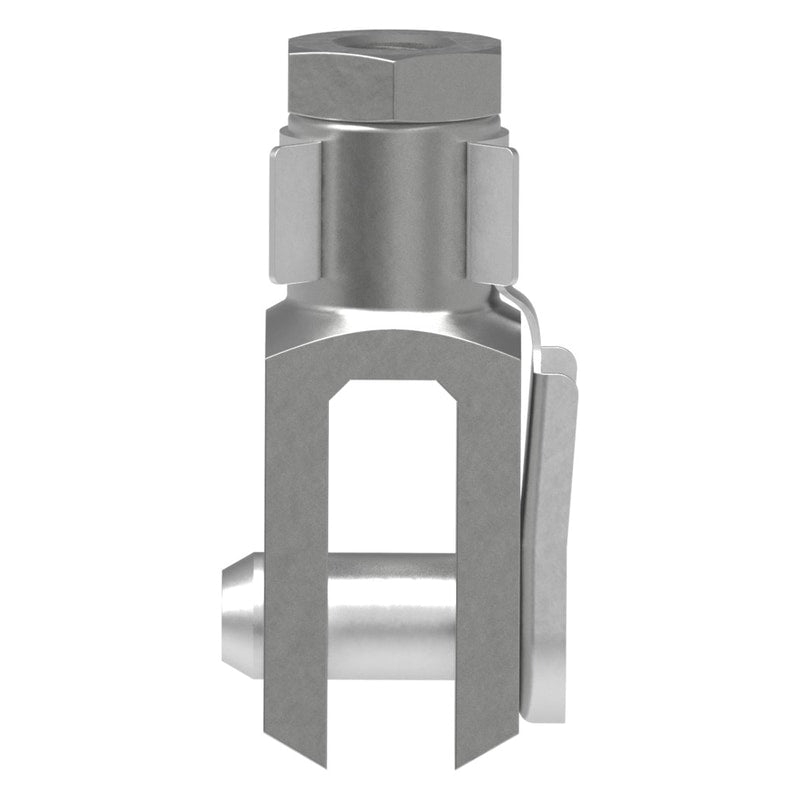

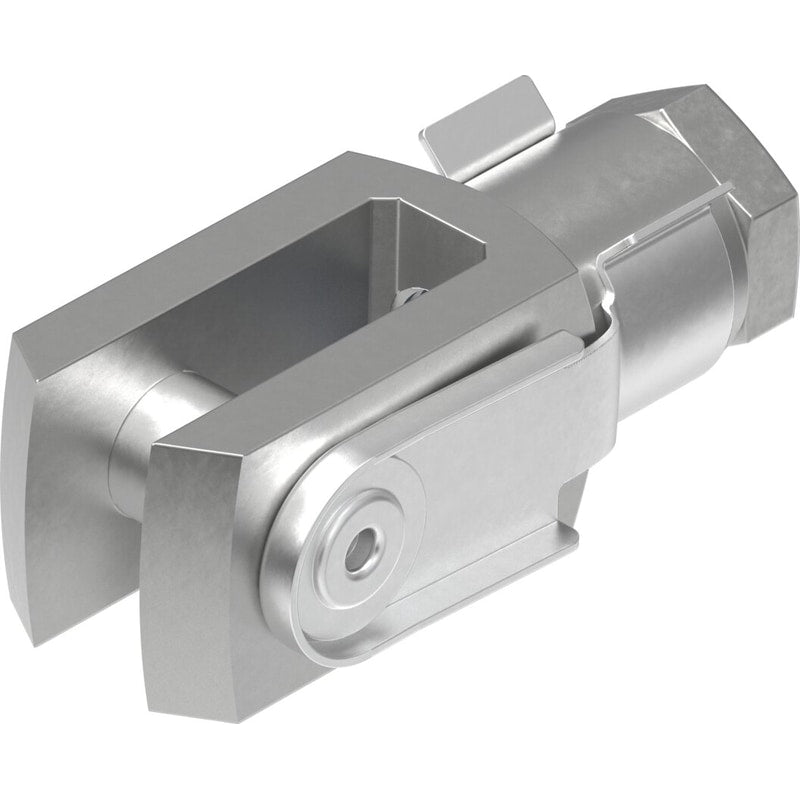

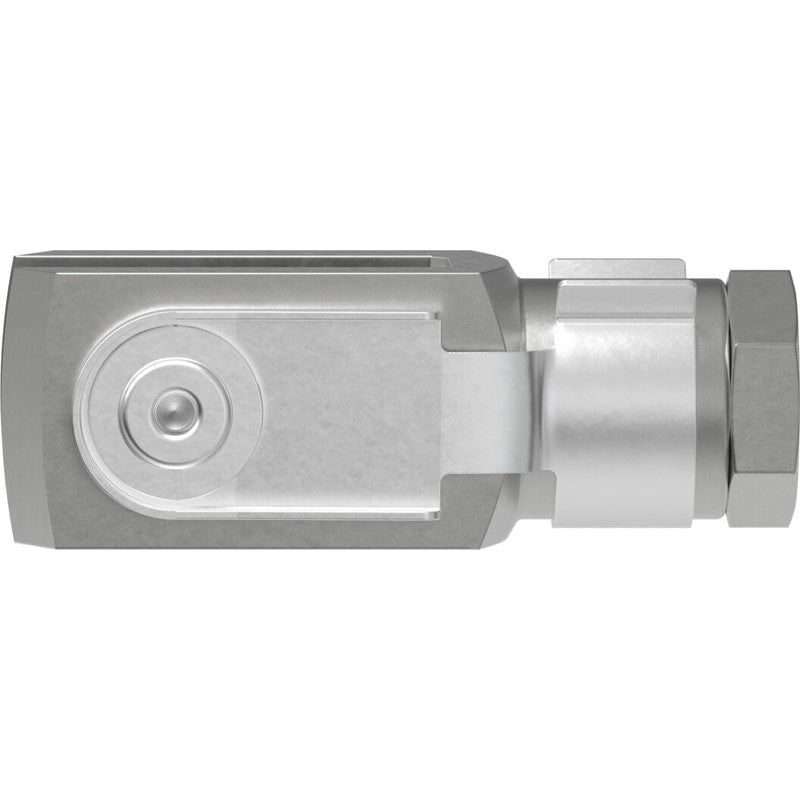

rod clevis SG-UNF5/16"-24-B With hexagon nut, for swivel cylinder mounting (piston-rod side). Size=UNF5/16-24, Based on the standard=(* DIN 71752, * ISO 8140), Corrosion resistance classification CRC=1 - Low corrosion stress, Ambient temperature=-40 - 302 °F, Product weight=1,936 oz
| Size | UNF5/16-24 |
|---|---|
| Based on the standard | DIN 71752ISO 8140 |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-40 ... 302 °F |
| Product weight | 1.936 oz |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Material mounting pin | SteelGalvanised |
| Material clevis | SteelGalvanised |
| Material nut | SteelGalvanised |
