Basic valve
LR-D-7-DI-MAXI
546513
GTIN 4052568353735
Vendor Festo
- Normal nominal flow rate (normalized to DIN 1343)
- 32478.81 l/min
- Pressure regulation range
- 0.5 bar - 7 bar
- Max. pressure hysteresis
- 0.4 bar
Regular price
$241.06
Unit price
Basic valve LR-D-7-DI-MAXI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LR-D-7-DI-MAXI
Regular price
$241.06
Unit price
Basic valve LR-D-7-DI-MAXI is backordered and will ship as soon as it is back in stock.

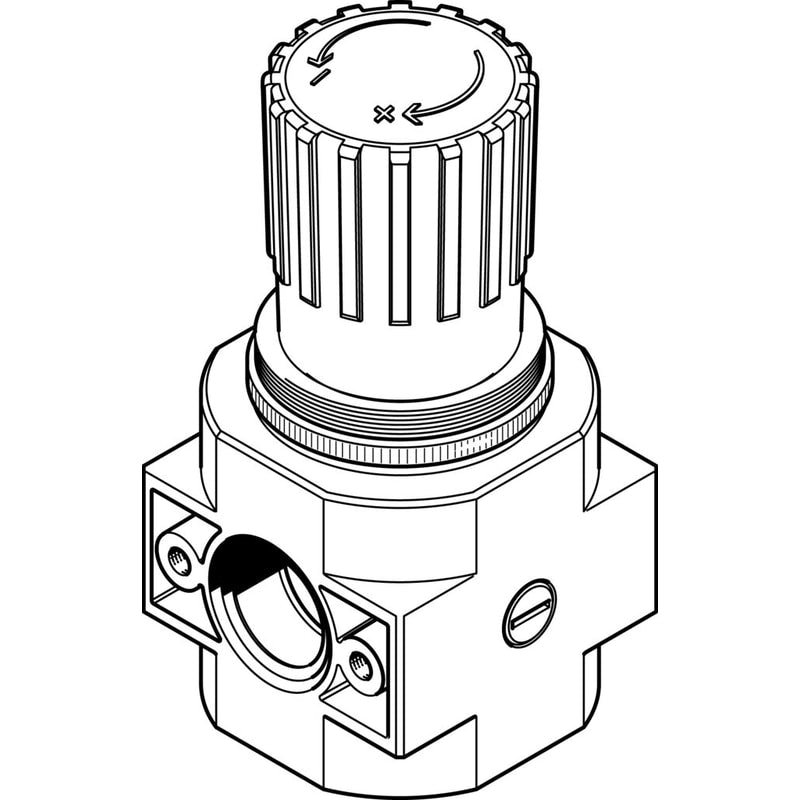

pressure regulator LR-D-7-DI-MAXI without threaded connecting plates. Size=Maxi, Series=D, Actuator lock=Rotary knob with lock, Assembly position=Any, Design structure=directly-controlled diaphragm regulator
| Size | Maxi |
|---|---|
| Series | D |
| Actuator lock | Rotary knob with lock |
| Assembly position | Any |
| Design structure | directly-controlled diaphragm regulator |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Pressure gauge | Prepared for G1/4 |
| Operating pressure | 13.8 ... 240 Psi |
| Pressure regulation range | 6.9 ... 105 Psi |
| Max. pressure hysteresis | 6 Psi |
| Standard nominal flow rate | 255.5 cfm |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
