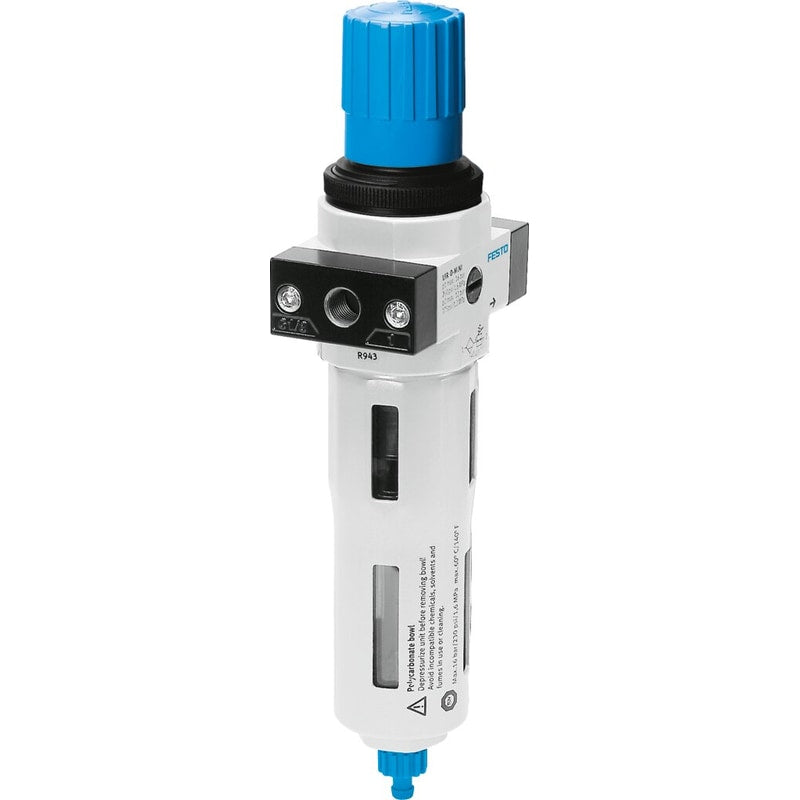

Basic valve
LFR-D-7-MIDI-A
546464
GTIN 4052568353285
Vendor Festo
- Normal nominal flow rate (normalized to DIN 1343)
- 9343.22 l/min
- Pressure regulation range
- 0.5 bar - 7 bar
- Grade of filtration
- 40 µm
Regular price
$338.09
Unit price
Basic valve LFR-D-7-MIDI-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFR-D-7-MIDI-A
Regular price
$338.09
Unit price
Basic valve LFR-D-7-MIDI-A is backordered and will ship as soon as it is back in stock.
filter regulator LFR-D-7-MIDI-A Output pressure max. 7 bar, without pressure gauge, 40 µ filtration grade. Size=Midi, Series=D, Actuator lock=Rotary knob with lock, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm
| Size | Midi |
|---|---|
| Series | D |
| Actuator lock | Rotary knob with lock |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | fully automatic |
| Design structure | Filter regulator with pressure gauge |
| Max. condensate volume | 1.462 oz(l) |
| Bowl guard | Metal bowl guard |
| Pressure gauge | Prepared for G1/4 |
| Operating pressure | 28 ... 180 Psi |
| Pressure regulation range | 6.9 ... 105 Psi |
| Max. pressure hysteresis | 3 Psi |
