Basic valve
LFR-D-5M-MIDI
546461
GTIN 4052568353254
Vendor Festo
- Normal nominal flow rate (normalized to DIN 1343)
- 10677.97 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Grade of filtration
- 5 µm
Regular price
$240.26
Unit price
Basic valve LFR-D-5M-MIDI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFR-D-5M-MIDI
Regular price
$240.26
Unit price
Basic valve LFR-D-5M-MIDI is backordered and will ship as soon as it is back in stock.

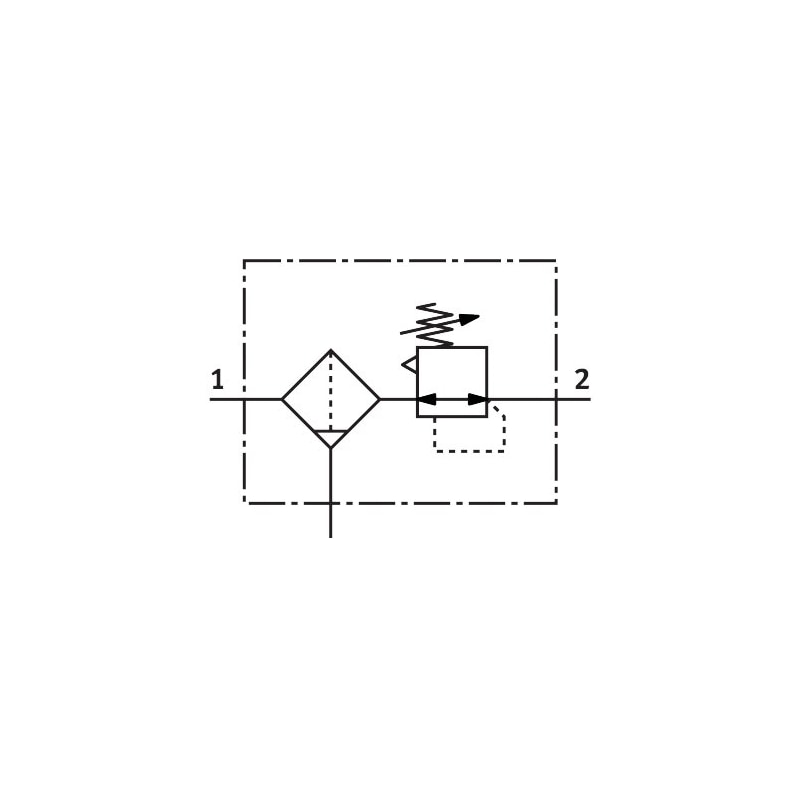

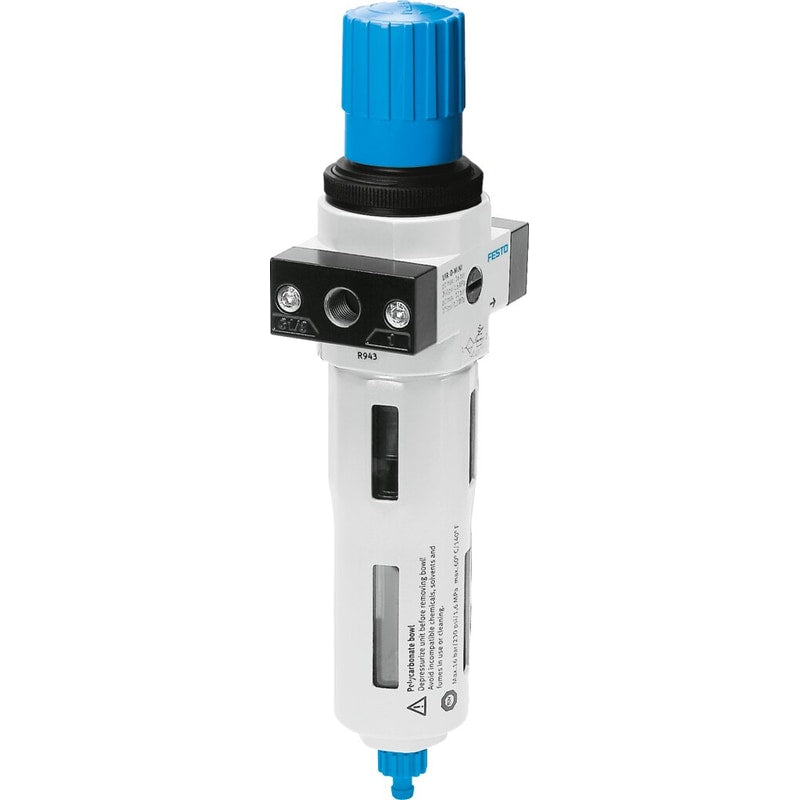

filter regulator LFR-D-5M-MIDI With metal bowl guard without pressure gauge, degree of filtration 5 µm. With automatic condensate drain. Size=Midi, Series=D, Actuator lock=Rotary knob with lock, Assembly position=Vertical +/- 5°, Grade of filtration=5 µm
| Size | Midi |
|---|---|
| Series | D |
| Actuator lock | Rotary knob with lock |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | manual rotary |
| Design structure | Filter regulator without pressure gauge |
| Max. condensate volume | 1.462 oz(l) |
| Bowl guard | Metal bowl guard |
| Pressure gauge | Prepared for G1/4 |
| Operating pressure | 13.8 ... 240 Psi |
| Pressure regulation range | 6.9 ... 180 Psi |
| Max. pressure hysteresis | 3 Psi |
