Basic valve
LF-D-5M-MIDI-A-U
546460
GTIN 4052568353247
Vendor Festo
- Normal nominal flow rate (normalized to DIN 1343)
- 7118.64 l/min
- Operating pressure
- 2 bar - 12 bar
- Grade of filtration
- 5 µm
Regular price
$252.48
Unit price
LF-D-5M-MIDI-A-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LF-D-5M-MIDI-A-U
Regular price
$252.48
Unit price
LF-D-5M-MIDI-A-U is backordered and will ship as soon as it is back in stock.

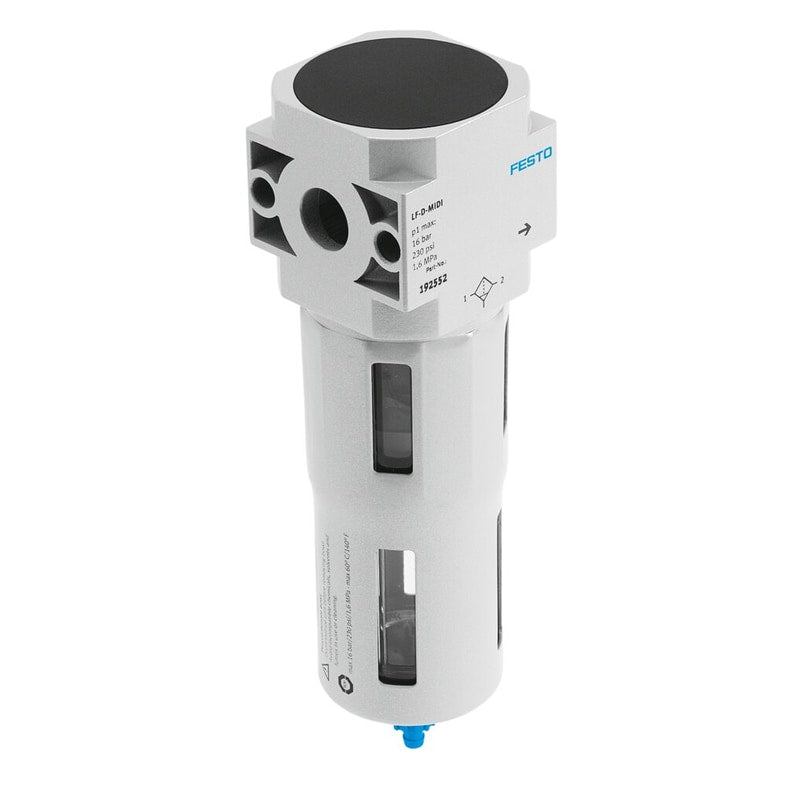

filter LF-D-5M-MIDI-A-U Without threaded connection plates with FRB threaded pin. Degree of filtration: 5 µm, with bowl guard and automatic condensate drain. Size=Midi, Series=D, Assembly position=Vertical +/- 5°, Grade of filtration=5 µm, Condensate drain=fully automatic
| Size | Midi |
|---|---|
| Series | D |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | fully automatic |
| Design structure | Sintered filter with centrifugal separator |
| Max. condensate volume | 1.462 oz(l) |
| Bowl guard | Metal bowl guard |
| Operating pressure | 28 ... 180 Psi |
| Standard nominal flow rate | 56 cfm |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:9:-]Inert gases |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | 14 ... 140 °F |
