Basic valve

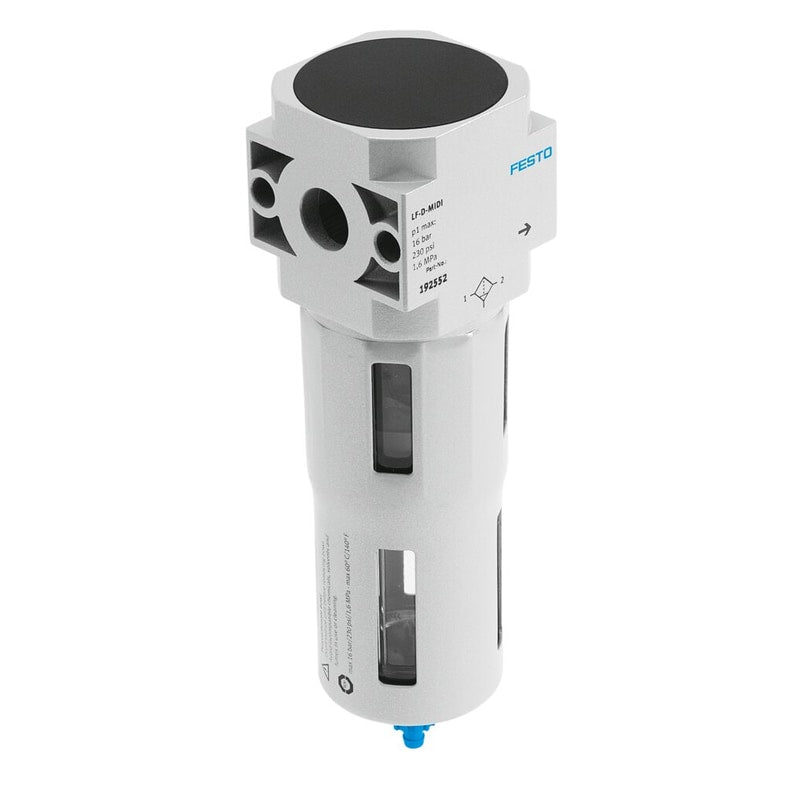

LF-D-5M-MIDI-U
546459
GTIN 4052568353230
Vendor Festo
- Normal nominal flow rate (normalized to DIN 1343)
- 7118.64 l/min
- Operating pressure
- 0 bar - 16 bar
- Grade of filtration
- 5 µm
Regular price
$144.01
Unit price
LF-D-5M-MIDI-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LF-D-5M-MIDI-U
Regular price
$144.01
Unit price
LF-D-5M-MIDI-U is backordered and will ship as soon as it is back in stock.
filter LF-D-5M-MIDI-U Without threaded connection plates with FRB threaded pin. Degree of filtration: 5 µm, with bowl guard and manual condensate drain. Size=Midi, Series=D, Assembly position=Vertical +/- 5°, Grade of filtration=5 µm, Condensate drain=manual rotary
| Size | Midi |
|---|---|
| Series | D |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | manual rotary |
| Design structure | Sintered filter with centrifugal separator |
| Max. condensate volume | 1.462 oz(l) |
| Bowl guard | Metal bowl guard |
| Operating pressure | 0 ... 240 Psi |
| Standard nominal flow rate | 56 cfm |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | 14 ... 140 °F |
