Basic valve
LFR-D-MINI-A
546433
GTIN 4052568352981
Vendor Festo
- Normal nominal flow rate (normalized to DIN 1343)
- 3336.86 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Grade of filtration
- 40 µm
Regular price
$274.75
Unit price
Basic valve LFR-D-MINI-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFR-D-MINI-A
Regular price
$274.75
Unit price
Basic valve LFR-D-MINI-A is backordered and will ship as soon as it is back in stock.

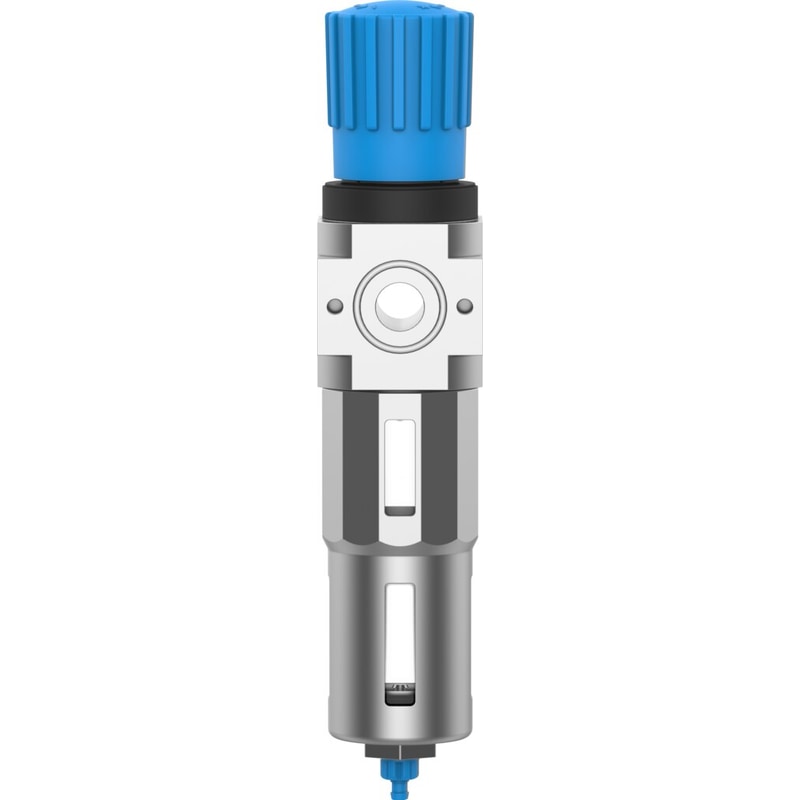

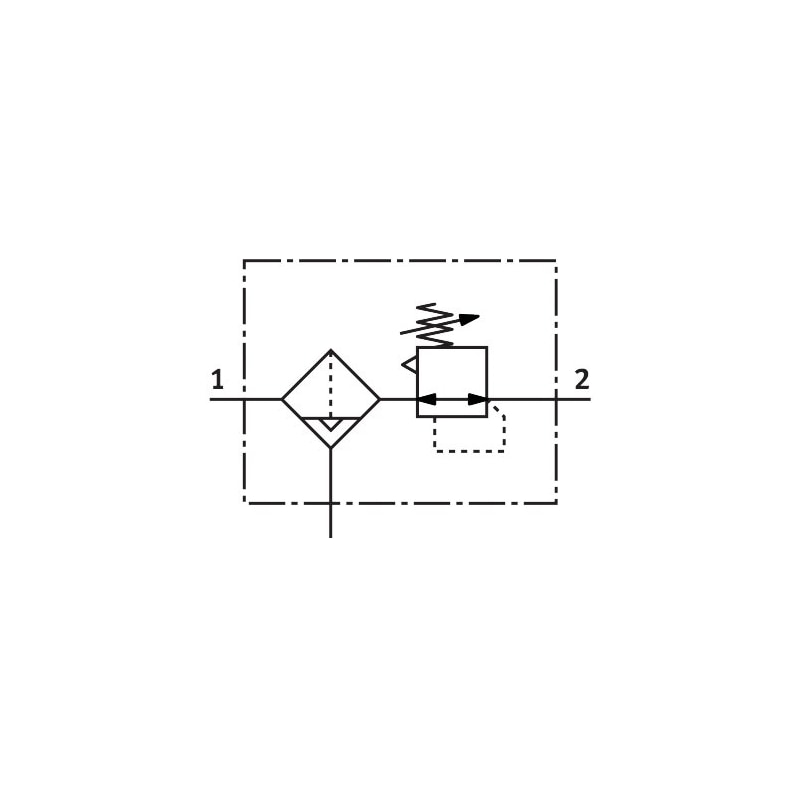

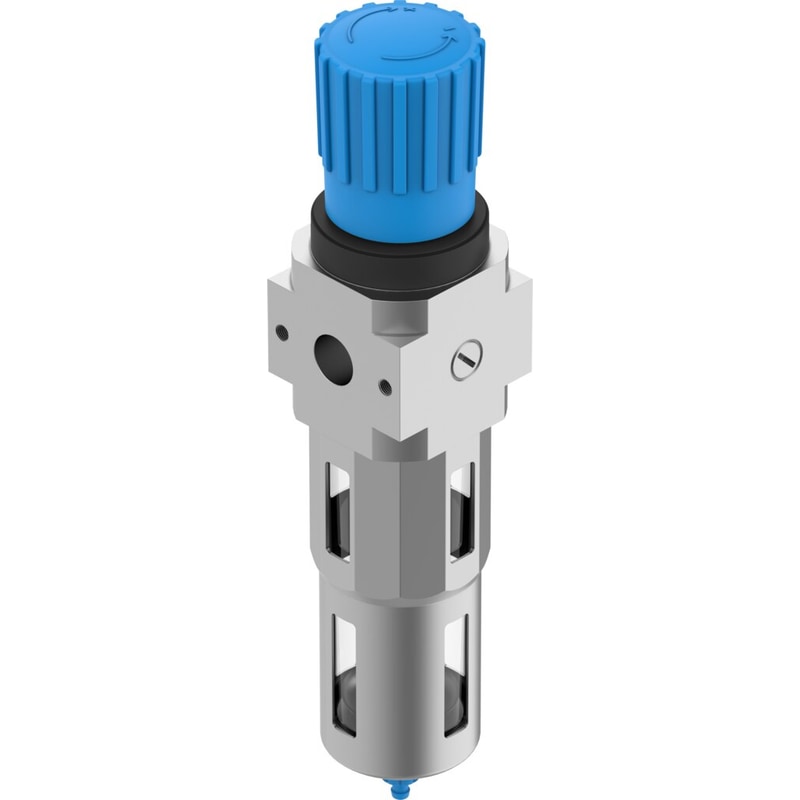

filter regulator LFR-D-MINI-A With metal bowl guard. Size=Mini, Series=D, Actuator lock=Rotary knob with lock, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm
| Size | Mini |
|---|---|
| Series | D |
| Actuator lock | Rotary knob with lock |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | fully automatic |
| Design structure | Filter regulator without pressure gauge |
| Max. condensate volume | 0.748 oz(l) |
| Bowl guard | Metal bowl guard |
| Pressure gauge | Prepared for G1/8 |
| Operating pressure | 28 ... 180 Psi |
| Pressure regulation range | 6.9 ... 180 Psi |
| Max. pressure hysteresis | 3 Psi |
